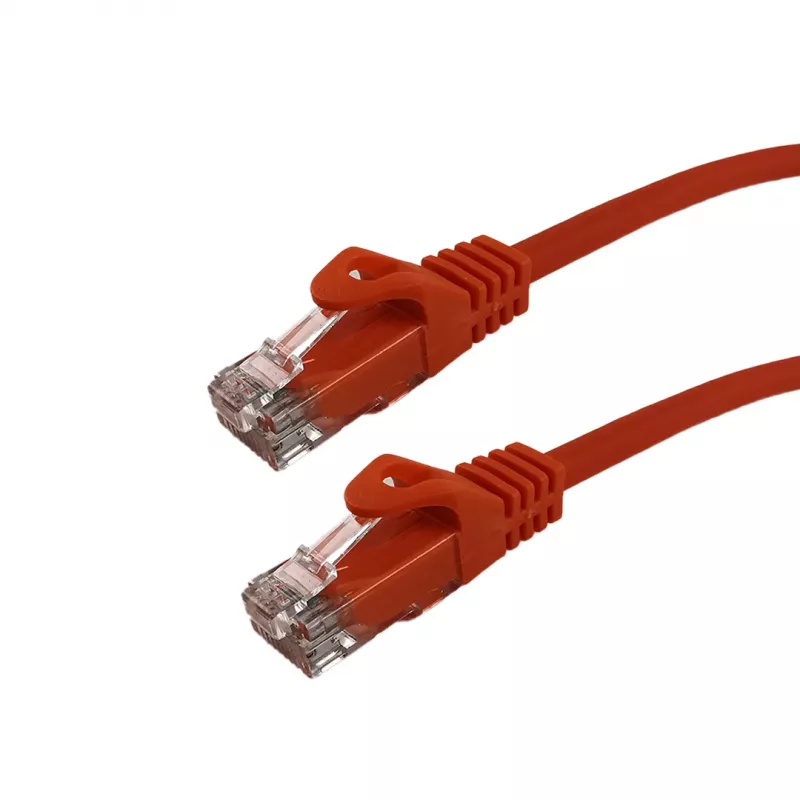

Grafenthal CAT6 U/UTP LSZH patchkabel 1,00m oranje

The Grafenthal CAT6 U/UTP LSZH Patch Cable in orange is a high-performance network cable designed for reliable Gigabit Ethernet connectivity. Manufactured with pure copper conductors and low smoke zero halogen (LSZH) jacket, it ensures safety and durability in various environments.

Advantages

This patch cable offers excellent signal integrity and reduced crosstalk thanks to its U/UTP shielding and 26 AWG stranded copper conductors. The LSZH jacket minimizes toxic fumes in case of fire, making it ideal for public and commercial spaces. Gold-plated RJ45 connectors ensure corrosion resistance and stable connections.

Suitable for

• Local Area Network (LAN) connections in offices, data centers, and home networks
• Connecting computers, switches, routers, and other network devices
• Applications requiring compliance with fire safety standards (IEC 60332-1)

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6
• Shielding: U/UTP (Unshielded)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.00 meter
• Color: Orange
• Connectors: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 1 Gbps (1000BASE-T)
• Bandwidth: Up to 250 MHz
• Conductor Gauge: 26 AWG
• Number of Conductors: 8 (4 twisted pairs)
• Connector Plating: Gold-plated
• Compliance: RoHS, CE
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6 compatible devices and avoid sharp bends or kinks during installation. Ensure proper cable management to maintain signal quality.
