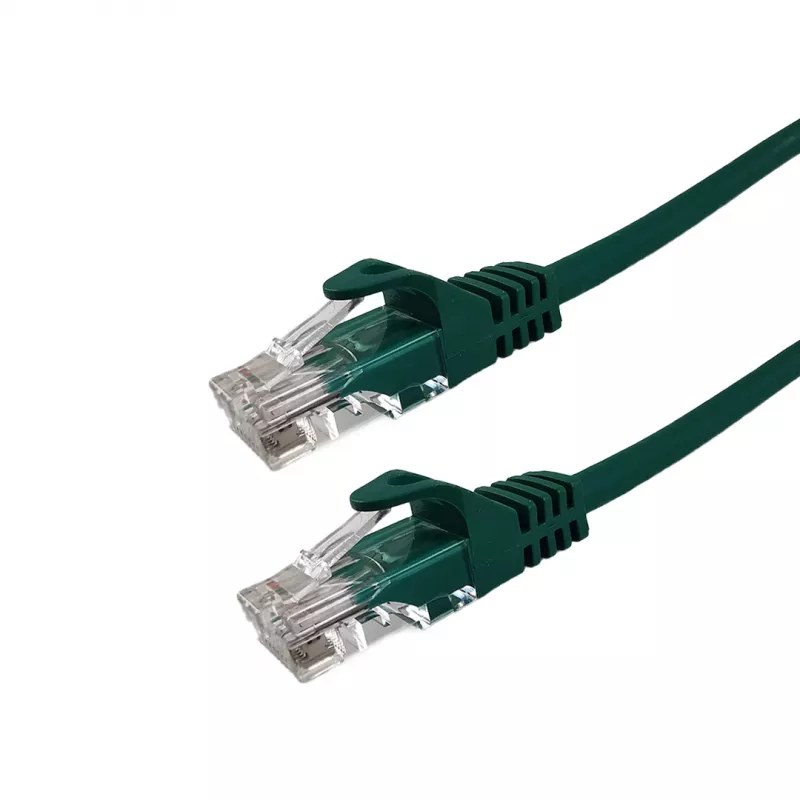

Grafenthal CAT6A U/UTP LSZH patchkabel 5,00m groen

The Grafenthal CAT6A U/UTP LSZH Patch Cable is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections in data centers, enterprise networks, and home installations. With a length of 5.00 meters and a vibrant green color, this cable combines durability with easy identification.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its U/UTP (unshielded twisted pair) design and 26 AWG copper conductors. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by emitting minimal smoke and no toxic halogens when exposed to fire. Gold-plated RJ45 connectors provide corrosion-resistant, reliable connections.

Suitable for

• 10GBASE-T networks requiring Cat6a performance
• Data center patching and server connections
• Home and office LAN setups
• Applications where fire safety is critical (LSZH jacket)

Key specifications

• Cable Type: Network Patch Cable
• Category: CAT6A (Category 6A)
• Shielding: U/UTP (Unshielded)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 5.00 m
• Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568-B.2
• Number of Pairs: 4 Twisted Pairs
• Connector Plating: Gold-plated contacts
• Fire Safety Standard: IEC 60332-1
• Operating Temperature: -20°C to 60°C
• Certifications: RoHS Compliant

Recommendations

For optimal performance, use this cable with Cat6a compatible switches and network cards. Ensure proper cable management to avoid kinking or sharp bends. This cable is backward compatible with Cat6, Cat5e, and Cat5 networks.
