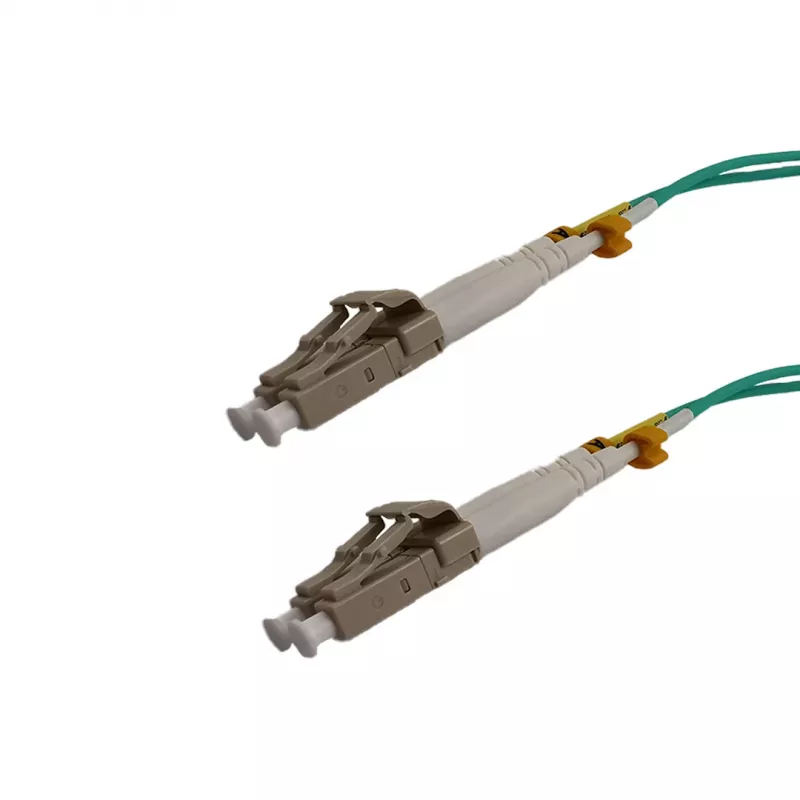

Grafenthal glasvezelkabel OM3 LC/UPC-LC/UPC LSZH 1,00m Aqua Blue

The Grafenthal Optical Fibre Cable OM3 LC/UPC-LC/UPC LSZH 1.00m Aqua Blue is a high-performance multimode duplex patch cable designed for reliable 10 Gbps data transmission in data centers, enterprise networks, and storage area networks. Manufactured to stringent standards, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This OM3 fibre optic cable offers superior bandwidth and speed, supporting 10 Gigabit Ethernet over distances up to 300 meters. The LC/UPC connectors provide low back reflection and secure connection. The LSZH jacket ensures safety in enclosed spaces by emitting minimal smoke and no halogen in case of fire.

Suitable for

• Data center cabling infrastructure
• Enterprise network patching
• Storage Area Network (SAN) connections
• Local Area Network (LAN) backbone

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Mode: Multimode
• Fibre Type: OM3
• Connector A: LC/UPC
• Connector B: LC/UPC
• Cable Length: 1.0 meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Aqua Blue
• Fibre Count: 2 (Duplex)
• Core/Cladding Diameter: 50/125 µm
• Maximum Data Rate: 10 Gbps
• Bandwidth (850nm): 2000 MHz·km
• Bandwidth (1300nm): 500 MHz·km
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 7.5 mm (Dynamic)
• Cable Diameter: 2.0 mm (each sub-unit)
• Standards Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed network applications requiring reliable and low-loss connections.
