GRAFENTHAL Glasvezelkabel OM3 LC/UPC-LC/UPC LSZH 30m Aqua Blue

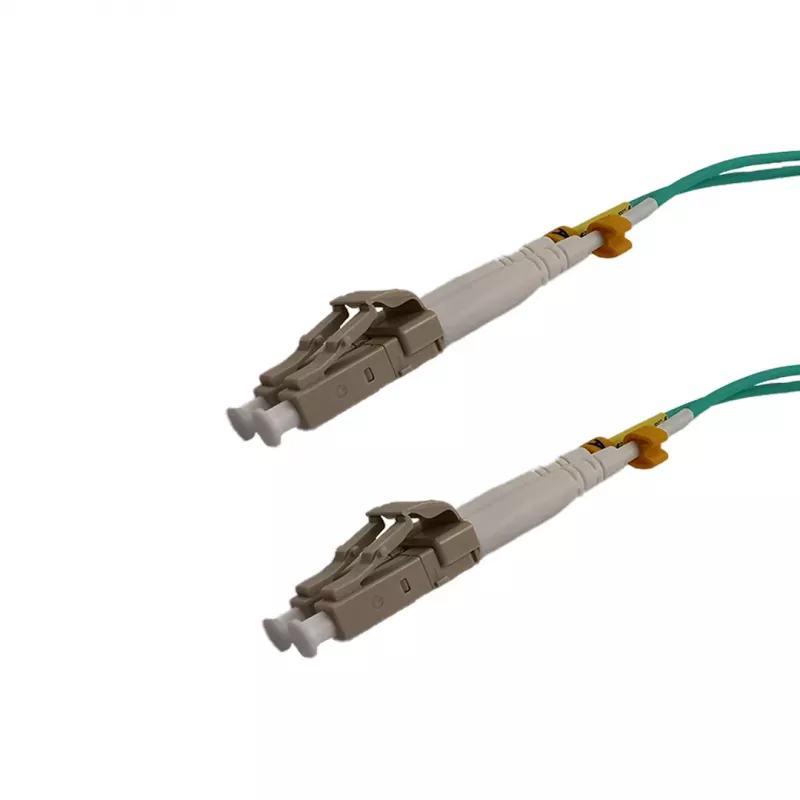

The GRAFENTHAL Optical Fibre Cable OM3 is a high-performance duplex multimode patch cable designed for reliable 10 Gigabit Ethernet connections in indoor environments. With LC/UPC connectors on both ends and a 30-meter length, this cable ensures low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the aqua blue colour indicates OM3 fibre type for easy identification.

Advantages

This cable offers superior bandwidth and data transmission rates, supporting 10GbE over distances up to 300 meters. The duplex design allows for simultaneous bidirectional communication, making it ideal for high-speed networks. The LSZH jacket reduces toxic smoke emissions in case of fire, ensuring compliance with safety regulations.

Suitable for

• Data centre cabling
• Enterprise network infrastructure
• Telecommunications rooms
• High-speed server connections
• Storage area networks (SAN)

Key specifications

• Fibre Type: OM3 Multimode (50/125 µm)
• Connectors: LC/UPC to LC/UPC
• Cable Length: 30 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Aqua Blue
• Data Rate: 10 Gigabit Ethernet
• Wavelengths: 850nm / 1300nm
• Bandwidth: 2000 MHz·km at 850nm
• Attenuation: 3.0 dB/km (850nm), 1.0 dB/km (1300nm)
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and patch panels. Ensure proper handling and installation to maintain low loss characteristics. Suitable for use in structured cabling systems requiring high bandwidth and reliability.
