Grafenthal Glasvezelkabel OM3 LC/UPC-LC/UPC LSZH 50m Aqua Blue

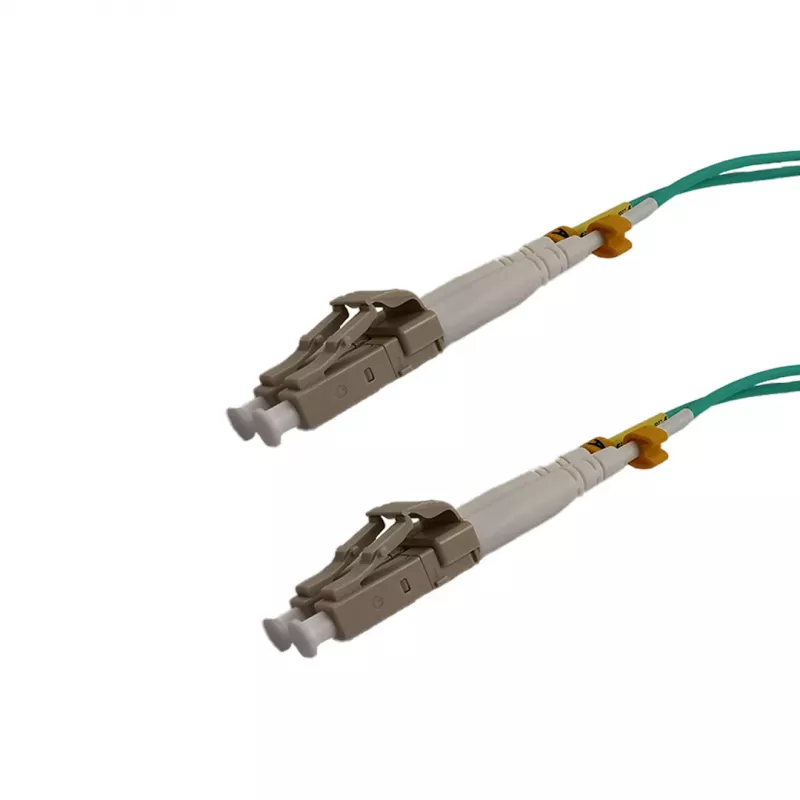

The Grafenthal Optical Fibre Cable OM3 is a high-performance duplex multimode patch cable designed for reliable high-speed data transmission in data centers, enterprise networks, and telecommunications. With LC/UPC connectors on both ends and a 50-meter length, this cable supports 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR4 applications. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the aqua blue colour indicates OM3 fibre type.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥50 dB), ensuring excellent signal integrity. The duplex LC/UPC connectors provide secure and easy connections. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it ideal for public and commercial buildings. The 50/125 µm core/cladding diameter is optimized for OM3 multimode applications.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications
• High-speed data transmission up to 100 Gbps
• 10GBASE-SR, 40GBASE-SR4, 100GBASE-SR4 networks

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Type: Multimode (OM3)
• Core/Cladding: 50/125 µm
• Connectors: 2x LC/UPC Duplex
• Length: 50 meters
• Jacket: LSZH, Aqua Blue
• Number of Fibres: 2
• Insertion Loss: ≤0.3 dB typical
• Return Loss: ≥50 dB typical
• Bandwidth: 1500 MHz·km @850nm, 500 MHz·km @1300nm
• Operating Temperature: -20°C to +70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is not suitable for single-mode applications. Store in a clean, dry environment.
