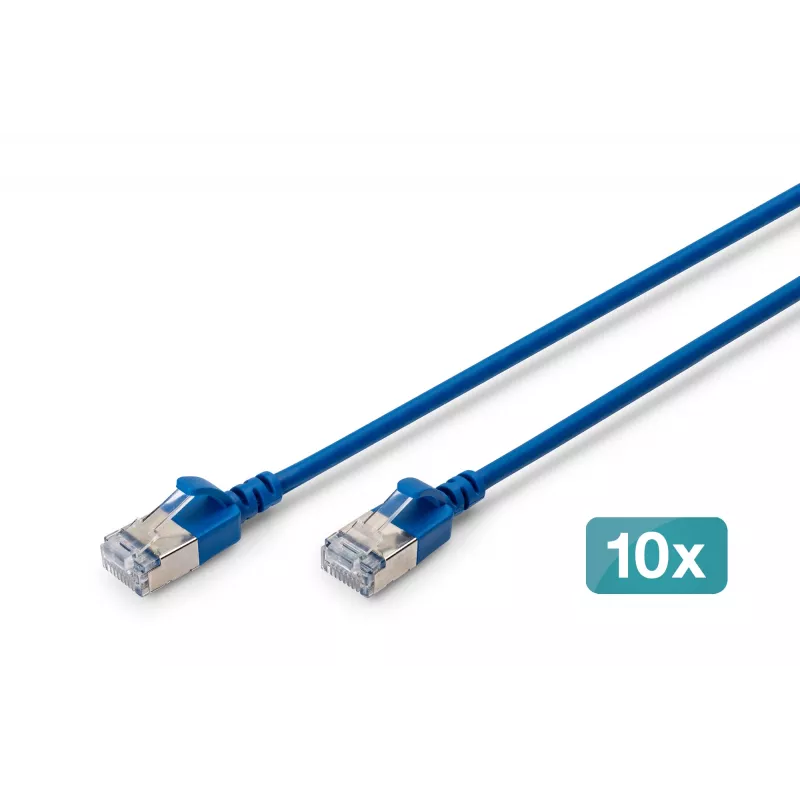

DIGITUS CAT 6A F-FTP Slim patchkabel, 0,3 m, blauw, 10-pack, LSZH, 10 Gbps, RJ45

When rack density is at a premium, a standard patch cable's bulk can turn cable management into a nightmare. This DIGITUS CAT 6A F-FTP Slim Patch Cable solves that with an ultra-thin 3.6 mm outer diameter—nearly half the size of conventional Cat 6A cables—while still delivering full 10 Gigabit Ethernet performance. The 0.3 m length is perfect for short interconnects between adjacent ports on patch panels, switches, and servers, and the blue jacket makes circuit identification quick and error-free. Each pack includes 10 individually bagged cables, ready for professional installation.

Highlights

• Cat 6A performance up to 500 MHz, supporting 10GBASE-T
• F/FTP shielding: each pair individually foil-wrapped plus overall foil for superior alien crosstalk resistance
• Slim 3.6 mm diameter for high-density patching and improved airflow
• LSZH (Low Smoke Zero Halogen) jacket for safety in public and enclosed spaces
• Gold-plated RJ45 connectors (50µ) for reliable, corrosion-resistant connections
• Pack of 10 cables, each 0.3 m, blue

In daily use

In a busy data center or wiring closet, these slim cables bend easily around corners and fit into tight spaces where standard cables would kink or block airflow. The stranded 28 AWG copper conductors (7-strand) offer flexibility without sacrificing signal integrity. The F/FTP construction—pairs in metal foil plus an overall foil shield—provides excellent protection against EMI and crosstalk, ensuring stable 10 Gbps links even in electrically noisy environments. The LSZH jacket emits low smoke and no halogen gases in case of fire, making it suitable for offices, schools, and hospitals. The blue color aids in network segmentation and troubleshooting.

Full specifications

• Brand: DIGITUS
• Model: DK-1632-A-003S-B-10
• MPN: DK-1632-A-003S-B-10
• EAN: 4016032504290
• Cable type: Slim Ethernet patch cable
• Cable standard: Cat 6A
• Shielding: F/FTP (Foiled Foiled Twisted Pair)
• Length: 0.3 m
• Colour: Blue
• Connector type: RJ45 (8P8C), gold-plated (50µ)
• Conductor material: Copper
• Conductor gauge: AWG 28/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Outer diameter: 3.6 mm
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Cable construction: PIMF (Pairs in Metal Foil)
• Halogen free: Yes
• Flame retardant standard: IEC 60332-1
• Operating temperature: -20°C to +60°C
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C
• Backward compatible with Cat 6, Cat 5e, Cat 5
• Quantity per pack: 10

Final note

For high-density 10G networks where space and safety matter, the DIGITUS slim Cat 6A patch cable delivers performance without the bulk—now in a convenient 10-pack.
