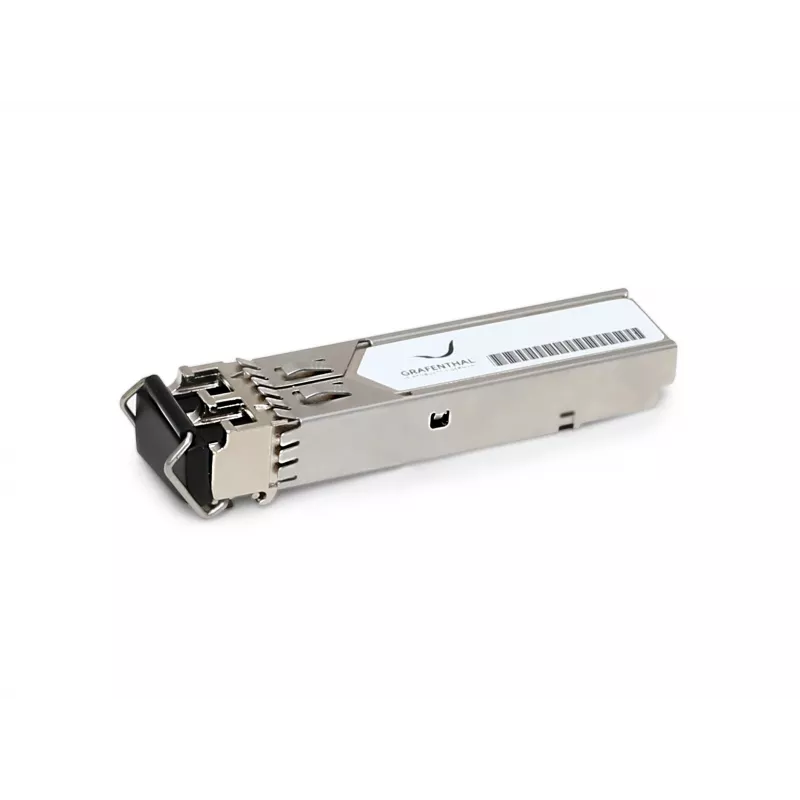

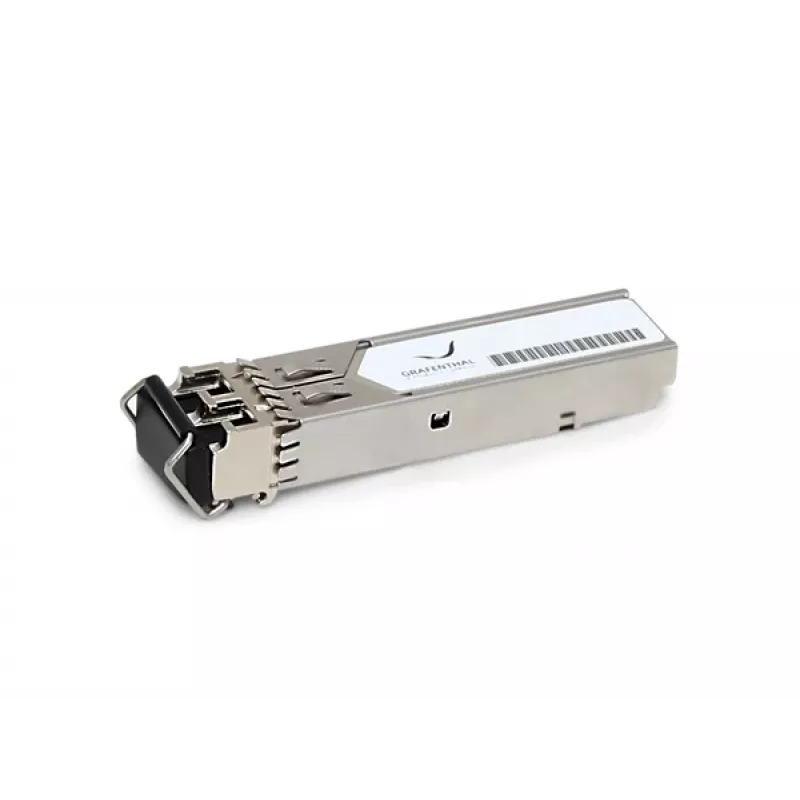

Grafenthal transceiver 10G SFP+ LC LR 10KM SMF compatibel met HPE Aruba J9151D

The Grafenthal TRANSCEIVER 10G SFP+ LC LR 10KM SMF is a high-performance, hot-swappable transceiver module designed for 10 Gigabit Ethernet applications. It is fully compatible with HPE Aruba J9151D and provides reliable, long-distance connectivity over single-mode fiber.

Advantages

This transceiver offers cost-effective, MSA-compliant performance with digital diagnostic monitoring (DDM) for real-time optical parameters. Its low power consumption (<1.0W) and commercial temperature range (0°C to 70°C) make it ideal for enterprise networks.

Suitable for

• 10 Gigabit Ethernet connections in data centers and enterprise networks
• Long-reach links up to 10 km over single-mode fiber
• Replacement or expansion of HPE Aruba J9151D compatible systems

Key specifications

• Form Factor: SFP+
• Data Rate: 10.3125 Gbps (10GbE)
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Duplex
• Interface: 10GBASE-LR
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0 W
• Hot-Swappable: Yes
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure proper cleaning of LC connectors. This transceiver is a direct replacement for HPE Aruba J9151D.
