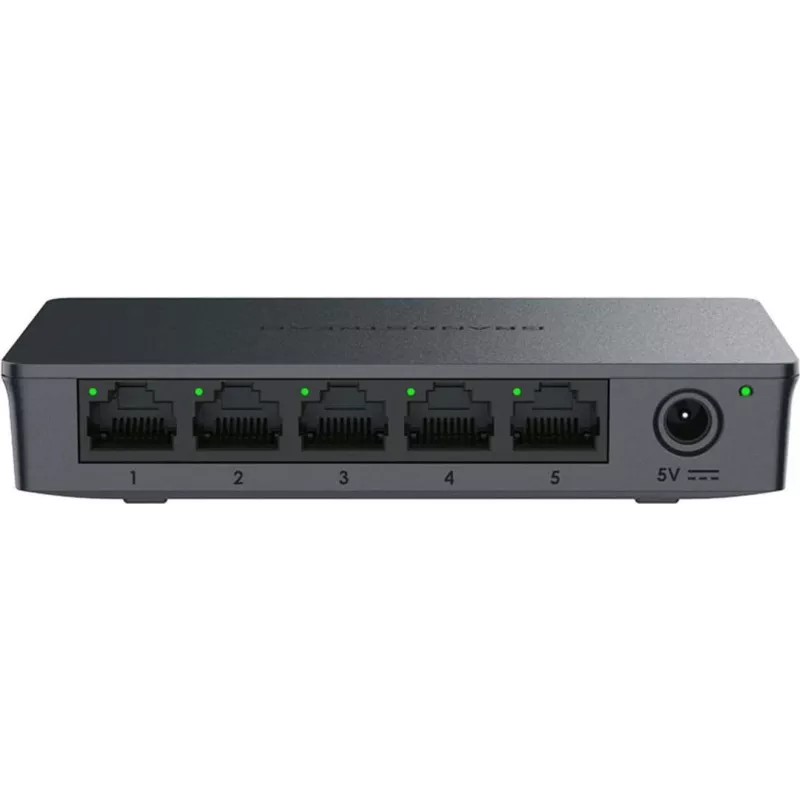

Grandstream GWN7700 5-poorts Gigabit Ethernet unmanaged switch

Expand your network with plug-and-play simplicity. The Grandstream GWN7700 is an unmanaged 5-port Gigabit Ethernet switch that delivers high-speed connectivity for small offices, home offices, and workgroups. No configuration is needed—just connect your devices and enjoy reliable, wire-speed performance.

Who is it for

Ideal for users who need to connect multiple wired devices such as computers, printers, IP phones, and network-attached storage without the complexity of managed switches. Its compact desktop design fits neatly into any workspace.

Main features

• 5 Gigabit Ethernet ports (10/100/1000 Mbps) for high-speed connections
• Unmanaged plug-and-play operation—no setup required
• 10 Gbps switching capacity and 7.44 Mpps forwarding rate for smooth data flow
• Fanless design for silent operation
• Desktop or wall-mountable with durable plastic housing
• Jumbo frame support up to 9 KB for efficient large data transfers
• LED indicators for power and link/activity status

Specifications

• Ports: 5 x Gigabit Ethernet (10/100/1000 Mbps)
• Switch type: Unmanaged
• PoE support: No
• Switching capacity: 10 Gbps
• Forwarding rate: 7.44 Mpps
• MAC address table: 2K entries
• Jumbo frame support: Up to 9 KB
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Power supply: External power adapter (5V DC, 1A)
• Max power consumption: 2.5 W
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Operating humidity: 10% to 90% non-condensing
• Dimensions: 100 x 100 x 28 mm (W x D x H)
• Weight: 0.2 kg

Tips

For best performance, use Cat5e or higher Ethernet cables to ensure Gigabit speeds. The switch can be placed on a desk or mounted on a wall using the built-in mounting holes. Connect the included power adapter and your devices—no software installation is needed.
