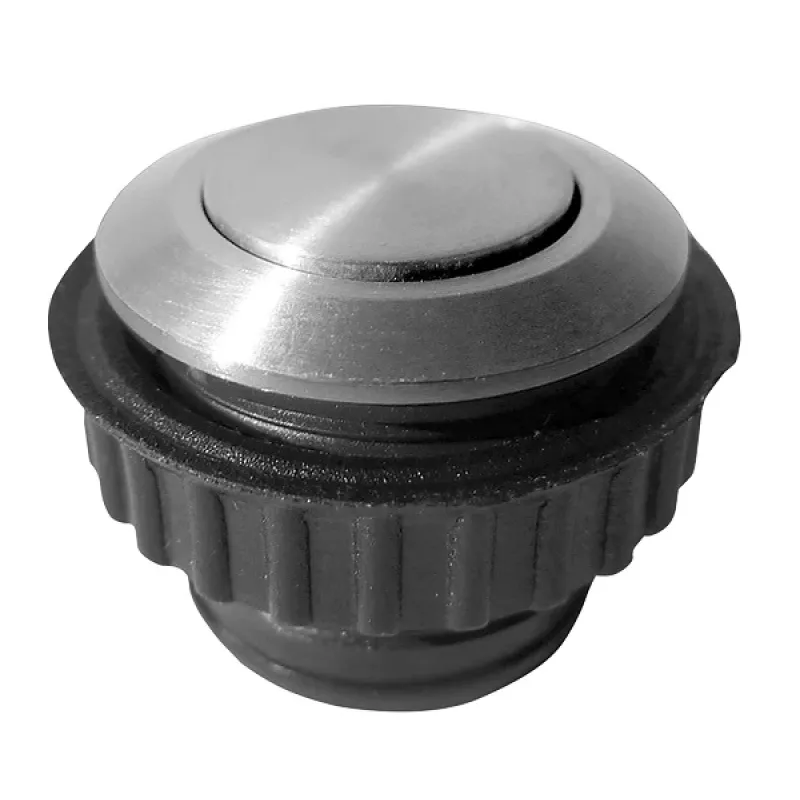

Grothe PROTACT 650 VA roestvrijstalen deurbelknop, inbouw, 1 NO contact, IP54 62070

The PROTACT 650 VA bell push button stands out for its solid stainless steel front plate, making it a durable choice for both indoor and outdoor use. Unlike plastic alternatives, the V2A stainless steel surface resists wear and corrosion, maintaining a clean look over time.

Highlights

• Flush-mounted design with a slim installation depth of approximately 20 mm
• Single normally open (NO) contact for reliable switching
• Front plate dimensions: 85 x 85 mm
• Screw terminals for secure wiring
• No illumination, keeping the design minimal

In daily use

This push button is suited for doorbell systems where a robust, weather-resistant switch is required. The IP54 rating protects against dust and splashing water, so it can be installed in covered outdoor areas. With a maximum switching capacity of 24 V AC/DC and 1.5 A, it works with common low-voltage bell circuits.

Full specifications

• Material: Stainless Steel (V2A)
• Mounting type: Flush-mounted
• Protection class: IP54
• Contact type: 1 normally open (NO)
• Max. switching voltage: 24 V AC/DC
• Max. switching current: 1.5 A
• Front plate dimensions: 85 x 85 mm
• Installation depth: approx. 20 mm
• Colour: Stainless steel
• Connection type: Screw terminals
• Illumination: No
• Number of buttons: 1
• Series: PROTACT 650 VA

Final note

The PROTACT 650 VA combines a sleek stainless steel finish with practical flush mounting for a clean installation.
