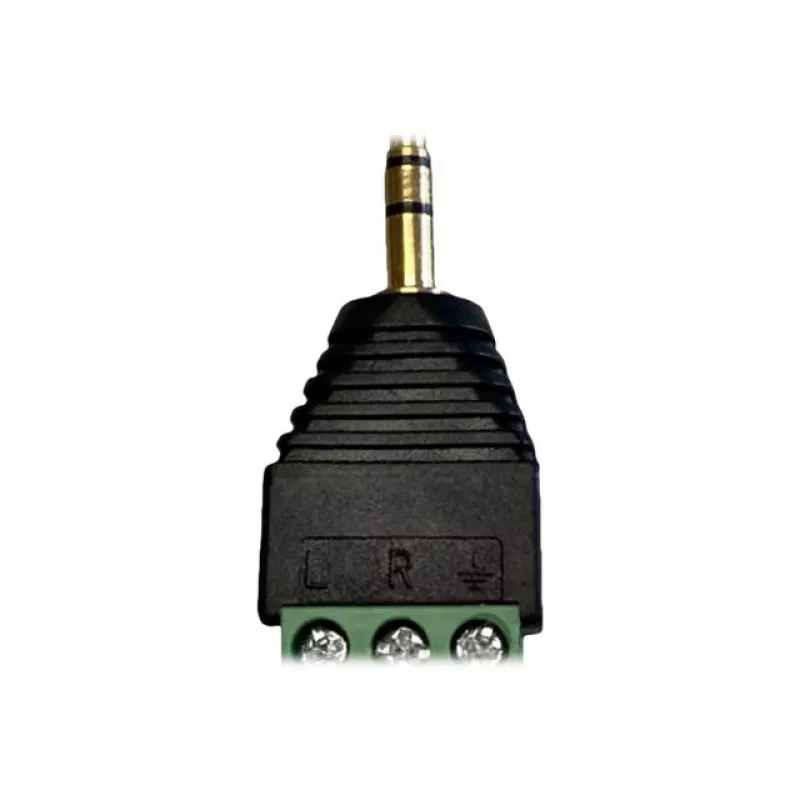

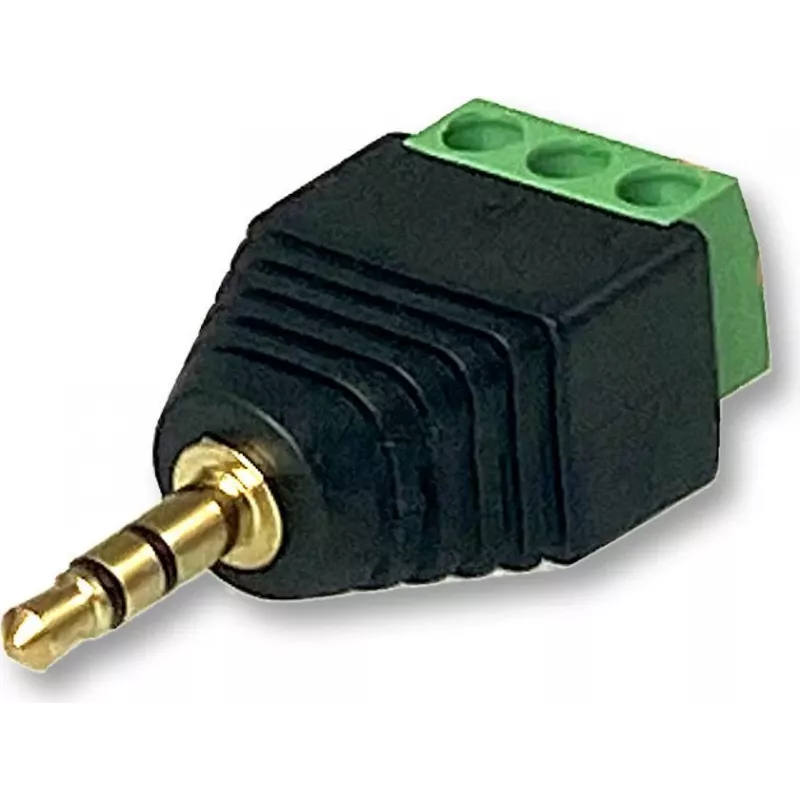

GÜDE 7960 3,5mm 3-polige jackstekker-adapter

Repairing or building audio cables with a 3.5mm stereo jack often means soldering directly to a plug that is too small to handle comfortably. The GÜDE 7960 solves that by giving you a dedicated 3-pole jack plug with a solder termination, so you can create a durable connection without struggling with tiny contacts.

Who is it for

This connector is for anyone who assembles or repairs audio cables—technicians, hobbyists, or musicians who need a reliable 3.5mm stereo plug. It fits standard 3.5mm stereo sockets and accepts cable diameters up to 6mm.

Main features

• 3-pole (TRS) stereo configuration
• Male 3.5mm jack plug, straight form factor
• Solder termination for secure wiring
• Metal housing with nickel-plated contacts
• Black insulator, cable entry up to 6mm

Specifications

• Connector type: 3.5mm jack plug
• Gender: Male
• Number of poles: 3-pole (TRS stereo)
• Termination method: Solder
• Housing material: Metal
• Contact plating: Nickel-plated
• Insulation material: Plastic
• Form factor: Straight
• Mounting type: Cable mount
• Application: Audio cable assembly, repair

Tips

For a clean solder joint, tin both the wire and the contact before joining. Use a heat-shrink sleeve over the cable entry to provide strain relief and protect the connection.
