Guil ABZ-07/E-N - snelbevestigingsklem voor buizen met buiten-Ø van 38,0-51,0 mm

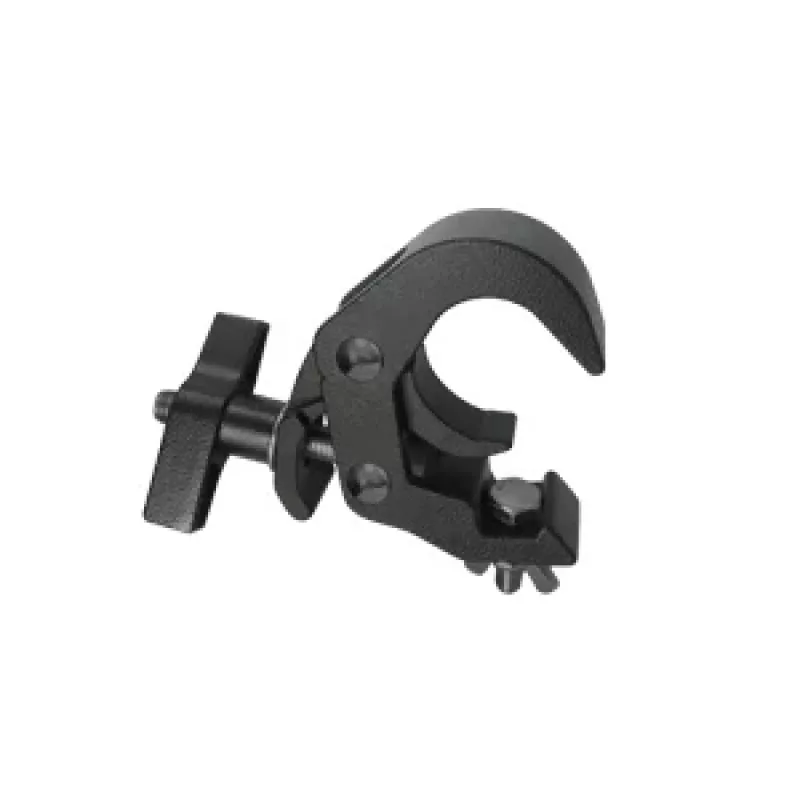

Stage technicians and event riggers often need to mount fixtures on trusses or pipes quickly, without tools and without compromising safety. The GUIL ABZ-07/E-N quick fastening clamp is built for exactly that: a robust half-coupler that grips pipes with an outer diameter from 38.0 mm to 51.0 mm, secured by a wing nut for fast, reliable attachment. Its aluminium alloy body keeps weight down while providing corrosion resistance for long-term use in professional environments.

Key specifications

• Compatible pipe diameter: 38.0 mm – 51.0 mm
• Material: Aluminium alloy
• Fastening mechanism: Quick release with wing nut
• Mounting type: Half coupler
• Connection point: M10 bolt hole for fixture attachment
• Finish: Polished
• Colour: Silver
• Installation: Tool-free / quick installation
• Corrosion resistance: Yes

Why choose it

The clamp's quick-release design saves valuable setup time during load-ins and changeovers. Its polished aluminium surface is both durable and easy to clean, while the wing nut allows for secure tightening by hand. The M10 bolt hole offers a standard connection point for a wide range of lighting fixtures, speakers, or other rigging accessories.

Ideal use cases

• Stage lighting and truss mounting
• Event technology and temporary installations
• Professional rigging in theatres, concert venues, and studios
• Mounting equipment on pipes or tubes within the specified diameter range

Good to know

Load capacity and safety certification are not specified by the manufacturer; consult GUIL or a qualified rigger for specific load ratings and compliance before use. The clamp is intended for professional rigging applications where proper inspection and maintenance are performed.
