GUSTAV KLAUKE GMBH KLAU perskabelschoen 103R8 16mm² M8 galvanisch vertind

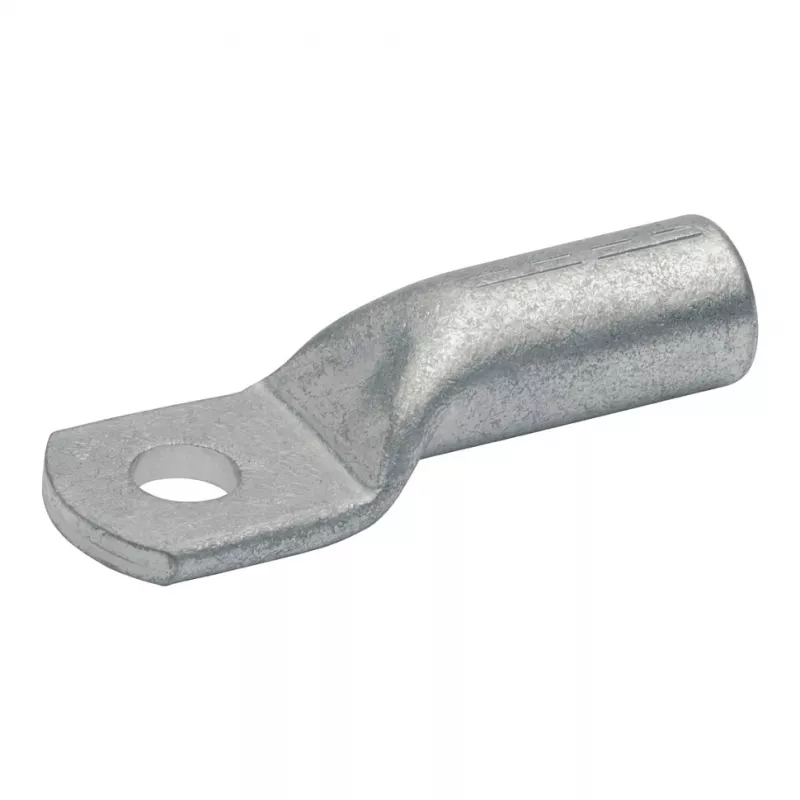

Electricians and panel builders rely on the KLAU 103R8 crimp cable lug for secure, low-resistance terminations in power distribution and control cabinets. This uninsulated ring terminal is engineered for fine-stranded and multi-stranded copper conductors up to 16 mm², with an M8 bolt hole for reliable mechanical fastening.

Key specifications

• Conductor cross-section: 16 mm²
• Bolt hole diameter: M8 (8 mm)
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Galvanically tinned for corrosion resistance
• Standard: DIN 46235
• Connection type: Ring terminal / eyelet
• Product type: Crimp cable lug / compression cable lug
• Application: For fine-stranded and multi-stranded conductors
• Inspection hole: Yes
• Operating temperature range: -55°C to +150°C
• Voltage rating: Up to 1000 V (depending on insulation)
• RoHS compliant: Yes
• Colour: Silver (tin-plated)
• Barrel type: Standard (uninsulated)
• Number of bolt holes: 1
• Shape: Straight
• Manufacturer series: KLAU 103R
• Corrosion protection: High (due to tin plating)
• Installation method: Crimp

Why choose it

The galvanic tin plating delivers excellent corrosion protection, ensuring long-term performance even in demanding environments. The electrolytic copper base provides superior conductivity, while the inspection hole allows visual confirmation of full conductor insertion before crimping. Compliance with DIN 46235 guarantees dimensional accuracy and consistent quality.

Ideal use cases

• Terminating stranded copper conductors in electrical panels
• Creating secure connections to busbars, circuit breakers, and contactors
• Industrial machinery and control system wiring
• Power distribution in switchgear and motor control centers

Good to know

Use a suitable crimping tool with the correct die size for 16 mm² lugs to achieve a gas-tight connection. The uninsulated barrel requires additional insulation, such as heat-shrink tubing, if electrical isolation is needed. The lug is RoHS compliant and suitable for a wide temperature range from -55°C to +150°C.
