Hager extra veld 10+2+2 PLE voor BKE-A midden geplaatst KU8XCHE

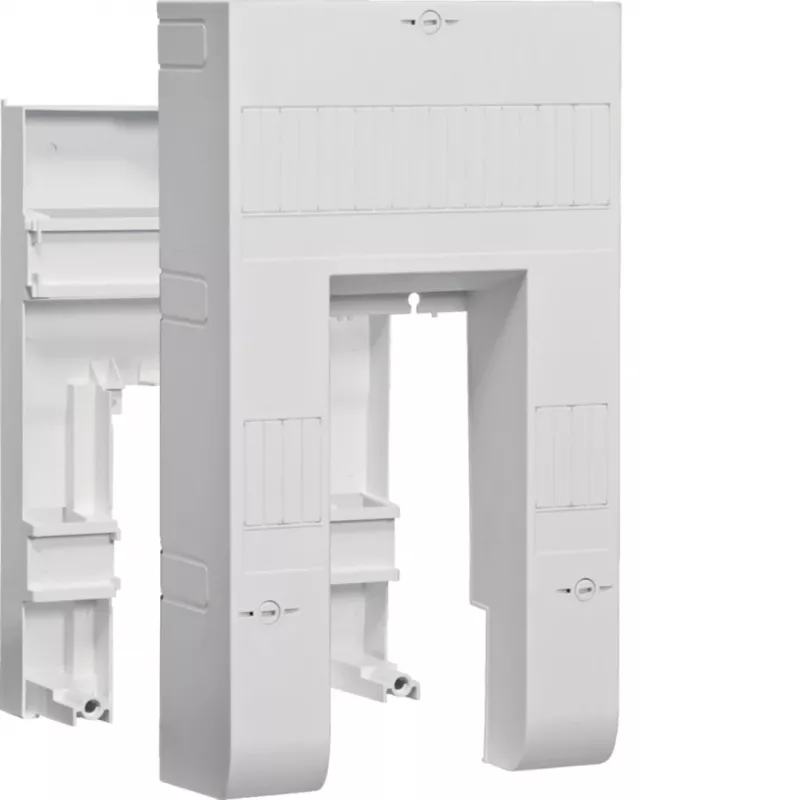

The Hager KU8XCHE is a high-quality additional compartment designed for use with BKE-A mounting plates, providing 10+2+2 module units (PLE) for smart meter gateways (SMGW) and communication modules. This centrally seated extension space is ideal for expanding meter cabinets or distribution boards, ensuring reliable and organized installation.

Advantages

This compartment offers flexible expansion for smart metering systems, with a transparent cover for easy inspection. Its screw mounting ensures secure attachment, while the light grey (RAL 7035) plastic construction provides durability and a professional appearance. The design complies with DIN VDE 0603-1 and DIN 43870-1 standards, guaranteeing safety and performance.

Suitable for

• Smart meter gateway (SMGW) installations
• Communication module housing
• eHZ (electronic household meter) systems
• Meter cabinet and distribution board expansion

Key specifications

• Number of Module Units (PLE): 10+2+2
• Mounting Plate Compatibility: BKE-A
• Mounting Position: Centrally seated
• Material: Plastic
• Colour: Light Grey (RAL 7035)
• Protection Class: IP2XC (when installed)
• Number of DIN Rails: 1
• Number of Mounting Plates: 2
• With Transparent Cover: Yes
• Flammability Class: V2 (UL94)
• Operating Temperature: -5 to +40 °C
• Halogen-free: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure compatibility with your existing BKE-A mounting plate and enclosure. Professional installation is recommended to maintain IP2XC protection.
