InLine kooimoeren-set M6 20 kooimoeren + 20 ringen + 20 schroeven

Cage nut set for installing 19" network devices in enclosures. The set is intended for mounting devices into square openings of latching rails and contains the parts required to secure equipment according to the rail's orientation.

Advantages

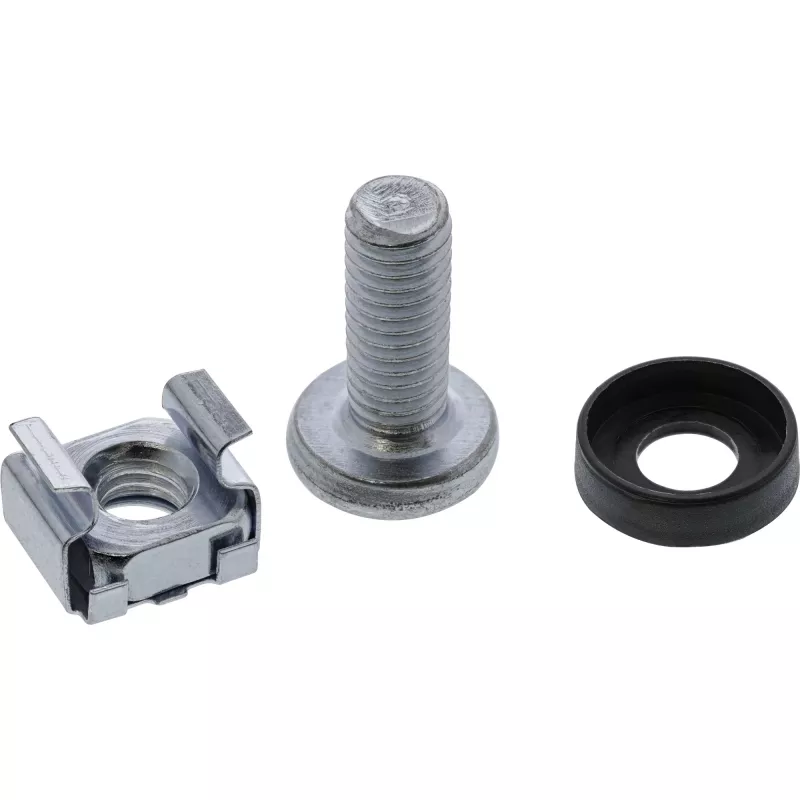

The InLine Cage Nut Set M6 (01950A) includes 20 M6 cage nuts, 20 washers and 20 screws made of metal and plastic, offering a combination of strength and flexibility. Each nut has a length of 16 mm and a 6 mm thread diameter, providing a reliable fit for standard sheet metal rack rails. The components are suitable for repeated installation and removal without deforming the mounting points.

Suitable for

• Mounting 19" network switches and patch panels in server racks
• Securing routers, patch panels and small servers in enclosure latching rails
• Sheet metal rack installations requiring M6 threaded fasteners

Key specifications

• Brand: InLine
• Model / MPN: 01950A
• EAN: 4043718236985

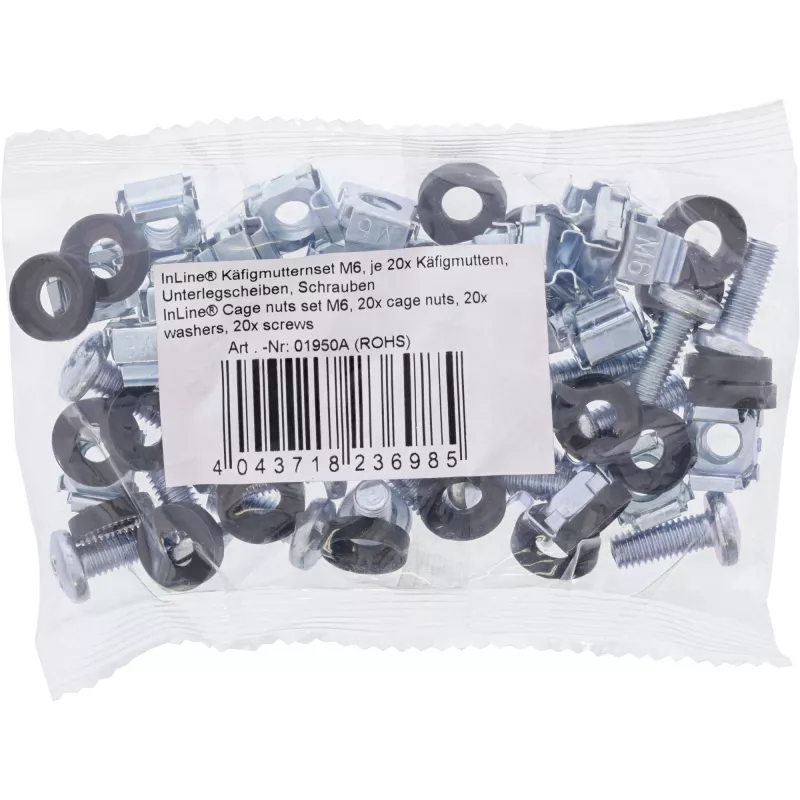

• Contents: 20 M6 cage nuts, 20 washers, 20 screws
• Thread diameter: 6 mm (M6)
• Nut length: 16 mm
• Materials: metal and plastic
• Application: sheet metal / 19" rack latching rails

How to use

Insert each cage nut into the square opening of the rack's latching rail with the cage oriented to match the device U (rail orientation). Secure the nut in place until it clips into the opening, then position the device and fasten using the supplied screws and washers through the equipment's mounting holes. Tighten screws to a firm, hand-controlled torque appropriate for M6 fasteners to avoid thread damage.

Recommendations

Use the supplied washers to distribute load and reduce wear on sheet metal rails. Inspect cage nuts for secure clipping before final installation and avoid over-torquing screws to prevent stripping the threads.
