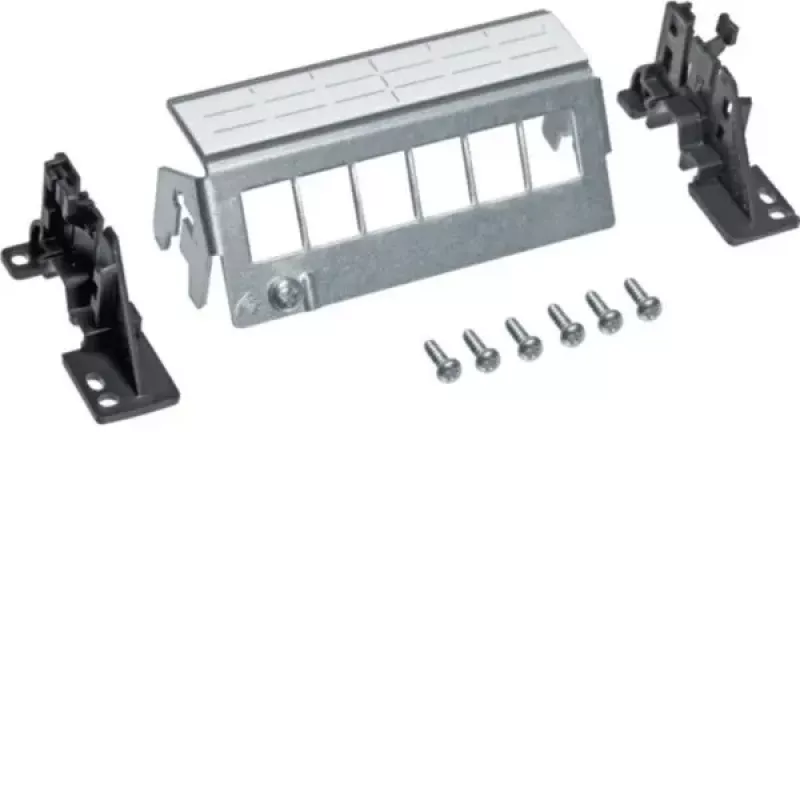

Hager FZ06MK 6-poorts Cat.6a afgeschermd Keystone patchpanel, grijs

Structured cabling in distribution boards and multimedia enclosures often becomes a tangle of loose cables and unreliable connections. The Hager FZ06MK solves this by providing a compact, DIN-rail mountable patch panel that consolidates up to six network drops into a neat, shielded interface.

Who is it for

Electricians, network installers, and building technicians who need to terminate solid copper network cables in a structured, serviceable way. It suits small offices, residential distribution boards, and industrial control cabinets where space is limited and performance matters.

Main features

• Six shielded Cat.6a RJ45 keystone modules pre-installed
• Supports 10 Gigabit Ethernet up to 500 MHz
• Tool-less or LSA-Plus compatible IDC termination for solid wire AWG 22-24
• Metal housing for durability and shielding effectiveness
• DIN rail or mounting plate installation for distribution boards

Specifications

• Port count: 6
• Connector type: RJ45, shielded
• Category rating: Cat.6a
• Data transfer rate: 10 Gbps
• Frequency range: up to 500 MHz
• Cable compatibility: solid wire AWG 22-24
• Housing material: metal
• Colour: grey
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Tips

Use this panel with Cat.6a or Cat.7 solid-core installation cable. Keep cable twists as close to the termination point as possible to maintain performance. The metal housing should be bonded to the enclosure ground for optimal shielding.
