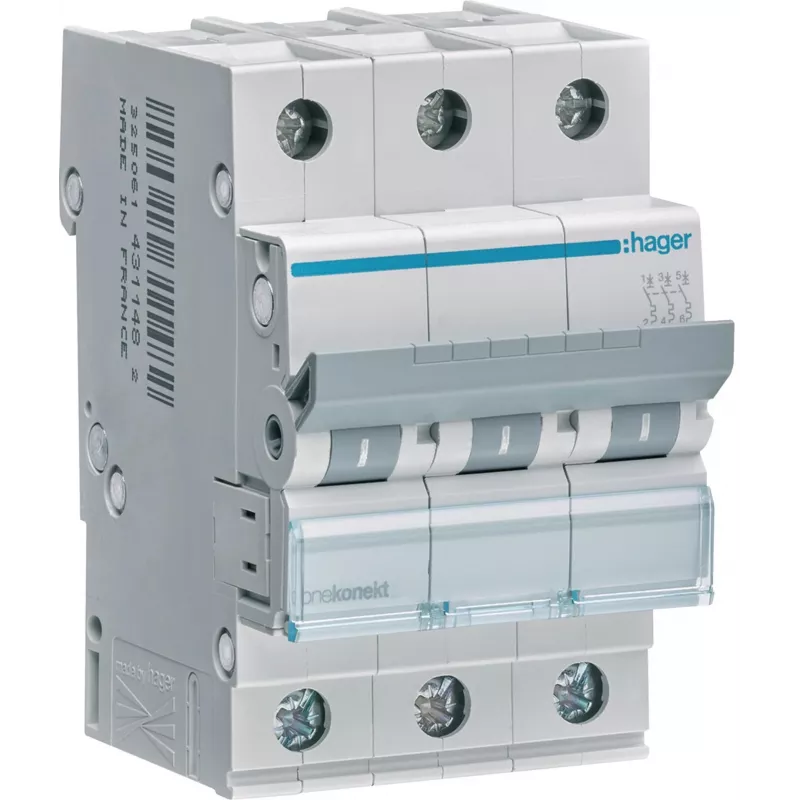

Hager MCN316E 3-polige installatieautomaat, 16 A, C-karakteristiek, 6 kA

The Hager MCN316E is a three-pole miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential and commercial installations. With a C tripping curve and 16 A rated current, it responds quickly to short circuits while tolerating normal inrush currents, making it a solid choice for lighting and socket circuits.

Highlights

• 3-pole MCB, 16 A rated current, C curve
• 6 kA short-circuit breaking capacity per EN 60898-1
• 400 V AC rated voltage, 50/60 Hz
• Compact 3-module width for DIN rail mounting
• Screw terminals accept solid conductors from 1 to 25 mm² and flexible from 1 to 16 mm²

In daily use

The breaker mounts easily onto standard DIN rails and offers clear status indication via its toggle handle. Its compact 3-module size saves space in distribution boards while providing dependable protection for three-phase circuits. The screw terminals ensure secure and vibration-resistant connections, and the IP20 terminal protection keeps accidental contact at bay.

Full specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3
• Rated Current: 16 A
• Tripping Curve: C
• Short-Circuit Breaking Capacity: 6 kA
• Rated Voltage (AC): 400 V
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Terminal Type: Screw Terminals
• Connection Capacity Solid: 1–25 mm²
• Connection Capacity Flexible: 1–16 mm²
• Degree of Protection Terminals: IP20
• Degree of Protection Front: IP40
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Standard: EN 60898-1
• Modular Spacing: 3 modules
• Operating Temperature: –25 to 70 °C
• Energy Limitation Class: 3

Final note

This Hager MCB combines robust construction with precise tripping behaviour, ensuring your installation stays safe and compliant. Trust the MCN316E for dependable circuit protection.
