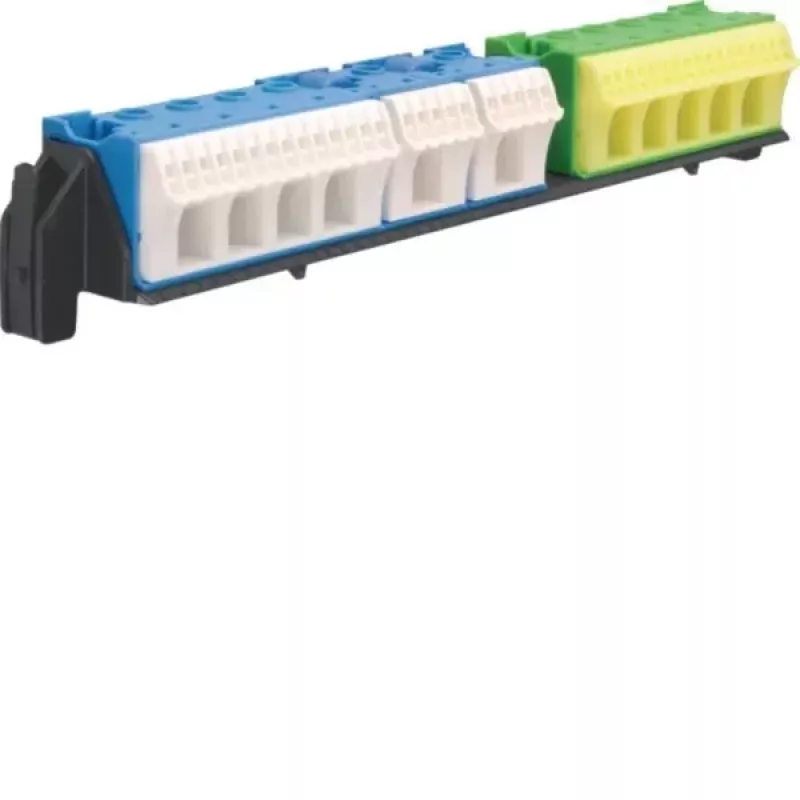

Hager PE/N-klemmenblok 4-rij VZ464

The HAGER VZ464 is a high-quality PE/N terminal block designed for professional electrical installations. With a 4-row configuration, it provides 16 protective earth (PE) and 16 neutral (N) connections, ensuring reliable distribution and grounding in control cabinets and distribution boards. Manufactured by Hager, a trusted brand in electrical infrastructure, this terminal block complies with IEC/EN 60947-7-1 standards for safety and performance.

Advantages

Robust screw terminal technology ensures secure and durable connections for conductors up to 25 mm². The compact design saves space on DIN rails, while the clear color coding (green-yellow for PE, blue for N) simplifies installation and maintenance. Rated for 63 A and 400 V AC, it handles demanding loads with ease.

Suitable for

• Industrial control panels
• Building distribution systems
• Power supply and grounding applications
• Commercial electrical installations

Key specifications

• Brand: HAGER
• Model: VZ464
• Type: PE/N terminal block, 4-row
• Number of PE connections: 16
• Number of N connections: 16
• Connection technology: Screw terminal
• Conductor cross-section (rigid/flexible): 2.5 - 25 mm² (main), 2.5 - 16 mm² (branch)
• Rated current: 63 A
• Rated voltage: 400 V AC
• Mounting: DIN rail (TS35) or direct mounting
• Housing material: Polyamide (PA6)
• Conductive material: Brass / Steel
• Color: Grey housing, green-yellow PE, blue N
• Protection class: IP20 (when installed)
• Operating temperature: -25 to +40 °C
• Standards: IEC/EN 60947-7-1

Recommendations

For optimal performance, use with appropriate fuses or circuit breakers. Ensure proper tightening torque as per manufacturer guidelines. Suitable for use in dry indoor environments.
