Hager univers Z compleet paneel 6 meterposities 3-fasig 63A 1350mm ZL53X8T

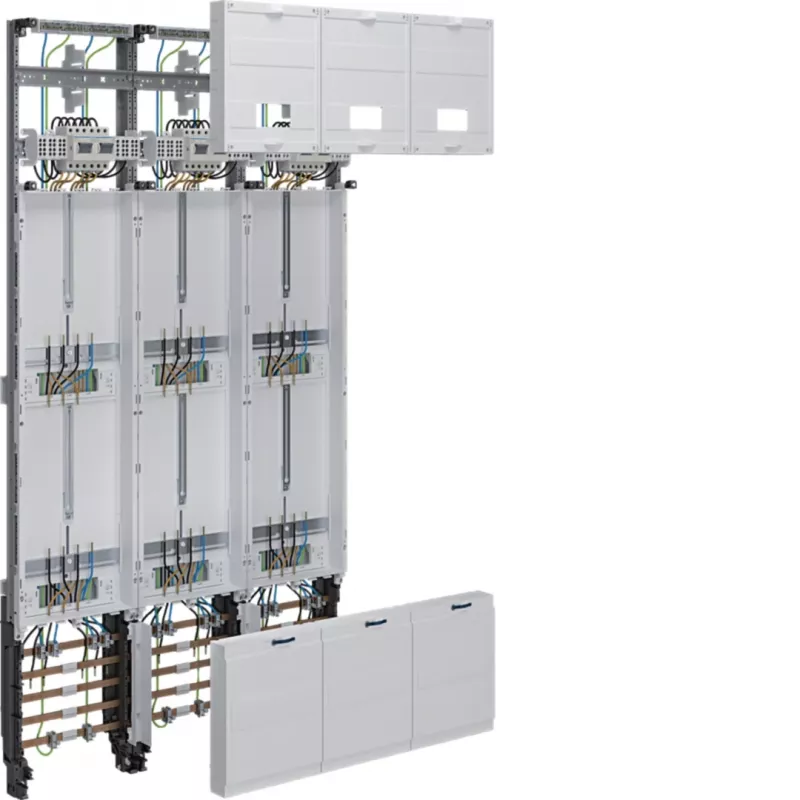

The Hager univers Z Complete Panel ZL53X8T is a pre-configured distribution board designed for residential and commercial electrical installations. It offers 6 meter positions in a 3-phase configuration, rated at 63A and 230/400V AC, making it ideal for multi-dwelling units or small commercial buildings. The panel is part of the Hager univers Z system, ensuring seamless integration with compatible enclosures and accessories.

Advantages

This complete panel simplifies installation by providing a ready-to-use solution with integrated busbar system, screw terminals, and space for main circuit breakers. The galvanized sheet steel construction ensures durability, while the IP2XC protection class guarantees safety in standard indoor environments. The panel supports both eHZ and conventional meters, offering flexibility for various metering requirements.

Suitable for

• Residential electrical installations requiring multiple meter points
• Small commercial buildings with 3-phase power distribution
• Upgrades or new installations in the Hager univers Z system

Key specifications

• Number of Meter Positions: 6
• Phase Configuration: 3-phase (3P)
• Rated Current (In): 63 A
• Rated Voltage (Un): 230/400 V AC
• Busbar System: 5-pole
• Main Busbar Cross-section: 12 x 5 mm
• Overall Height: 1350 mm
• Overall Width: 250 mm
• Overall Depth: 160 mm
• Meter Type Compatibility: eHZ and conventional meters
• Connection Technology: Screw terminals
• Integrated Distribution Space: Yes, with multiple rows (e.g., 3x 12PLE)
• Main Circuit Breaker Positions: Yes, for 3-pole main circuit breakers
• Material: Galvanized sheet steel
• Protection Class (Field): IP2XC (when installed in appropriate enclosure)
• Standards Compliance: DIN VDE 0603-1, DIN 43870-1
• Terminal Blocks: PE/N terminals included
• Mounting Type: For flush-mounted or surface-mounted cabinets (univers Z system)

Recommendations

For optimal performance, pair this panel with Hager univers Z enclosures and accessories. Ensure proper installation by a qualified electrician in compliance with local regulations.
