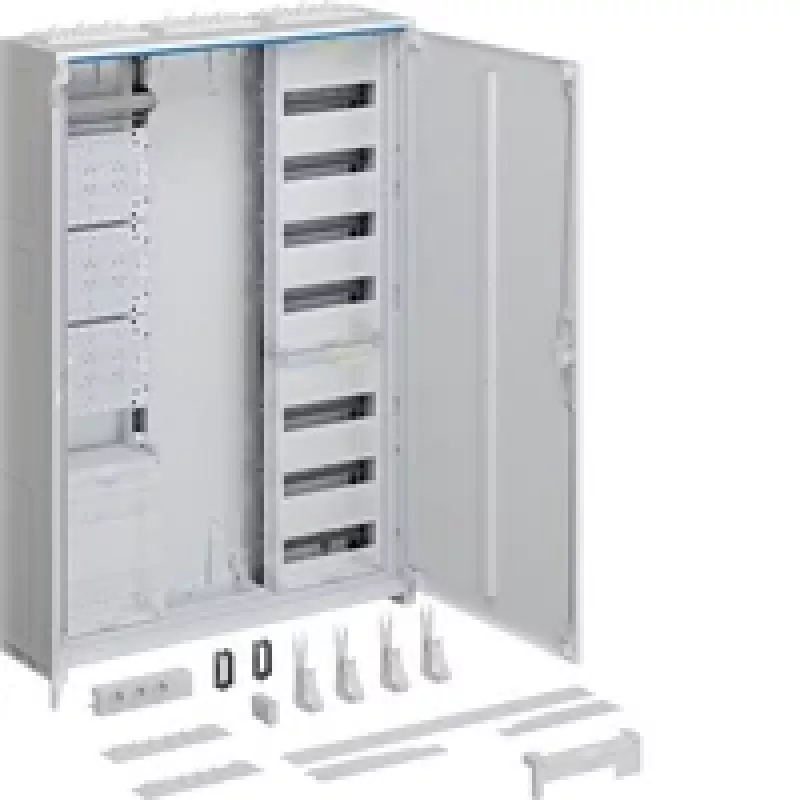

Hager universZ multimedia systeemkast ZB33VT7APZ2 1100x800mm IP44 VF-7rh/APZ

The Hager universZ Multimedia System Cabinet ZB33VT7APZ2 is a high-quality enclosure designed for residential and commercial electrical installations, providing ample space for distribution, metering, and data/communication infrastructure. With an IP44 rating and robust steel construction, it ensures reliable protection in demanding environments.

Advantages

This cabinet offers a versatile solution for integrating power distribution, metering, and multimedia components in a single unit. The lockable steel door with 180° opening angle provides secure and convenient access. The QuickConnect busbar system simplifies wiring, while the integrated APZ field and multimedia field with perforated mounting plate accommodate various devices. Compliance with DIN VDE 0603-1 and VDE-AR-N 4100 ensures safety and reliability.

Suitable for

• Residential electrical distribution and metering
• Commercial building infrastructure
• Data and communication network installations
• Surface or flush mounting in indoor or sheltered outdoor areas

Key specifications

• Product Type: Multimedia System Cabinet
• Series: universZ
• Ingress Protection: IP44
• Protection Class: II (double insulated)
• Mounting: Surface and flush mountable
• Material: Powder-coated steel sheet
• Colour: Traffic White (RAL 9010)
• Nominal Current: Up to 125 A
• Number of Distribution Rows: 7
• Modules per Row: 12
• Integrated APZ Field: Yes
• Integrated Multimedia Field: Yes, with perforated mounting plate
• Door: Steel, lockable (standard profile half-cylinder)
• Door Opening Angle: 180°
• Cable Entry: Top and bottom, pre-punched knockouts
• Busbar System: QuickConnect
• Number of Metering Positions: 1
• PE/N Terminals: Integrated
• Dimensions: 1100 x 800 mm (H x W)
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Recommendations

For optimal performance, ensure proper cable management and use compatible Hager accessories. This cabinet is ideal for new installations or upgrades where a combined power and data enclosure is required.
