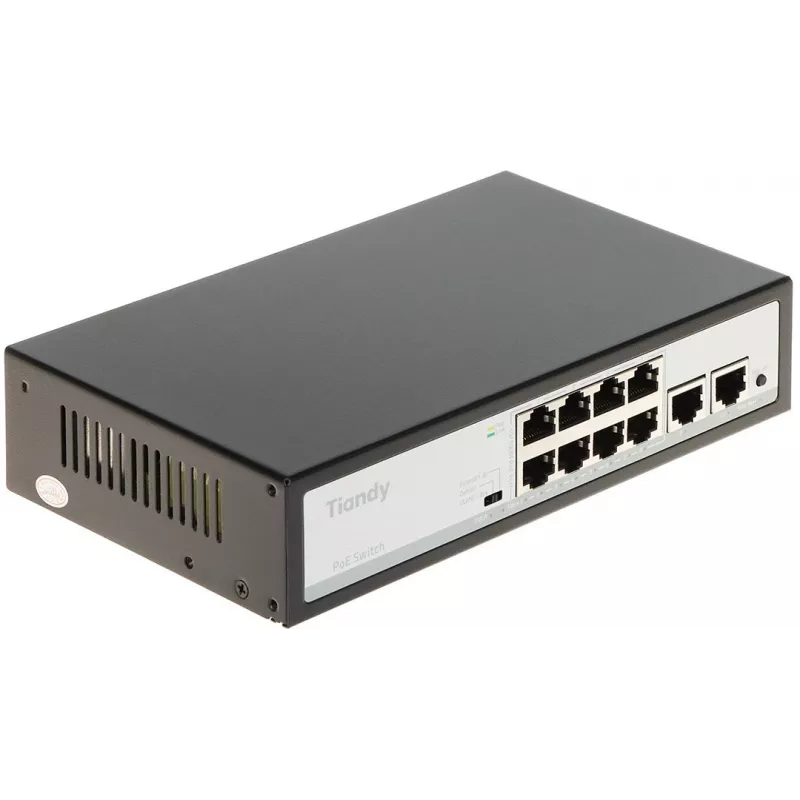

POE LANG TC-P3S010 8-poorts unmanaged PoE+ switch 90W

The POE LANG TC-P3S010 is a reliable 8-port unmanaged PoE+ switch designed for small to medium-sized networks. With 8 Fast Ethernet ports supporting IEEE 802.3af/at PoE, it delivers up to 30W per port with a total power budget of 90W, ideal for powering IP cameras, VoIP phones, and wireless access points. Its plug-and-play design requires no configuration, making it easy to deploy in desktop or wall-mounted installations.

Advantages

This switch offers cost-effective network expansion with integrated Power over Ethernet, eliminating the need for separate power cables for connected devices. The internal power supply ensures stable operation, while LED indicators provide clear status monitoring. Its compact metal housing supports both desktop and wall-mount placement, saving valuable space.

Suitable for

• Small office/home office (SOHO) networks
• IP surveillance systems with PoE cameras
• VoIP phone deployments
• Wireless access point installations
• Retail and hospitality environments

Key specifications

• 8 x 10/100 Mbps Fast Ethernet ports
• 8 PoE+ ports (IEEE 802.3af/at)
• Total PoE power budget: 90W
• Max power per port: 30W
• Switching capacity: 1.6 Gbps
• Forwarding rate: 1.19 Mpps
• MAC address table: 2K entries
• Internal power supply: AC 100-240V
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 70°C
• Humidity: 10% to 90% non-condensing
• Desktop and wall-mountable

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure the total power draw of connected PoE devices does not exceed 90W. This switch is unmanaged and does not support VLANs or QoS; for advanced features, consider a managed switch.
