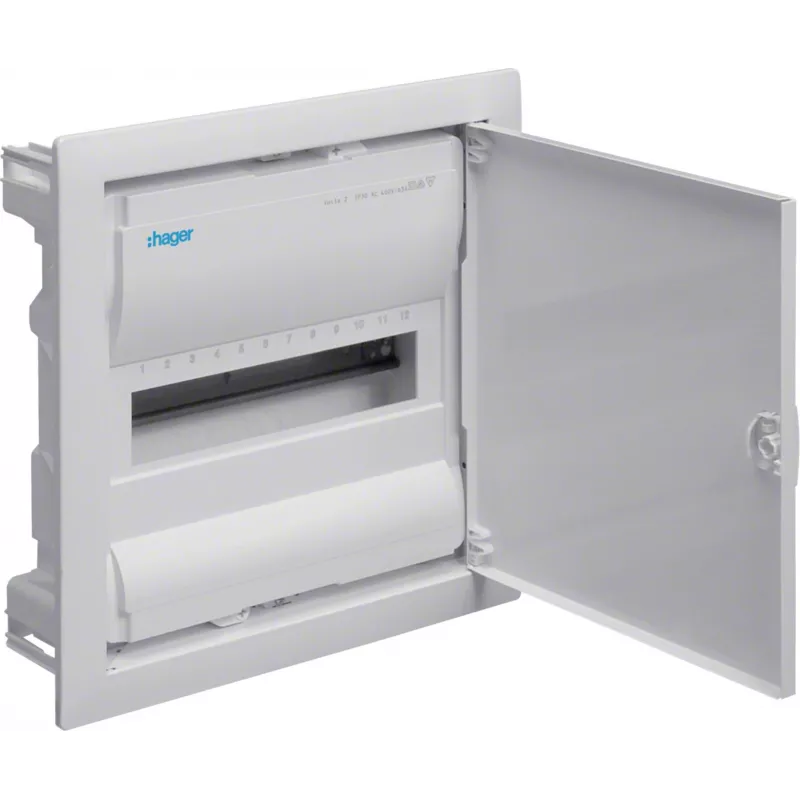

Hager Volta VU12AT inbouwverdeelkast met metalen deur, 1-rijig, 12 modules, IP30, QuickConnect

The Hager Volta VU12AT is a high-quality flush-mounted distribution board designed for residential and commercial electrical installations. Featuring a robust metal door and a durable plastic enclosure, this board offers reliable protection and easy access for up to 12 DIN modules in a single row. With IP30 ingress protection and QuickConnect terminals for N and PE conductors, it ensures safe and efficient wiring.

Advantages

Space-saving design with 1 row and 12 modules, ideal for compact installations. The metal door provides enhanced security and durability, while the QuickConnect terminals simplify installation and maintenance. Compliant with EN 61439-3 standard and tested to 850°C glow wire test for safety.

Suitable for

• Flush-mounted distribution boards in residential buildings
• Commercial electrical systems requiring up to 63 A rated current
• Installations needing IP30 protection against solid objects
• Applications requiring Class II insulation

Key specifications

• Mounting Type: Flush-mounted
• Number of Rows: 1
• Number of Modules (DIN): 12
• Door Material: Steel
• Door Type: Metal, hinged
• Enclosure Material: Plastic (Polystyrene)
• Ingress Protection (IP) Rating: IP30
• Insulation Class: Class II
• Terminal Type: QuickConnect (N/PE)
• Color (Door/Frame): White (RAL 9010)
• Rated Voltage: 400 V AC
• Rated Current (In): Up to 63 A
• Glow Wire Test: 850 °C
• Standard: EN 61439-3
• Installation Depth: 90 mm
• Cable Entry: Pre-punched knockouts
• PE Terminals Capacity: 4 x 16 mm² + 12 x 10 mm²
• N Terminals Capacity: 4 x 16 mm² + 12 x 10 mm²

Recommendations

For optimal performance, ensure proper mounting and wiring according to local electrical codes. Use appropriate cable glands for cable entry. This distribution board is suitable for use with Hager Volta series accessories.
