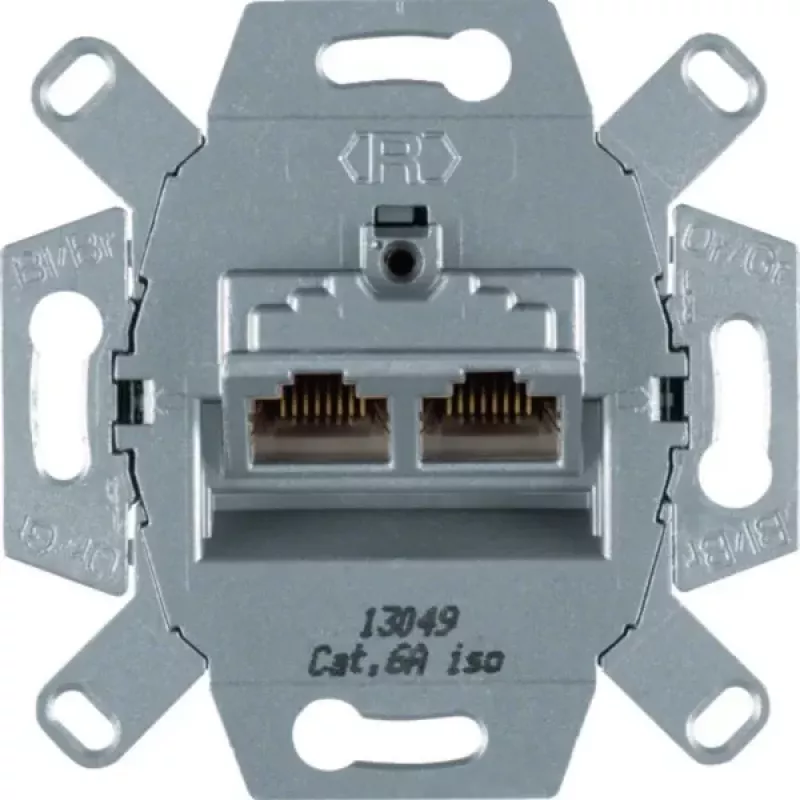

Hager WDF410862 afgeschermde Cat.6A RJ45 data-aansluitmodule, 2-poorts, inbouw, 10G, wit

Modern networks demand reliable, high-speed connectivity, and the Hager WDF410862 shielded Cat.6A RJ45 data outlet module delivers exactly that. This flush-mounted module provides two RJ45 ports in a single unit, enabling 10 Gigabit Ethernet performance for bandwidth-intensive applications. Its shielded design and tool-free LSA+ termination ensure a clean, secure installation that meets rigorous standards.

Who is it for

This module is ideal for electricians, network installers, and IT professionals who need a dependable, high-performance data outlet for commercial or residential projects. It suits environments where 10G speeds, PoE+ support, and robust shielding are essential, such as offices, data centers, schools, and smart homes.

Main features

• Dual RJ45 ports (8P8C) for flexible connectivity
• Cat.6A performance up to 10GBASE-T and 500 MHz bandwidth
• Fully shielded (STP) to minimize electromagnetic interference
• Tool-free LSA+ (IDC) termination for quick, reliable connections
• Supports both T568A and T568B wiring schemes
• PoE+ compatible for powering devices like IP cameras and access points
• Accepts solid (AWG 26-22) and stranded (AWG 26-24) conductors
• Flush-mounted design fits standard 50x50mm central plates and frames
• Durable thermoplastic housing with over 750 mating cycles

Specifications

• Product type: Data outlet module
• Connector type: RJ45 (8P8C)
• Number of ports: 2
• Cabling category: Cat.6A (Category 6A)
• Shielding: Shielded (STP)
• Transmission speed: 10 Gigabit Ethernet (10GBASE-T)
• Frequency bandwidth: 500 MHz
• Installation type: Flush-mounted (UP / In-wall)
• Termination type: LSA+ (IDC) terminals, tool-free connection
• Wiring scheme: T568A and T568B compatible
• Housing material: Thermoplastic
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• PoE support: PoE+ (Power over Ethernet Plus) compatible
• Conductor type compatibility: Solid and stranded
• Solid conductor diameter: AWG 26 - AWG 22
• Stranded conductor diameter: AWG 26 - AWG 24
• Mounting compatibility: Designed for standard central plates and frames (e.g., 50x50mm opening)
• Mating cycles: > 750

Tips

For optimal performance, ensure proper grounding of the shielded module and use Cat.6A or higher rated cables. When terminating, follow the chosen wiring scheme consistently across all connections to avoid signal issues.
