InLine ISDN wandcontactdoos 2x RJ45 bus 2x 8 poort 69988B

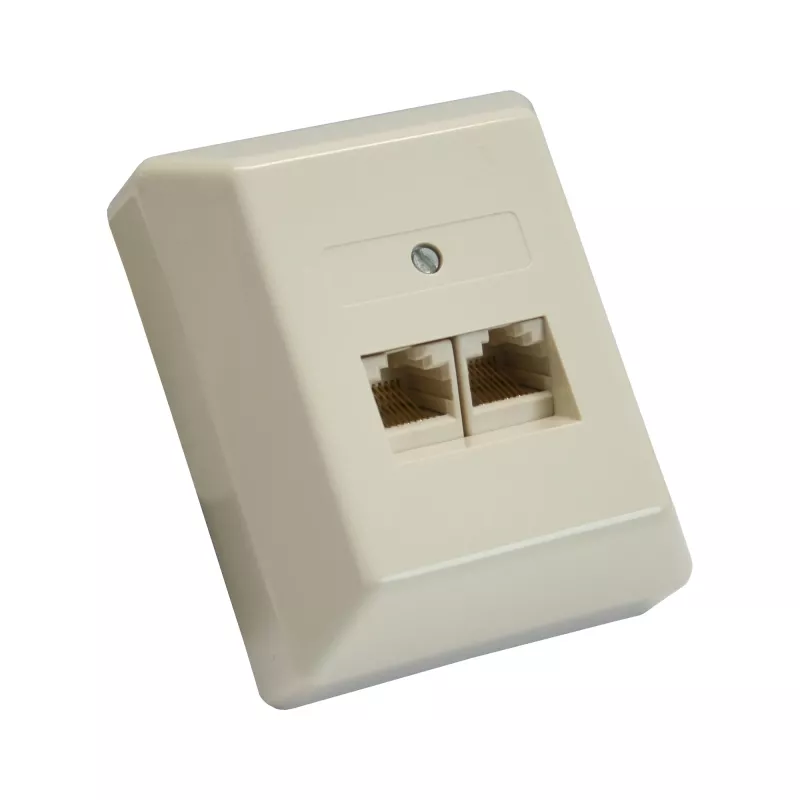

The InLine ISDN Wall Plate (model 69988B) provides two RJ45 female sockets in a compact surface-mount design and supports wiring for two 8‑port connections. Designed for structured cabling, it fits standard wall boxes and offers a durable solution for installing ISDN or Ethernet terminations in homes or offices.

Advantages

The wall plate offers dual RJ45 female connectors for simultaneous terminations, a surface-mount enclosure for easy installation where flush mounting is not available, and screw terminals that simplify cable connection and secure wiring. Its compact footprint and robust construction make it suitable for repeated use and reliable network connectivity.

Suitable for

Key specifications

How to use

Mount the wall plate on a suitable flat surface or onto a compatible surface-mount box. Strip cable jackets and terminate each conductor into the corresponding screw terminals following the device's wiring scheme. Insert and secure patch cables into the RJ45 female sockets to provide network or ISDN connections. Verify connections with appropriate testing tools after installation.

Recommendations

Use the InLine ISDN Wall Plate with standard Cat5e/Cat6 cabling for best results; ensure wiring follows the intended ISDN or Ethernet pinout and tighten screw terminals to prevent loose contacts. Test each connection after termination.
