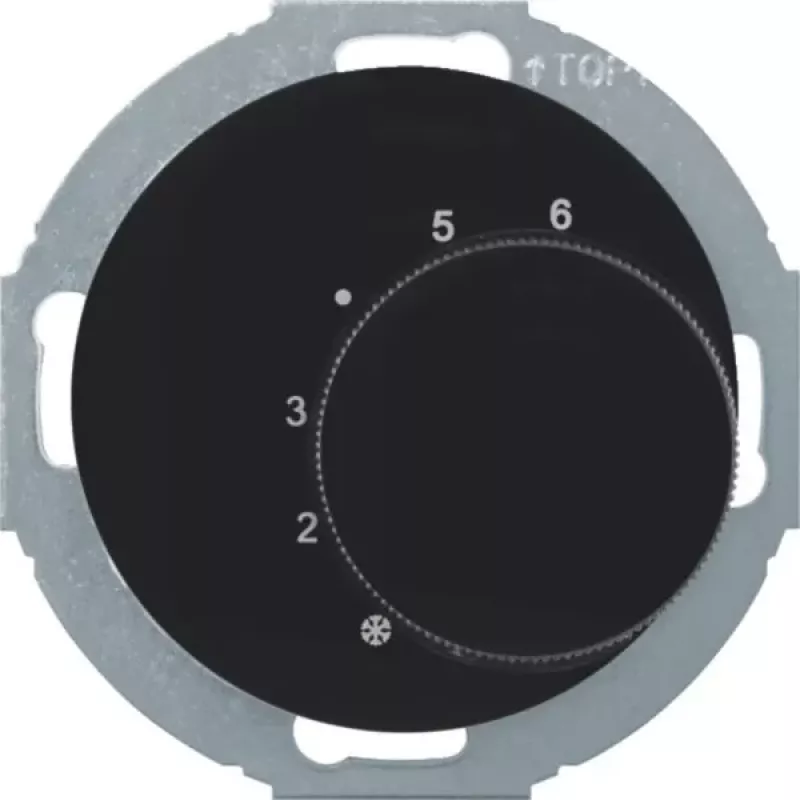

Hager WLN5026BG temperatuurregelaar met wisselcontact en serieschakelaar R.classic zwart

The Hager WLN5026BG is a flush-mounted room temperature controller from the R.classic design line, featuring a mechanical bimetal sensor and a changeover contact (SPDT). It allows precise temperature regulation for heating or cooling systems in residential and commercial environments. The controller is equipped with a series switch for additional functionality and is finished in black (RAL 9005).

Advantages

Reliable mechanical temperature control with a switching differential of approx. 0.5 K ensures stable room climate. The integrated series switch provides extra convenience for controlling connected devices. Easy installation with screw terminals and a timeless design that blends into any interior.

Suitable for

• Heating and cooling systems requiring a simple, mechanical thermostat
• Flush-mounted installations in walls
• Residential and commercial buildings
• Use with resistive loads up to 10 A or inductive loads up to 2 A

Key specifications

• Product Type: Room Temperature Controller
• Control Type: Mechanical (bimetal sensor)
• Mounting: Flush-mounted (IP20)
• Switching Contact: 1 changeover (SPDT)
• Switching Capacity: 10 A resistive, 2 A inductive
• Operating Voltage: 230 V AC, 50/60 Hz
• Temperature Setting Range: +5°C to +30°C
• Switching Differential: approx. 0.5 K
• Colour: Black (RAL 9005)
• Design Line: R.classic
• Material: Thermoplastic
• Connection: Screw terminals
• Operating Mode: Heating or Cooling (selectable)

Recommendations

For optimal performance, ensure proper ventilation around the controller. Suitable for use with standard heating and cooling systems. Always follow local electrical codes during installation.
