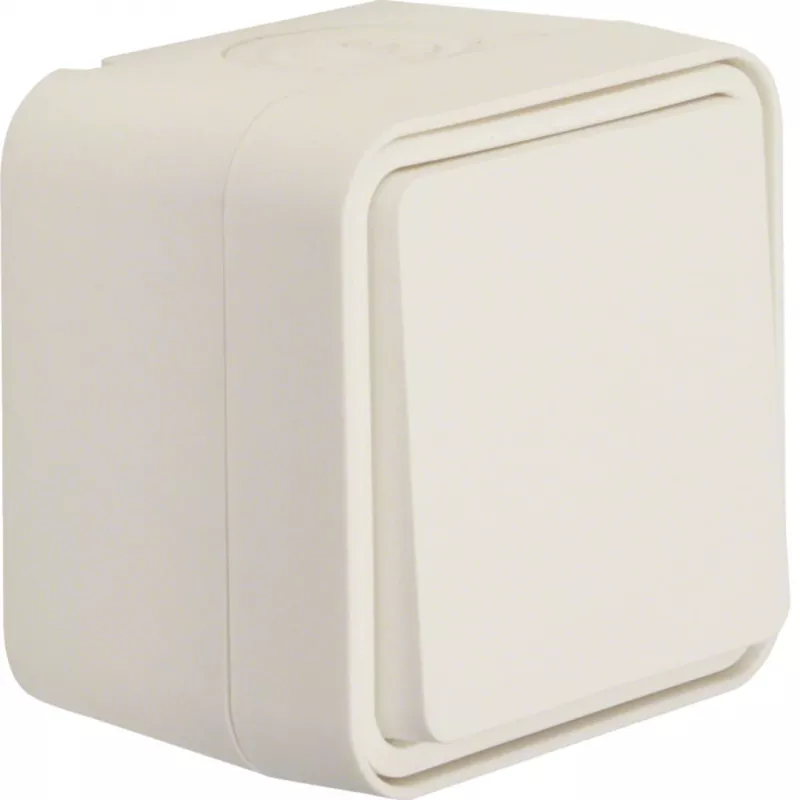

Hager WNC001B opbouw wisselschakelaar W.1 IP55 polarwit

Outdoor and damp environments demand switching solutions that resist moisture and dust. The Hager WNC001B surface-mounted two-way switch delivers reliable control in challenging conditions, with an IP55-rated enclosure that protects against water jets and dust ingress. Its polar white finish blends with modern exteriors while the robust thermoplastic body withstands UV exposure and temperature extremes from -25 to +40 °C.

Who is it for

Electricians and installers working on residential or commercial projects where switches must be surface-mounted on walls, garages, cellars, or outdoor areas. Ideal for new installations or retrofits in the Hager W.1 series system.

Main features

• Two-way (changeover) switching for controlling a light from two locations.
• IP55 protection against dust and water jets, suitable for outdoor use.
• Surface-mounted design for easy installation on any wall surface.
• Polar white (RAL 9010) colour with UV-resistant, halogen-free thermoplastic housing.
• Rated for 10 A / 250 V AC with screw terminals for 1.5–2.5 mm² rigid conductors.

Specifications

• Switch type: Two-way switch (changeover)
• Mounting type: Surface-mounted
• IP protection class: IP55
• Colour: Polar white
• Rated current: 10 A
• Rated voltage: 250 V AC
• Connection type: Screw terminals
• Material: Thermoplastic
• Halogen-free: Yes
• UV-resistant: Yes
• Series: Hager W.1
• Number of rockers: 1
• Terminal capacity: 1.5 - 2.5 mm² (rigid conductor)
• Operating temperature range: -25 to +40 °C
• Standard: DIN EN 60669-1
• Actuation type: Rocker

Tips

Pair with Hager W.1 series frames and surface-mount boxes for a consistent look. For two-way switching, use two WNC001B units wired accordingly. Ensure proper sealing of cable entries to maintain IP55 rating.
