Digitus USB-C 8K dockingstation, 12 poorten, USB 3.2 Gen 2, 100 W

The Digitus USB-C 8K Docking Station provides a wide range of connections and high-resolution video output for an efficient workstation. It supports single-monitor 8K/30Hz or multiple-monitor setups with dual 4K/60Hz or triple-monitor configurations in MST and SST modes. The dock includes multiple USB ports, card readers, Ethernet and audio connections, and a USB-C Power Delivery port to charge your notebook when connected to an external USB-C charger (min. 100 W).

Advantages

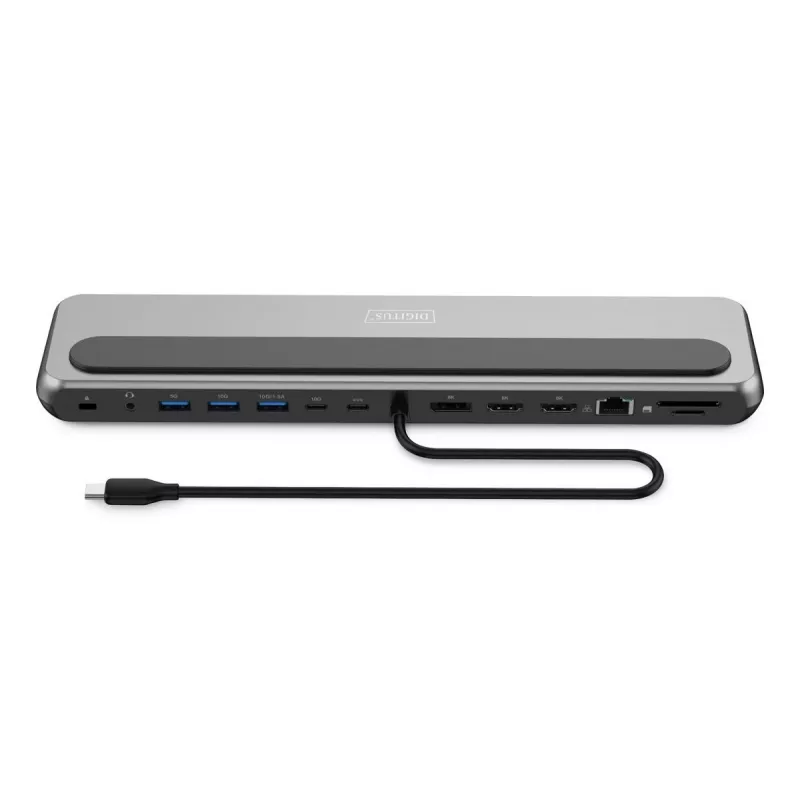

The docking station allows connection of up to three external monitors (2x HDMI + 1x DisplayPort) and supports dual 4K/60Hz or triple-monitor layouts (1x 4K/60Hz + 2x 4K/30Hz in MST). High-speed data transfers are possible via two USB-A 3.2 Gen 2 (10 Gbit/s) ports and one USB-C 3.2 Gen 2 (10 Gbit/s) port; an additional USB-A 3.2 Gen 1 (5 Gbit/s) port is available. Two ports provide a 1.5 A charging function for mobile devices. A Gigabit Ethernet port ensures stable wired network access, and SD/MicroSD card readers offer fast file transfer. The dock supplies up to 85 W to the notebook via USB-C Power Delivery while reserving power for its operation. Rubberized feet prevent slipping and keep the setup stable.

Key specifications

• Video outputs: 2x HDMI + 1x DisplayPort (supports up to 8K/30Hz single display)
• Multi-monitor modes: Dual monitor 2x 4K/60Hz (MST/SST compatible); Triple monitor: SST 3x 4K/60Hz or MST 1x 4K/60Hz + 2x 4K/30Hz
• USB ports: 2x USB-A 3.2 Gen 2 (10 Gbit/s), 1x USB-C 3.2 Gen 2 (10 Gbit/s), 1x USB-A 3.2 Gen 1 (5 Gbit/s)
• Mobile device charging: two ports with 1.5 A charging each
• Ethernet: Gigabit Ethernet 10/100/1000 Mbit/s (RJ45)
• Card reader: SD and MicroSD, transfer speed up to 104 MB/s
• Audio: 1x 3.5 mm audio jack
• Power delivery: USB-C PD 3.0 input (connect external USB-C charger, min. 100 W); dock provides up to 85 W to notebook
• Design: Rubberized feet and non-slip pad for stable placement

How to use

Connect the docking station to your notebook using the built-in USB-C cable or the designated USB-C port, then plug in an external USB-C charger (minimum 100 W) into the USB-C Power Delivery port. Attach monitors to the HDMI and DisplayPort outputs according to the desired multi-monitor mode (single 8K/30Hz, dual 4K/60Hz, or triple monitor configurations). Insert SD or MicroSD cards into the card readers and connect peripherals to the USB ports. For a wired network, plug an Ethernet cable into the RJ45 port. The dock will allocate power automatically, delivering up to 85 W to the notebook while reserving power for its own operation.

Recommendations

For stable multi-monitor performance, use certified USB-C chargers of at least 100 W and high-quality display cables. Verify that your notebook supports MST or SST display modes and the required USB-C video output standard.
