i-tec USB-C Triple Display Docking Station Gen 2 Power Delivery 100W bedraad 3.2

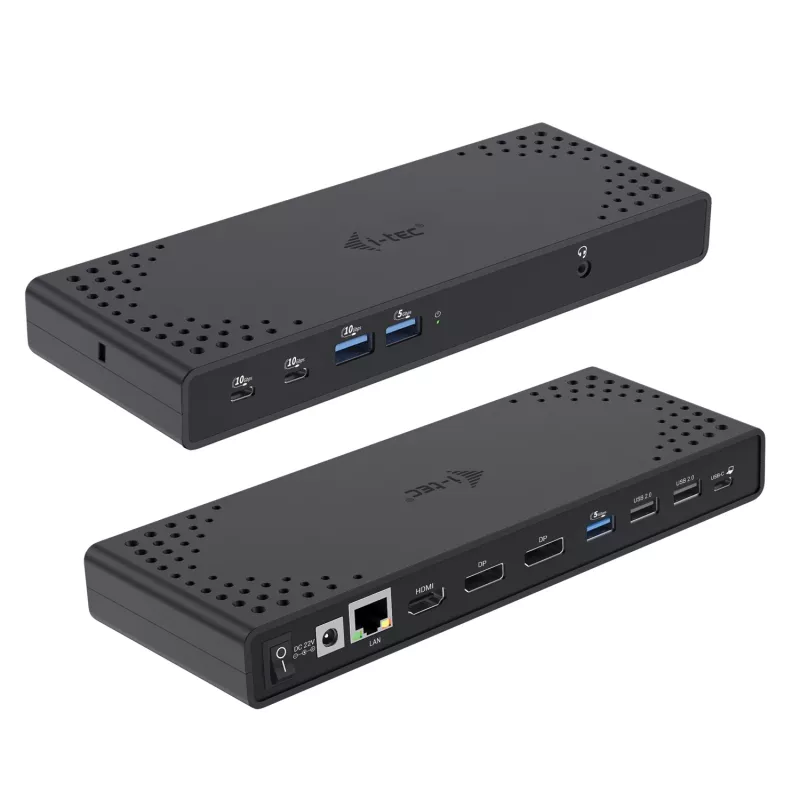

A high-performance USB-C docking station of the new generation that supports output to up to three external monitors with resolutions up to 4K. Compatible with notebooks that have USB-C, USB4 or Thunderbolt 3/4 ports and works with current versions of major operating systems. The dock includes multiple USB ports (some supporting Gen 2 speeds up to 10 Gb/s), an integrated Gigabit Ethernet port for stable wired network connection, and the option to mount the dock behind a VESA-compatible monitor. It also provides power delivery to charge a laptop or tablet with up to 100 W.

Advantages

Supports connection of up to three external displays in high resolution, offers fast wired LAN through an RJ-45 Gigabit Ethernet port, and supplies power delivery up to 100 W. Multiple USB ports include USB-C and USB-A options with Gen 2 (10 Gb/s) and Gen 1 (5 Gb/s) speeds and BC 1.2 fast-charging support. The dock features a combo audio/microphone jack, Kensington lock for physical security, a power switch to save energy, and VESA mounting compatibility for installation behind a monitor.

Key specifications

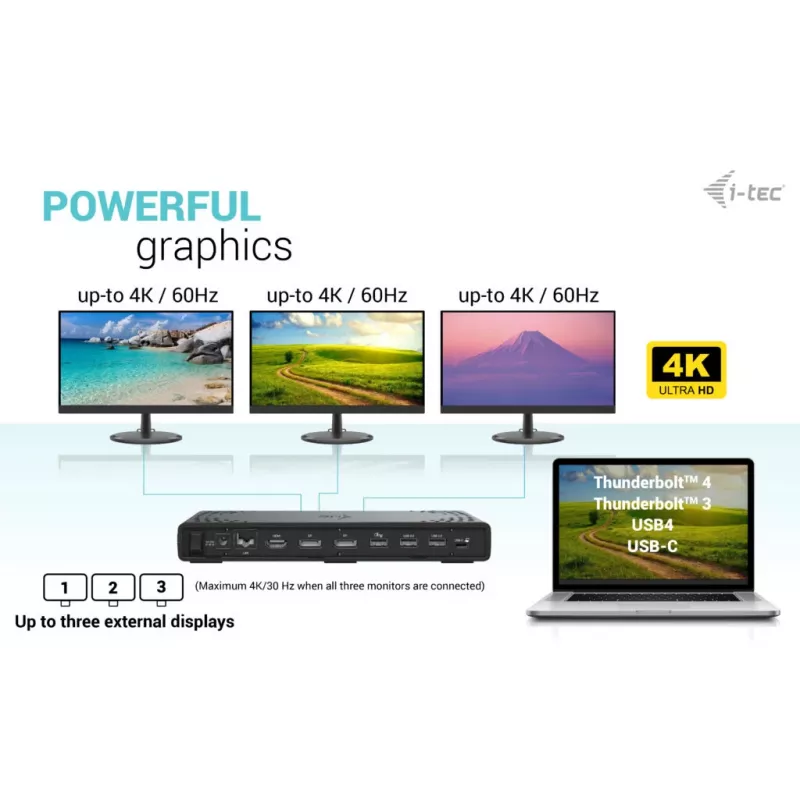

• External displays: up to 3 monitors, up to 4K resolution
• Power delivery: up to 100 W

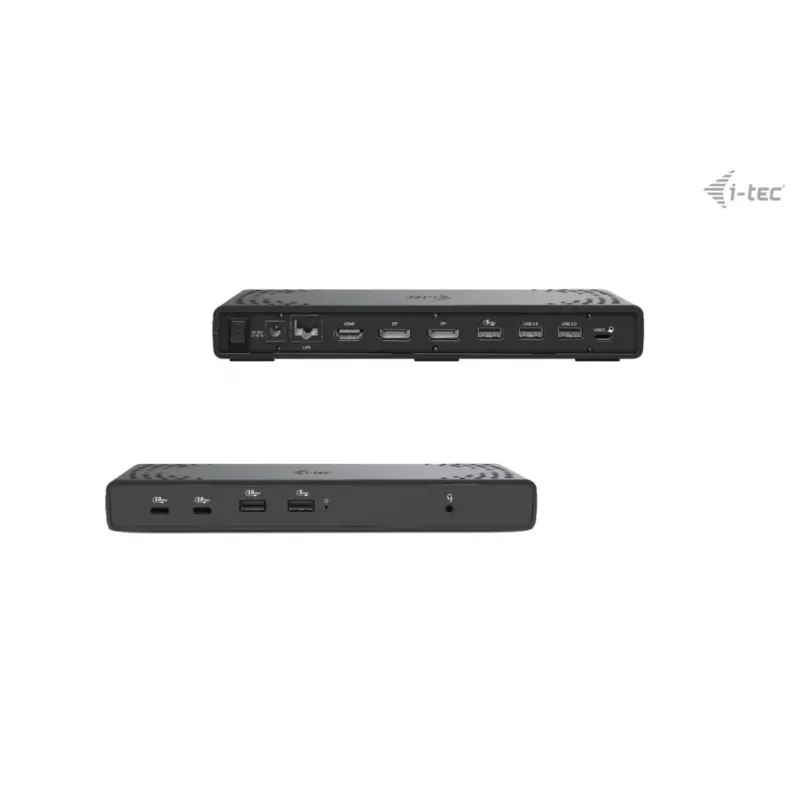

• Video outputs: 2 × DisplayPort, 1 × HDMI

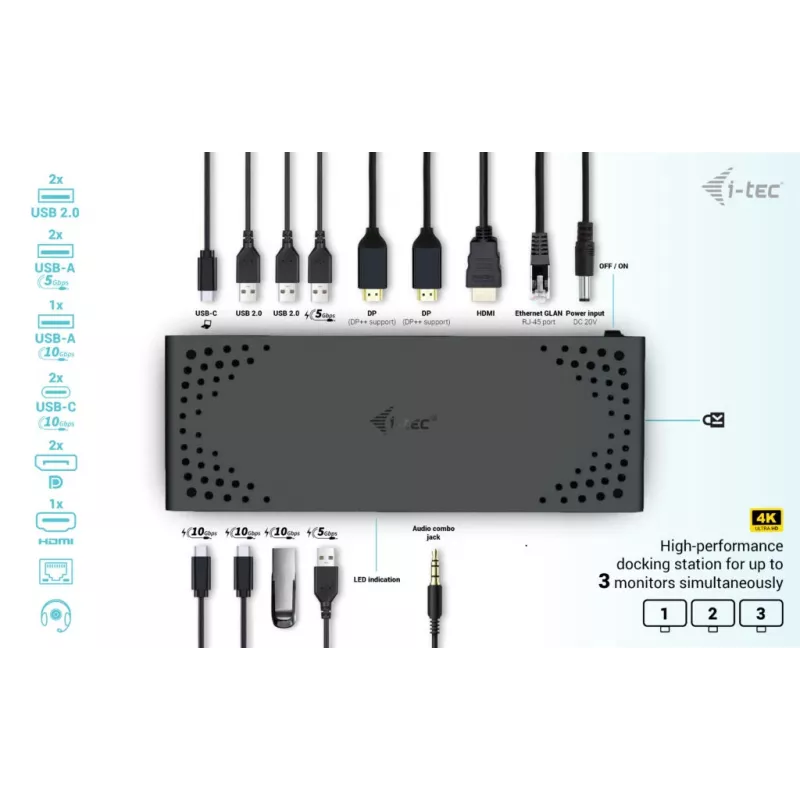

• USB ports: 7 total — 2 × USB-C (10 Gb/s) with BC 1.2, 1 × USB-A Gen 2 (10 Gb/s) with BC 1.2, 2 × USB-A Gen 1 (5 Gb/s) with BC 1.2, 2 × USB 2.0
• Ethernet: Gigabit RJ-45 (10/100/1000 Mbps)
• Audio: combo jack for headset/microphone
• Security: Kensington lock slot
• Extras: docking station power switch, VESA mount support for behind-monitor installation
• Compatible OS: Windows 10/11, macOS, iPadOS, Android, Chrome OS, Linux (with latest updates)
• Note: macOS does not support MST; connecting two or more monitors on macOS will mirror the same image

How to use

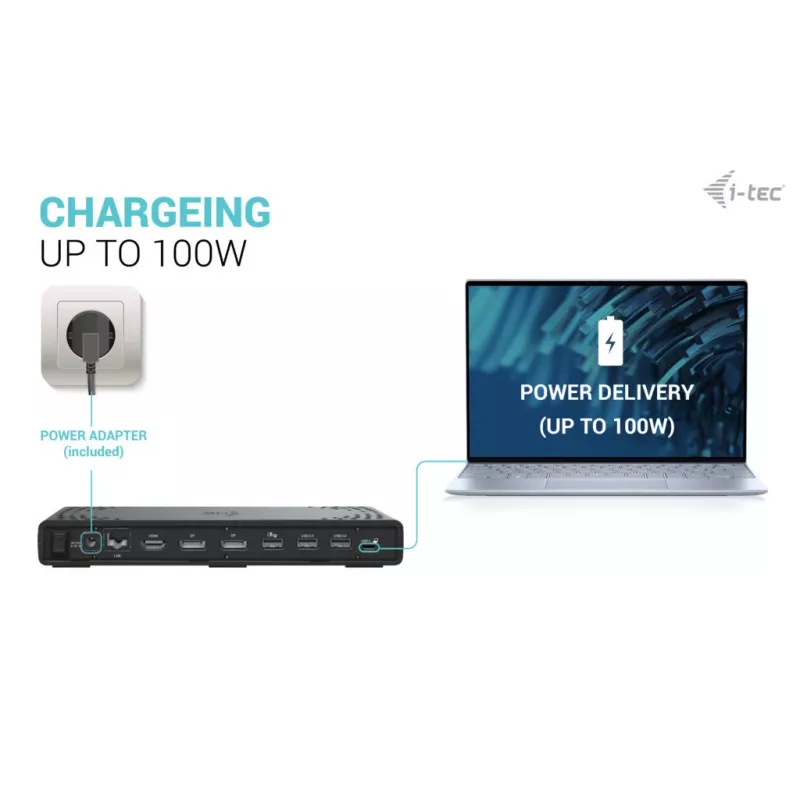

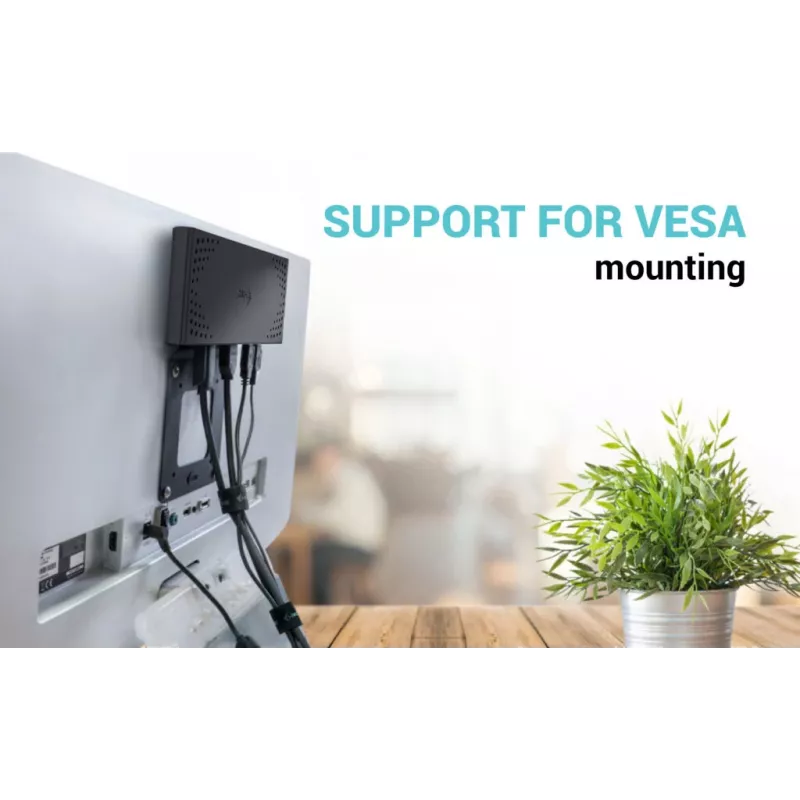

Connect the docking station to your notebook using the USB-C/Thunderbolt cable. Attach external monitors to the DisplayPort and HDMI outputs, connect peripherals to the USB ports, plug in an Ethernet cable if wired network access is required, and connect power to enable laptop charging up to 100 W. If mounting behind a VESA-compatible monitor, use the VESA bracket and secure the dock according to the monitor manufacturer's instructions. Use the docking station power switch to turn the dock on or off as needed and secure the device with a Kensington lock when required.

Recommendations

For multi-monitor setups on macOS, note the operating system limitation: macOS does not support Multi Stream Transport (MST), so multiple connected monitors will show identical content. For best results with three independent displays, use a notebook and graphics configuration that supports multiple outputs over USB-C/Thunderbolt or consult your device manufacturer.
