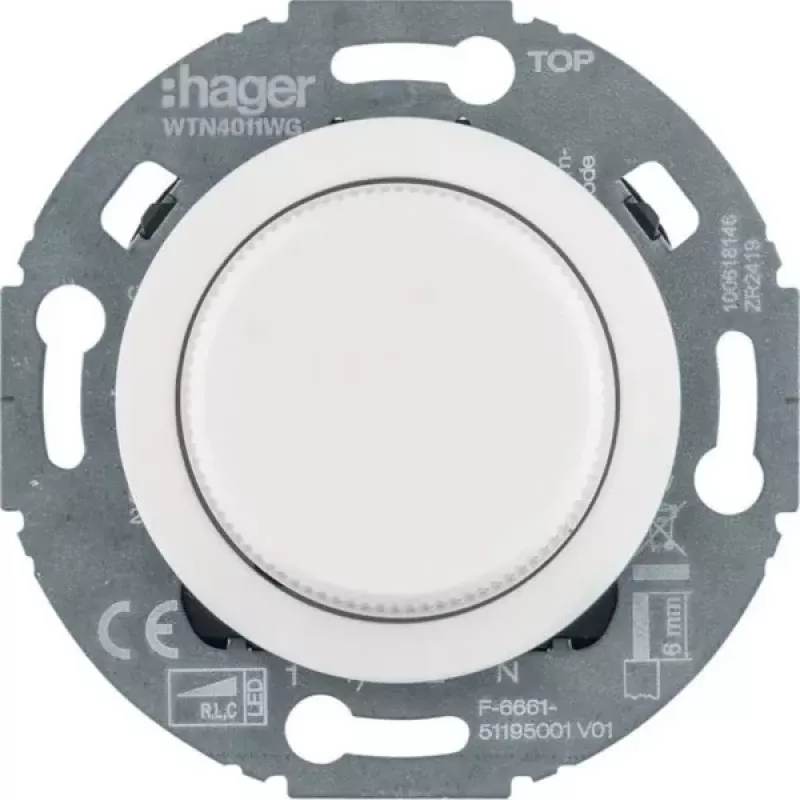

Hager WTN4011WG universele draaidimmer met middenstuk, systeem 1930/glas, wit, inbouw, R L C LED

The Hager WTN4011WG is a high-quality universal rotary dimmer designed for flush-mounted installation. It features a central piece from the System 1930/Glas design line in white thermoplastic. This dimmer is compatible with resistive (R), inductive (L), capacitive (C), and LED loads, making it a versatile solution for various lighting applications.

Advantages

Universal dimming principle with automatic leading/trailing edge detection ensures compatibility with a wide range of bulbs. Soft start function prolongs lamp life. Compact design with screw terminals for easy installation.

Suitable for

• Resistive loads (incandescent, halogen) up to 400 W
• Inductive loads (wound transformers) up to 400 VA
• Capacitive loads (electronic transformers) up to 400 VA
• LED loads (phase cut) up to 100 W

Key specifications

• Product Type: Universal Rotary Dimmer
• Mounting: Flush-mounted
• Operating Voltage: 230 V AC, 50/60 Hz
• Max. Resistive/Halogen Load: 400 W
• Max. Inductive/Electronic Transformer Load: 400 VA
• Max. LED Load: 100 W
• Min. LED Load: 3 W
• Control: Rotary knob
• Connection: Screw terminals
• Design Line: System 1930/Glas
• Material: Thermoplastic
• Colour: White
• Protection: Overload, short-circuit, overtemperature
• Operating Temperature: 0 to +40 °C

Recommendations

For optimal performance, ensure the total connected load is within the specified limits. Use with compatible bulbs and transformers. Professional installation recommended.
