Hager Y90B afgaande leiding 5-polig 63A 900mm voor verzamelrail-stroomverdeling

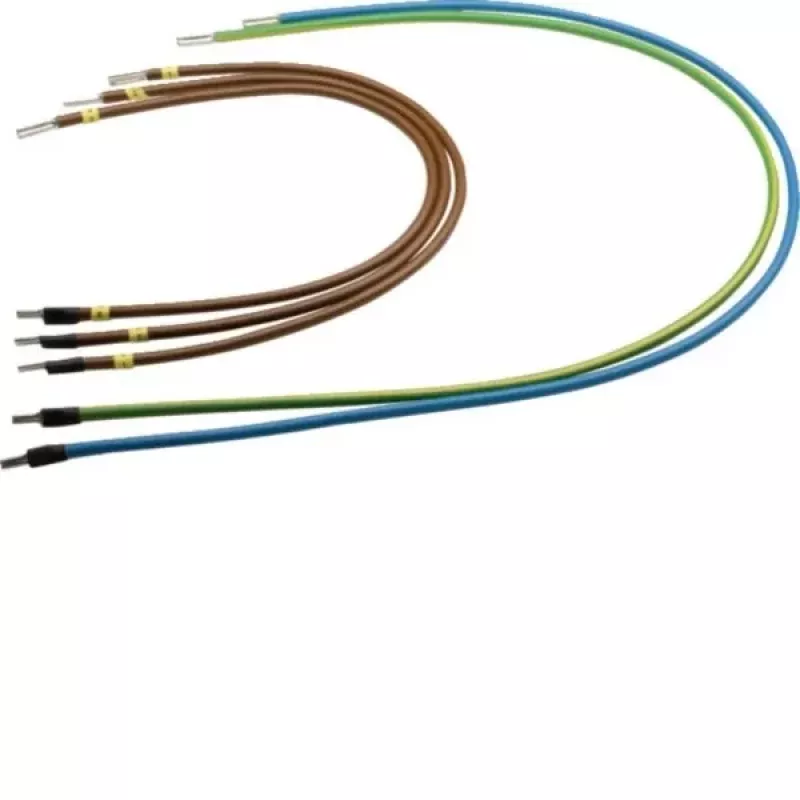

Connecting modular devices to busbar systems in distribution boards can be a challenge when standard wiring is too rigid or time-consuming. The Hager Y90B outgoing cable harness solves this by providing a pre-assembled, 5-pole connection cable that plugs directly into Hager busbar systems, ensuring a fast and reliable power tap for your installation.

Who is it for

This cable harness is intended for electricians and panel builders who need to connect outgoing circuits to busbars in residential or commercial distribution boards. It is particularly useful when you need a flexible, high-current connection without the hassle of cutting and terminating individual wires.

Main features

• 5-pole configuration for three-phase + neutral + PE connections
• Rated current up to 63 A for demanding circuits
• 900 mm cable length for flexible placement
• 10 mm² copper conductors for low voltage drop
• Plug-in connection to Hager busbar systems for quick installation
• Self-extinguishing PVC insulation for safety

Specifications

• Number of poles: 5
• Cable length: 900 mm
• Conductor cross-section: 10 mm²
• Rated operational voltage: 230/400 V AC
• Rated current: 63 A
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 4 kV
• Conductor material: Copper
• Insulation material: PVC
• Colour: Grey/Black
• Flammability class: Self-extinguishing
• Compatibility: Hager busbar systems
• Mounting type: Plug-in / screw terminal (to busbar)

Tips

Ensure the busbar system is de-energized before installation. The cable harness is designed for use within distribution boards and should be routed to avoid sharp edges and excessive bending. For optimal performance, verify that the total load does not exceed the 63 A rating.
