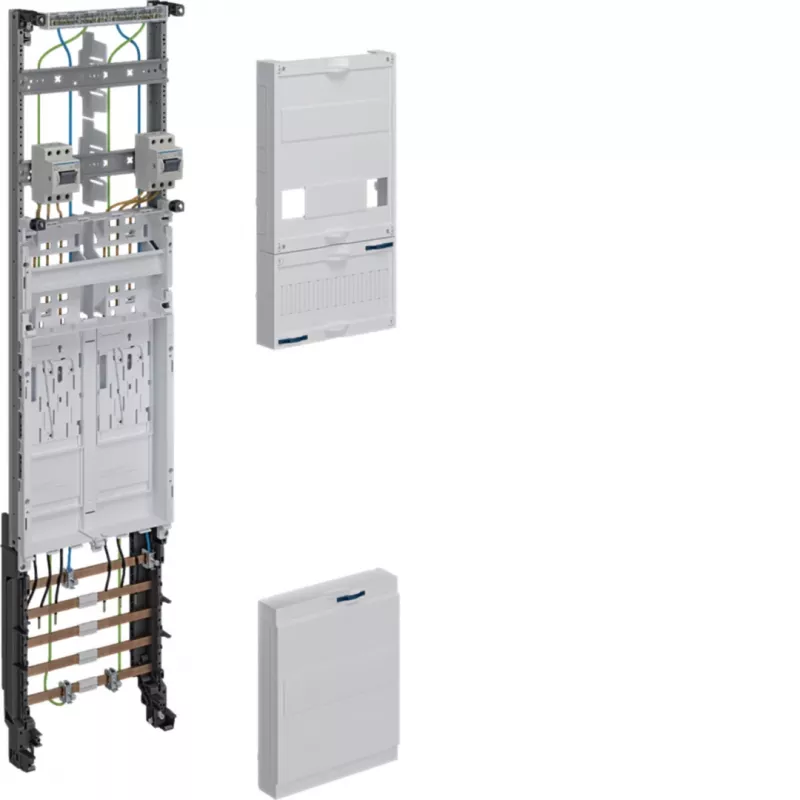

HAGER ZH3EF12T compleet meterveld BKE-I 2 meterplaatsen 10mm² scheidingsfunctie

Complete meter panel field for two BKE-I meter positions with integrated disconnection function and 10 mm² main conductor cross-section, pre-wired for eHZ smart meters in universal distribution boards.

Advantages

Pre-wired complete field saves installation time. Integrated disconnection function allows safe isolation of each meter position. Suitable for eHZ smart meters via BKE-I adapter. 5-pole busbar system and PE/N terminals included.

Suitable for

• Residential and commercial distribution boards requiring two meter positions
• Installation with eHZ smart meters (BKE-I)
• Hager universZ series distribution boards

Key specifications

• Number of meter positions: 2
• Meter type: BKE-I (for eHZ smart meters)
• Main conductor cross-section: 10 mm²
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• System type: 3-phase
• Mounting: universal distribution boards
• Material: steel sheet
• Busbar system: 5-pole
• Module width per position: 12 TE (250 mm)
• Height units per position: 7 HE
• Pre-wired: yes
• Colour: RAL 9010 (pure white)

Recommendations

Verify compatibility with your distribution board dimensions and meter type before installation. Ensure proper torque on terminal connections according to manufacturer guidelines.
