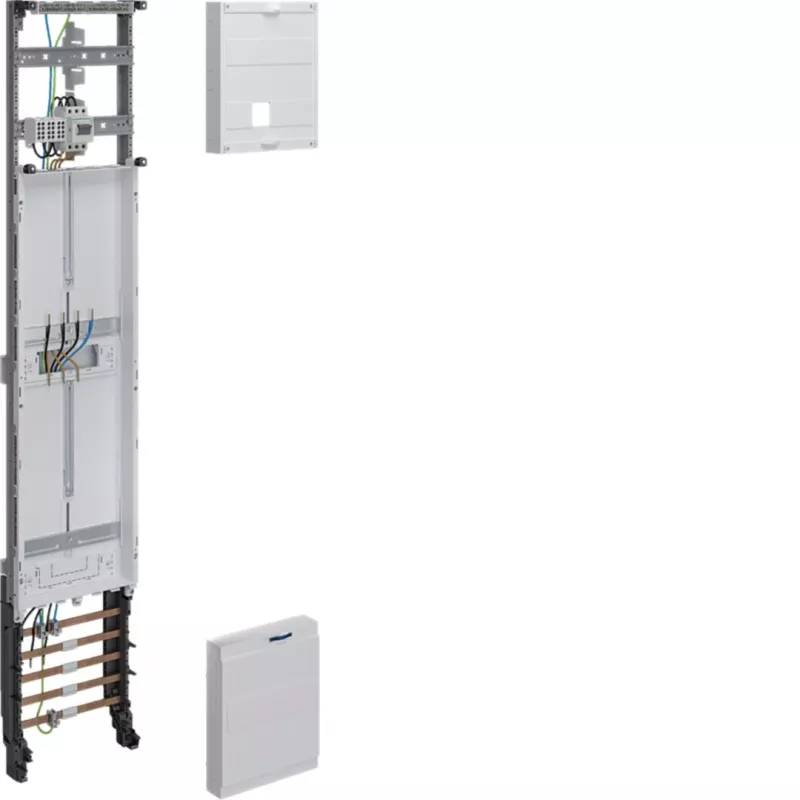

Hager ZH53Q1NT compleet meterveld universZ, 1350x250mm, 3-fasig, 1 meterplaats, 10 mm², met scheidingsfunctie

Complete meter field from the Hager universZ series, pre-wired and ready for installation in meter cabinets or distribution boards. This 3-phase unit provides one conventional 3-point meter place and an integrated disconnecting function via a 63 A main switch, ensuring safe isolation for maintenance and meter replacement.

Advantages

The pre-wired assembly reduces on-site wiring time and potential errors. The integrated main switch with disconnecting function enhances safety and simplifies meter handling. The galvanized sheet steel construction offers durability and corrosion resistance.

Suitable for

• Residential and commercial electrical installations
• Meter cabinets and distribution boards requiring a single 3-phase meter place
• Applications where a main disconnecting switch is required upstream of the meter

Key specifications

• Series: Hager universZ
• Number of meter places: 1
• Number of phases: 3-phase
• Main connection cross-section: 10 mm²
• Integrated disconnecting function: Yes (via main switch)
• Rated current (main switch): 63 A
• Busbar system: 5-pole main busbar
• Meter mounting type: Conventional (3-point mounting)
• Material: Galvanized sheet steel
• Protection class (internal): IP2XC
• Standards compliance: DIN VDE
• Terminal type: Screw terminals
• Pre-wired: Yes (for meter place and main switch)

Recommendations

Ideal for electricians and panel builders seeking a reliable, pre-wired meter field solution that saves installation time and ensures compliance with German VDE standards.
