Hamerbevestigingen Fischer Hammerfix N 6 x 40/10 S

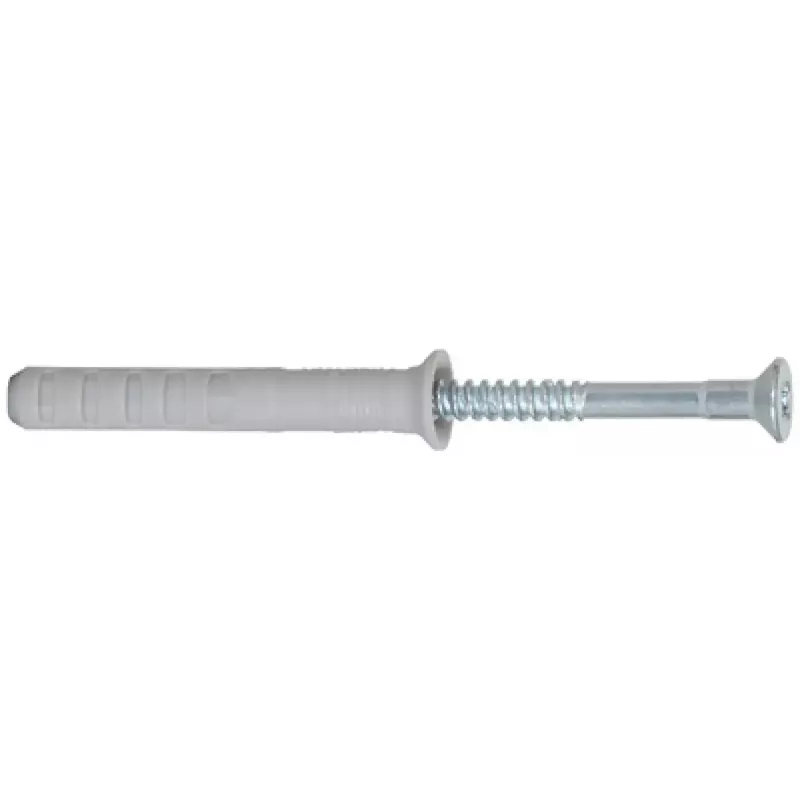

The fischer Hammerfix N 6 x 40/10 S with countersunk head is a nylon hammer fixing pre-assembled with a zinc-plated nail screw for quick hammerset installation. Designed for through-type installation, the fixing sleeve expands when the nail screw is driven in and anchors securely in solid building materials. This product is intended for internal use and is suitable for fixing timber constructions and other components in a variety of substrates.

Advantages

Pre-fitted nylon plug and zinc-plated nail screw enable fast series installation with a hammerset. An integrated hammer-in stop prevents premature spreading of the anchor during installation. The nail screw can be later removed using the cross-slot (Pozidriv) recess, and the countersunk head provides a flush finish when installed.

Suitable for

• Fixing timber constructions to solid masonry
• Anchoring battens, profiles and light structural elements internally
• Fast installations where hammerset mounting is preferred
• Applications requiring a flush, countersunk head finish

Key specifications

• Product: Fischer Hammerfix N 6 x 40/10 S
• Plug material: Nylon
• Nail screw: Zinc-plated, Pozidriv (cross-slot) head
• Dimensions: 6 mm drill hole diameter × 40 mm length
• Pack quantity: 50 pieces
• Minimum drill hole depth: 55 mm
• Intended use: Internal installations, solid building materials

How to use

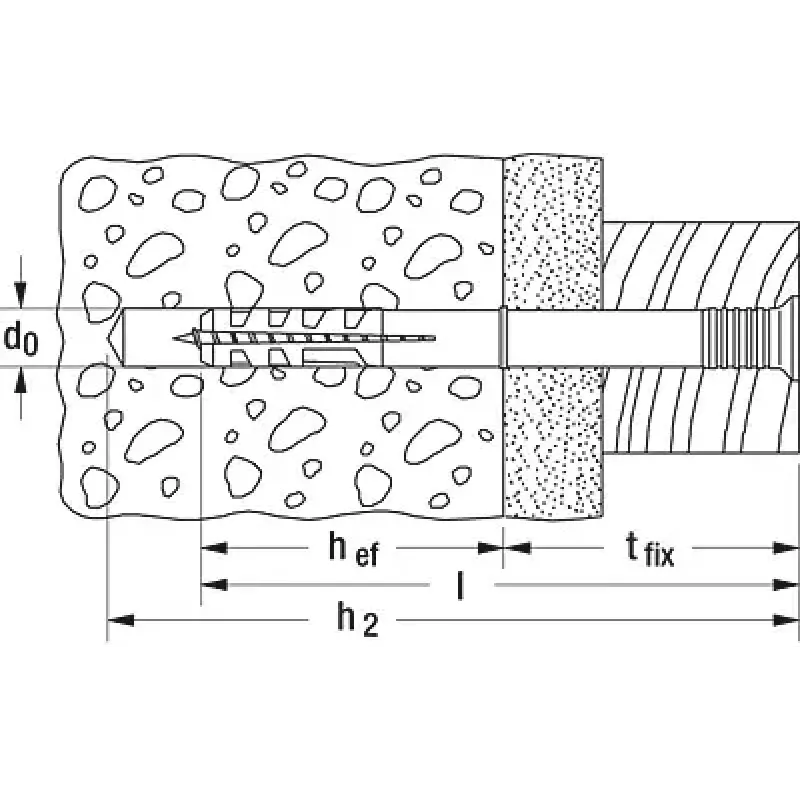

Drill a 6 mm diameter hole to the required depth (minimum 55 mm) in the substrate. Insert the pre-assembled Hammerfix N through the fixture and push it into the drilled hole. Use a hammer to drive the nail screw until the fixing sleeve expands and the countersunk head sits flush with the component surface. If necessary, the nail screw can later be removed using a Pozidriv screwdriver.

Recommendations

Use the Fischer Hammerfix N 6 x 40/10 S in solid masonry and comparable substrates; avoid use in hollow or insufficiently strong materials. Check drill depth and substrate condition before installation and follow local building regulations.
