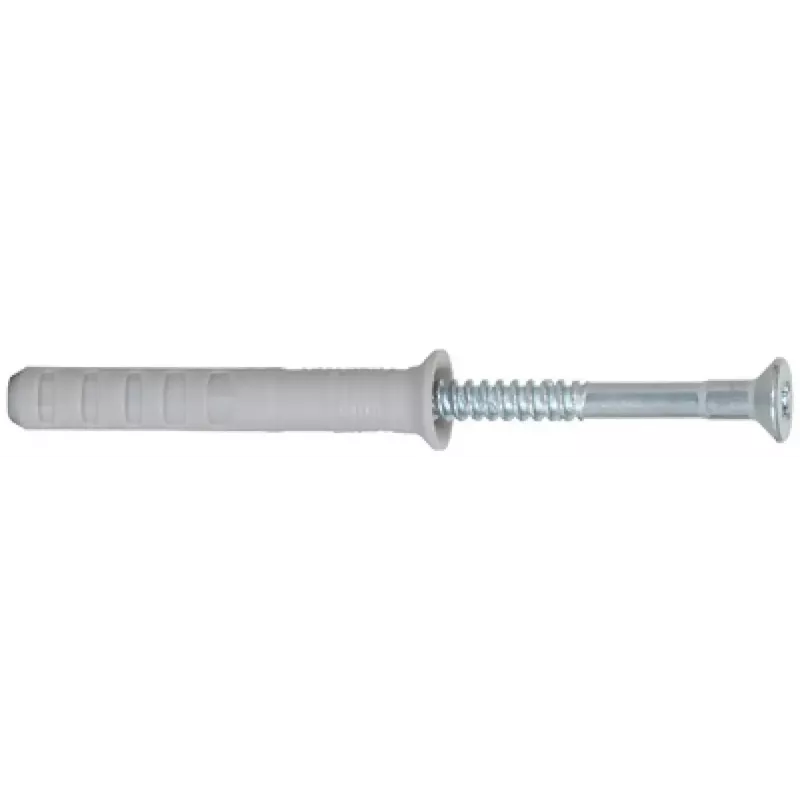

Hamerplug Fischer Hammerfix N 5 x 40/15 S

The fischer Hammerfix N 5 x 40/15 S is a nylon hammer fixing with a countersunk head, combining a high-quality nylon plug and a zinc-plated nail screw pre-assembled for fast hammerset installation. Designed for through-type installation, the fixing sleeve expands when the nail screw is driven in, anchoring securely in the base material. This version is intended for internal timber constructions and general fastening tasks in a variety of building materials.

Advantages

Fast hammerset installation reduces assembly time and is suitable for series installation. An integrated hammer-in stop prevents premature spreading of the anchor, ensuring correct placement during installation. The nail screw includes a Pozidriv (cross-slot) recess allowing subsequent dismantling if needed. The countersunk head provides a flush finish when fastening timber or thin components.

Suitable for

• Fixing timber constructions to concrete, solid brick and similar base materials (internal use)
• Series hammerset installations where speed is required
• Applications requiring a countersunk finish

Key specifications

• Type: fischer Hammerfix N 5 x 40/15 S
• Diameter (drill hole): 5 mm
• Length: 40 mm
• Effective anchor length: 15 mm
• Head: countersunk
• Screw type: Pozidriv (cross-slot)
• Material: nylon plug with zinc-plated nail screw
• Pack quantity: 100 pieces
• Manufacturer MPN: 050351
• EAN: 4006209503515
• Minimum drill hole depth required: 55 mm

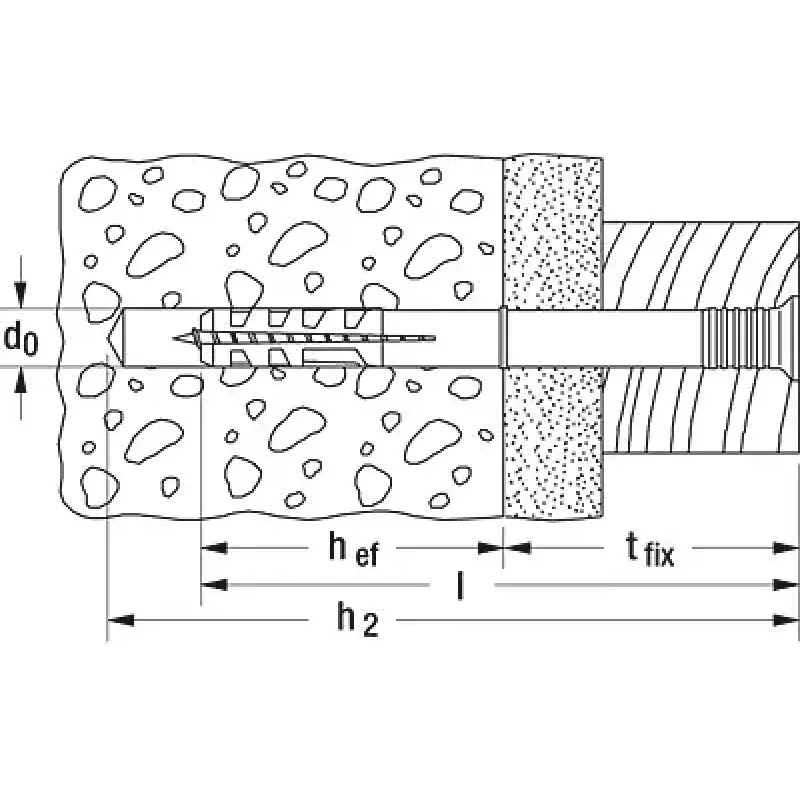

How to use

Drill a hole of 5 mm diameter to a minimum depth of 55 mm in the base material. Insert the pre-assembled Hammerfix through the component into the hole. Using a hammer, drive the nail screw until the fixing sleeve expands and the countersunk head sits flush with the component surface. For series installation use a hammer tool for consistent setting. If removal is required, the cross-slot recess allows the nail screw to be unscrewed.
