Handheld-barcodescanner Honeywell Voyager 1470G2D-6USB-1-A

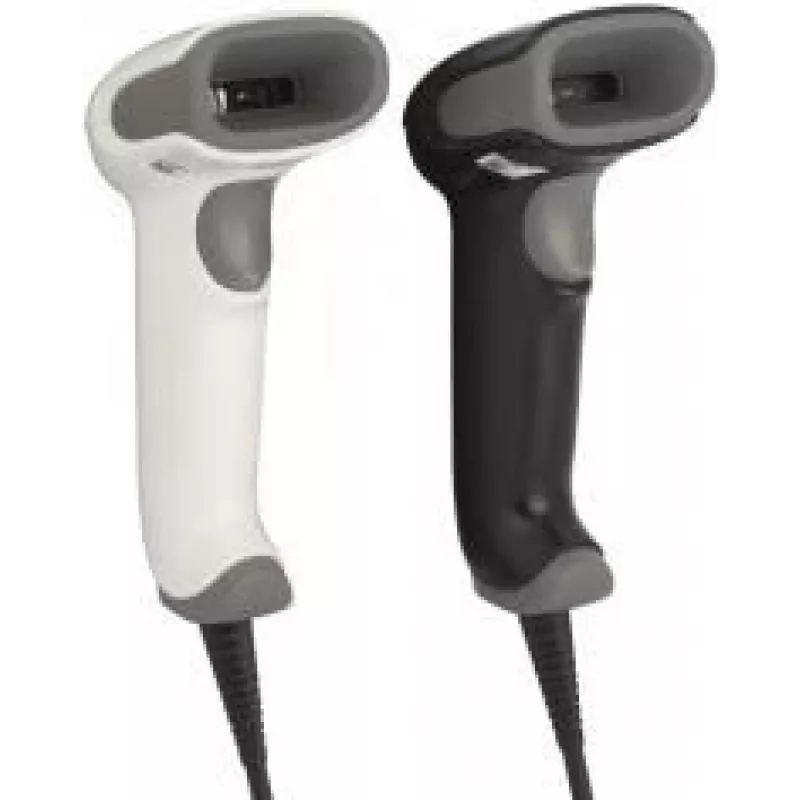

The Honeywell Voyager 1470G2D-6USB-1-A is a handheld bar code reader designed for reliable 1D and 2D scanning in retail, logistics and inventory environments. Equipped with a CMOS sensor, the scanner reads linear and matrix barcodes at typical working distances up to 400 mm. The unit connects via a wired USB interface using a 1.5 m cable, weighs approximately 130 g and features an IP52-rated housing for basic protection against dust and water. Low power consumption during operation makes it suitable for continuous use on a sales floor or in backroom stock handling.

Advantages

The Voyager 1470G2D-6USB-1-A combines compact, lightweight construction with compatibility for both 1D and 2D symbologies, including common linear formats and Data Matrix. Its CMOS sensor delivers consistent decoding performance across printed and digital barcodes, while the wired USB connection provides stable communication without the need for batteries. The device’s IP52 protection and shock-resistant design increase durability in everyday retail and warehouse usage. Energy-efficient operation reduces power draw and supports long shifts without additional power management.

Suitable for

• Retail point-of-sale barcode scanning
• Inventory and stockroom management
• Logistics and shipping label verification
• Asset tracking and returns processing

Key specifications

• Scanner type: 1D/2D imaging
• Sensor type: CMOS imager
• Working distance: up to 400 mm (depending on barcode size and contrast)
• Connectivity: wired USB with 1.5 m cable
• Weight: approximately 0.13 kg
• Supported linear (1D) symbologies: PDF417, Code 39 and other common formats
• Supported 2D symbologies: Data Matrix and other matrix/stacked codes
• Protection rating: IP52 (dust-protected, splash-resistant)
• Typical power consumption: around 2 W during operation
• Color: black and grey

How to use

Connect the Honeywell Voyager 1470G2D-6USB-1-A to a host device using the supplied USB cable. Position the scanner so the barcode is within the recommended working distance and press the trigger or enable continuous reading mode if supported by your system. Aim the imager at the barcode, ensuring sufficient contrast and avoiding glare from screens or reflective surfaces. The device will decode the barcode and transmit the data over the USB connection to the host application for processing. Configure host software settings as needed to match desired output formats and suffixes.

Recommendations

For optimal performance, use the scanner in environments with controlled lighting and avoid scanning damaged or poorly printed barcodes when possible. Clean the window periodically to remove dust and fingerprints, and secure the USB cable to prevent stress on the connector. When deploying across multiple workstations, verify host settings for correct keyboard wedge or USB HID operation to ensure seamless data entry into POS or inventory systems.
