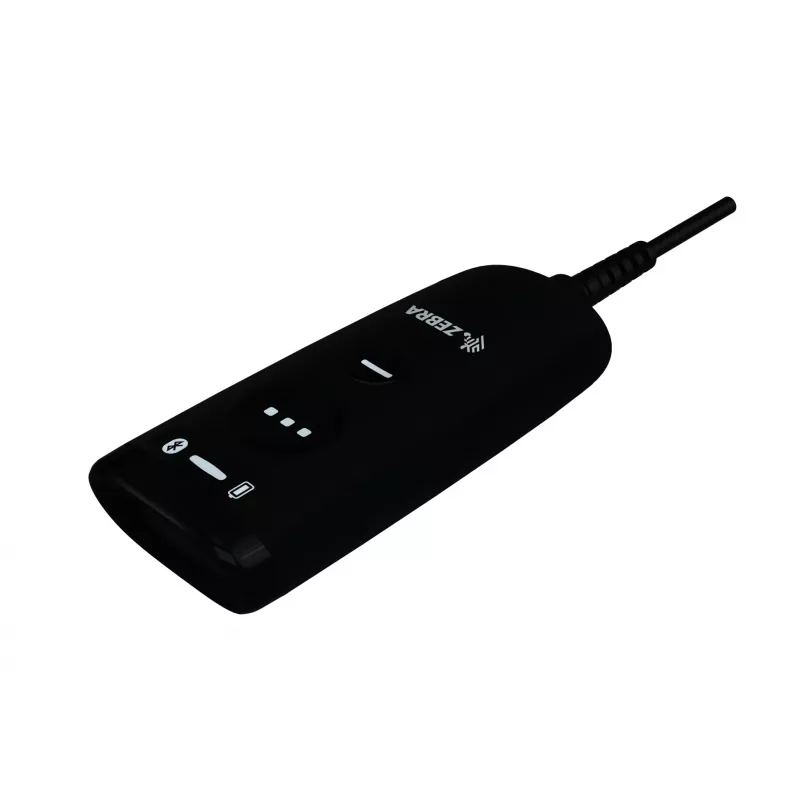

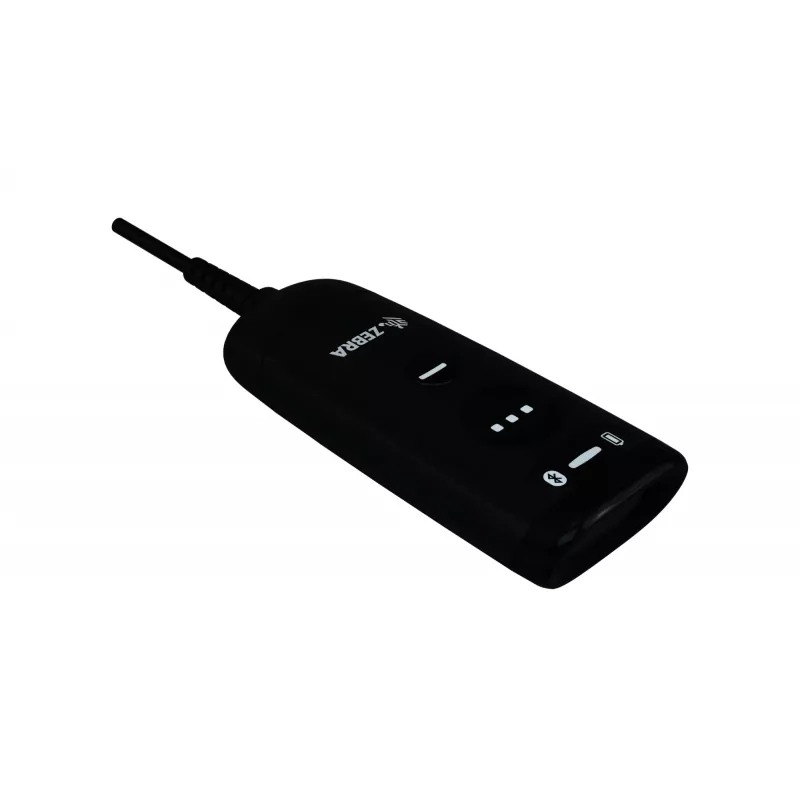

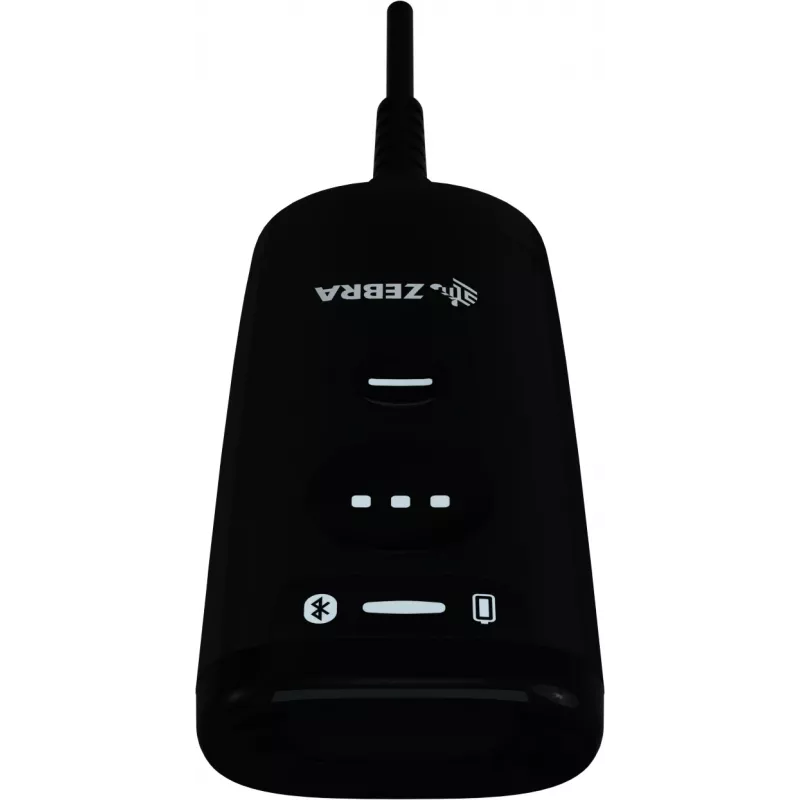

Handheld barcodescanner Zebra CS60 — 1D/2D-scanner, LED-sensor, Bluetooth/USB, IP65, 100 m bereik

Zebra CS60 is a lightweight handheld barcode reader designed to capture both 1D and 2D codes quickly and reliably. Featuring an LED sensor and a convertible design that supports corded and cordless use, the CS60 provides flexible deployment options for retail, warehousing and mobile point-of-sale environments. Wireless connectivity is available via Bluetooth with up to 100 m range in open conditions and the device also supports USB connection and multiple power inputs (AC, DC, USB). The scanner offers IP65 ingress protection for operation in dusty or wet environments and is supplied in a compact black housing weighing approximately 0.056 kg.

Advantages

The CS60 combines a small, ergonomic form factor with broad barcode compatibility, supporting common linear and 2D matrix codes for fast capture. Its convertible corded/cordless capability and support for Qi inductive charging and NFC tap-to-pair simplify integration into mixed workflows. Bluetooth 5.0 with Wi-Fi friendly mode and Virtual Tether anti-loss features improve mobility and device management. Built-in software tools streamline configuration, diagnostics and remote updates, reducing maintenance overhead.

Suitable for

• Retail checkout and mobile point-of-sale
• Inventory management and warehouse operations
• Self-service kiosks and ticketing
• Field service and on‑the‑move scanning tasks

Key specifications

• Scanner type: 1D/2D imager
• Sensor: LED image sensor for linear and matrix codes
• Connectivity: Bluetooth wireless and USB wired interface
• Wireless range: up to 100 m (open environment, actual range depends on conditions)
• Ingress protection: IP65 (dust-tight and protected against low pressure water jets)
• Weight: approximately 0.056 kg
• Supported linear codes: Code 128, UPC, Plessey, MSI, GS1 DataBar, Code 93, Code 39, Code 11, Codabar
• Supported 2D codes: Micro QR, MicroPDF417, PDF417, QR Code, TLC-39, Aztec, Composite Codes, Data Matrix, Han Xin, MaxiCode
• Colour: Black

How to use

Power the scanner via USB, AC or DC supply as required, or use the cordless mode with the internal battery and Qi inductive charging where available. For Bluetooth operation, enable Bluetooth on the host device and pair using NFC tap-to-pair or the standard Bluetooth pairing procedure; alternatively connect a USB cable for immediate wired operation. Aim the scanner at the barcode so the code is within the illumination field of the LED sensor and press the trigger or use hands-free mode if configured. The scanner decodes the code and transmits data to the connected host according to the chosen interface and settings.

Recommendations

Use the CS60 in environments where mixed corded and cordless workflows are required. For best wireless performance, maintain line-of-sight where possible and configure Wi‑Fi friendly mode to reduce interference. Clean the scan window periodically and use the built-in management tools to apply firmware updates and configuration profiles to ensure reliable scanning of both printed and mobile display barcodes.
