Handheld-terminal Newland MT93 2D GPS Android, mobiele gegevensverzameling

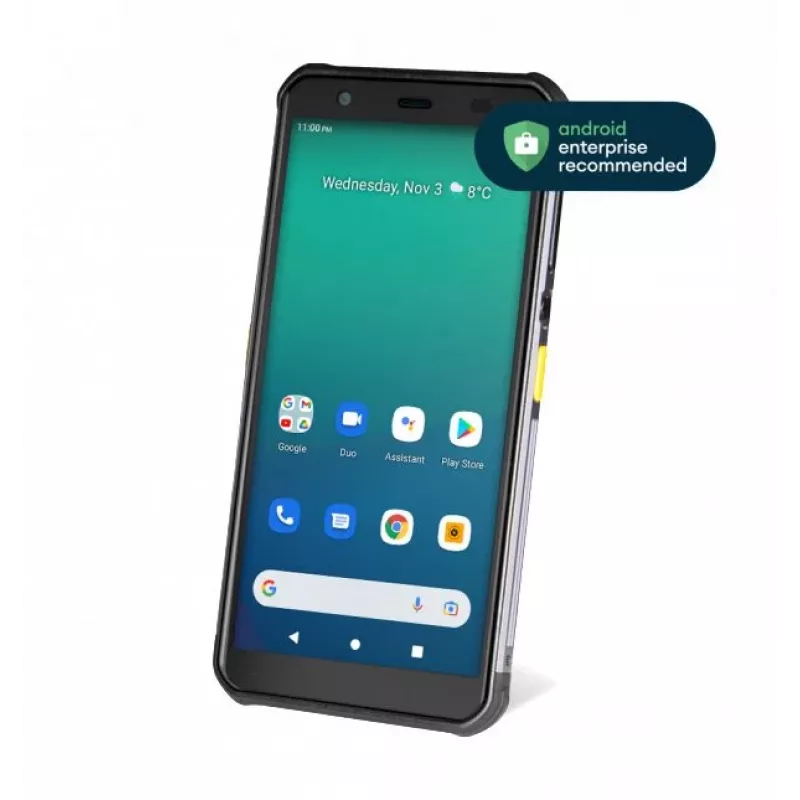

The Newland MT93 is a handheld terminal running Android 13 that combines a 2D imager scanner and GNSS-based location services in a rugged, pocketable device. With a 5.5" (14 cm) 1440x720 display, 13 MP rear camera with autofocus, 5 MP front camera, and a 5000 mAh battery, the unit is designed for mobile data collection, inventory management, delivery tracking and field service tasks where barcode capture and location tagging are required. It ships with Google Mobile Services, a USB-C cable, USB power charger, protective case, hand-strap and protective film.

Advantages

The MT93 offers integrated 2D barcode scanning and GPS positioning in one device, reducing the need to carry separate tools. Connectivity options include Bluetooth, Wi‑Fi 6E, 4G (LTE) and NFC for flexible data transfer and backend access. Its IP67-rated housing and included protective case and film provide resistance to dust and water, while the 6 GB RAM and ARM octa-core 2.2 GHz processor with 128 GB flash support responsive operation and local storage for large datasets.

Suitable for

• Inventory management and stock-taking in warehouses and retail
• Delivery and route management with location-tagged records
• Field service data capture and inspection workflows
• Asset tracking and on-site audits requiring barcode and GPS

Key specifications

• Scanner: 2D imager
• Operating system: Android 13 with Google Mobile Services
• Display: 14 cm (5.5"), 1440 x 720 pixels
• Processor: ARM octa-core, 2.2 GHz
• Memory and storage: 6 GB RAM, 128 GB flash, microSD slot
• Cameras: Rear 13 MP (autofocus), Front 5 MP
• Battery: 5000 mAh (included)
• Connectivity: USB-C, Bluetooth, Wi‑Fi 6E, 4G (LTE), NFC
• Protection class: IP67
• Included accessories: USB-C cable, USB power charger, protective case, protective film, hand-strap

How to use

Power on the device and complete the initial Android setup using the on-screen prompts. Insert a microSD card if additional storage is needed and connect to Wi‑Fi, mobile data (4G) or Bluetooth peripherals through Settings. Use the built-in 2D imager app or your integrated software to scan barcodes; captured records can be stored locally on the 128 GB flash or synced to cloud services via Wi‑Fi/4G. The rear camera can document items or site conditions, and GPS provides location metadata for each record.

Recommendations

For reliable operation in demanding environments, keep the protective case and film fitted, charge the 5000 mAh battery before extended shifts, and use Wi‑Fi 6E or 4G for faster data sync. Use a microSD card for additional offline storage and enable location services when location-tagging is required.
