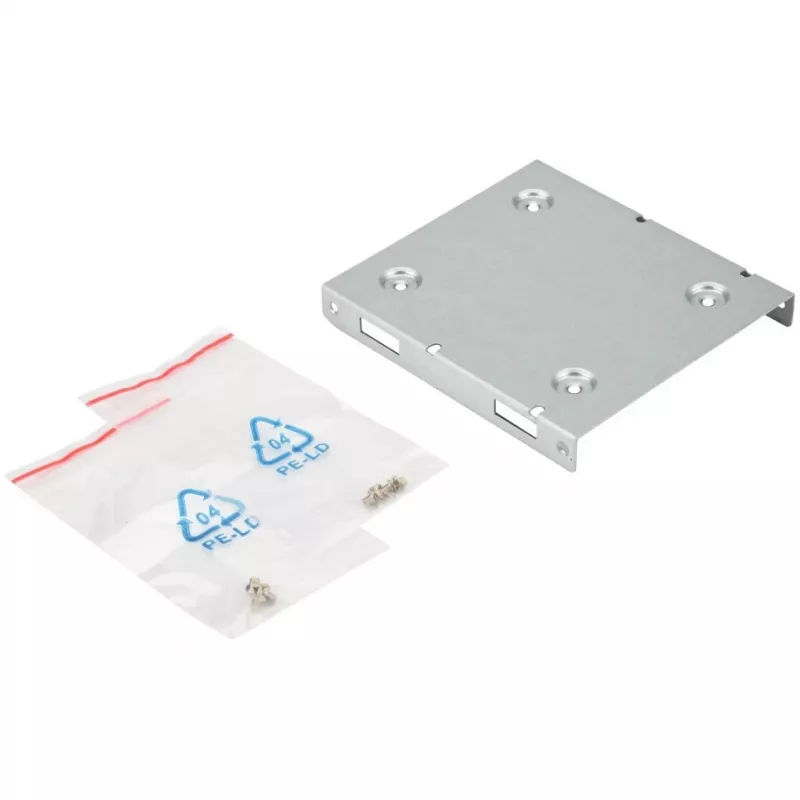

HDD-inbouwframe Supermicro MCP-220-73102-0N

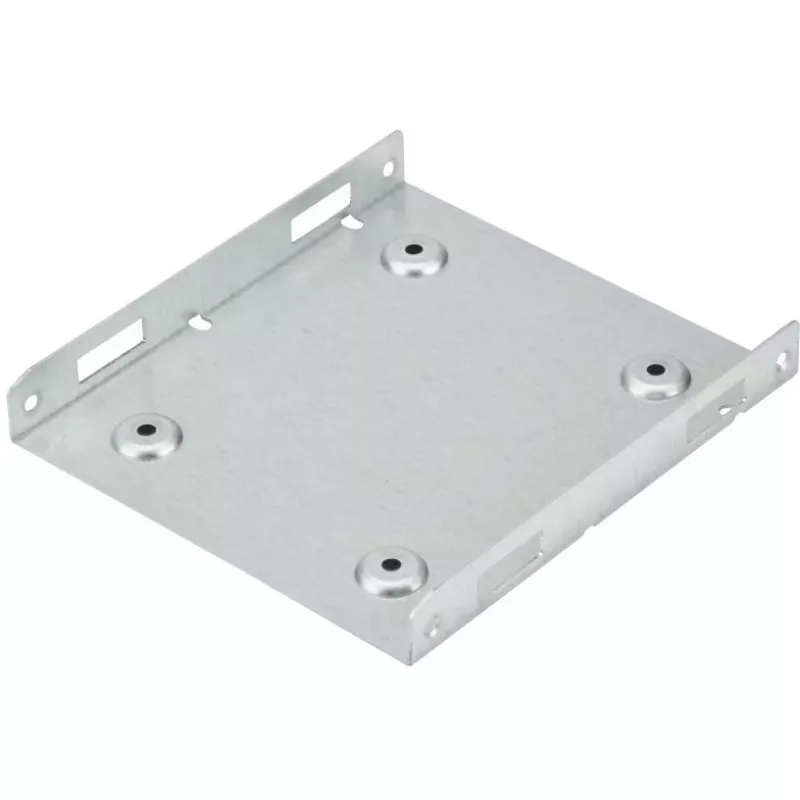

The Supermicro 3.5" to 2.5" Converter Drive Tray (MCP-220-73102-0N) is a metallic HDD mounting bracket that allows installation of a 2.5" drive into a 3.5" bay. Designed for compatibility with various Supermicro chassis, this validated drive tray provides a secure fit while preserving internal airflow within the computer case.

Advantages

The metallic construction offers a stable, durable mounting solution for 2.5" drives when used in 3.5" bays. Compatibility with multiple Supermicro cases and validation testing ensure reliable installation. The design maintains proper airflow and positioning of the drive to support consistent performance and reduce vibration.

Suitable for

• Installing 2.5" HDDs or SSDs in 3.5" drive bays
• Upgrading or repurposing storage in Supermicro server and workstation chassis
• Replacing a lost or damaged 3.5" to 2.5" drive adapter

Key specifications

• Brand: Supermicro
• Model / MPN: MCP-220-73102-0N
• Form factor: Adapter for installing 2.5" drive into 3.5" bay
• Material / Colour: Metallic
• Compatibility: Various Supermicro chassis (validated for quality)

How to use

Mount the 2.5" HDD or SSD into the converter tray using the appropriate screw holes, then slide or secure the assembled tray into the 3.5" bay of a compatible Supermicro chassis following the chassis manufacturer’s instructions. Ensure screws are tightened to hold the drive firmly and verify alignment so that connectors and airflow paths are unobstructed.

Recommendations

When installing, use the chassis-supplied screws if available and follow anti-static handling procedures. Confirm compatibility with your specific Supermicro case model and verify drive seating before powering the system.
