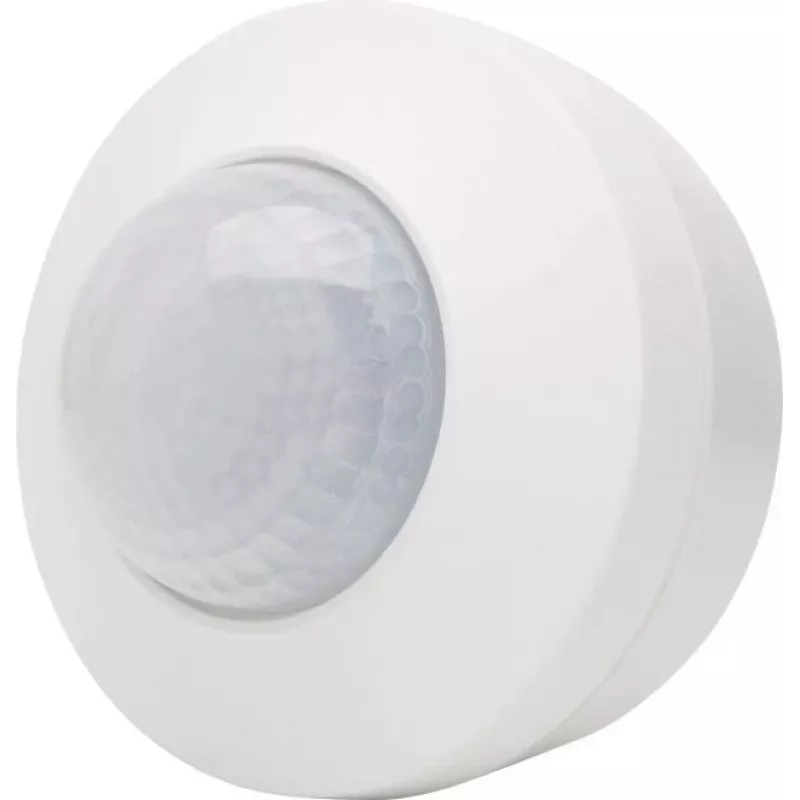

HEINRICH KOPP 827807006 opbouw-aanwezigheidsmelder 360°, wit, IP20

The Kopp 827807006 presence detector offers full 360° coverage in a surface-mounted design, making it a practical choice for lighting control in corridors, stairwells, and utility rooms. Unlike fixed-angle sensors, its wide detection pattern reduces blind spots and adapts to room layouts.

Highlights

• 360° detection angle for comprehensive area coverage
• Surface-mounted installation, suitable for ceilings up to 4 m
• Adjustable time delay from 10 seconds to 15 minutes
• Brightness threshold adjustable from 3 to 2000 lux
• Supports resistive loads up to 2000 W and LED/CFL loads up to 300 W

In daily use

The detector switches lighting automatically based on presence and ambient light. Its adjustable settings allow you to match the response to the room's usage, avoiding unnecessary switching while maintaining convenience. The white plastic housing blends with most ceilings.

Full specifications

• Detection angle: 360°
• Mounting type: Surface-mounted
• Colour: White
• IP rating: IP20
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity resistive: 2000 W
• Max. switching capacity LED/CFL: 300 W
• Max. switching capacity inductive: 1000 VA
• Detection range diameter: 6 m at 2.5 m mounting height
• Recommended mounting height: 2.2 - 4 m
• Time setting: 10 s - 15 min
• Brightness threshold: 3 - 2000 lux
• Standby power consumption: < 0.5 W
• Housing material: Plastic
• Operating temperature: -20°C to +40°C

Final note

A dependable presence detector for indoor areas where automatic lighting control is needed, with flexible adjustment to suit different environments.
