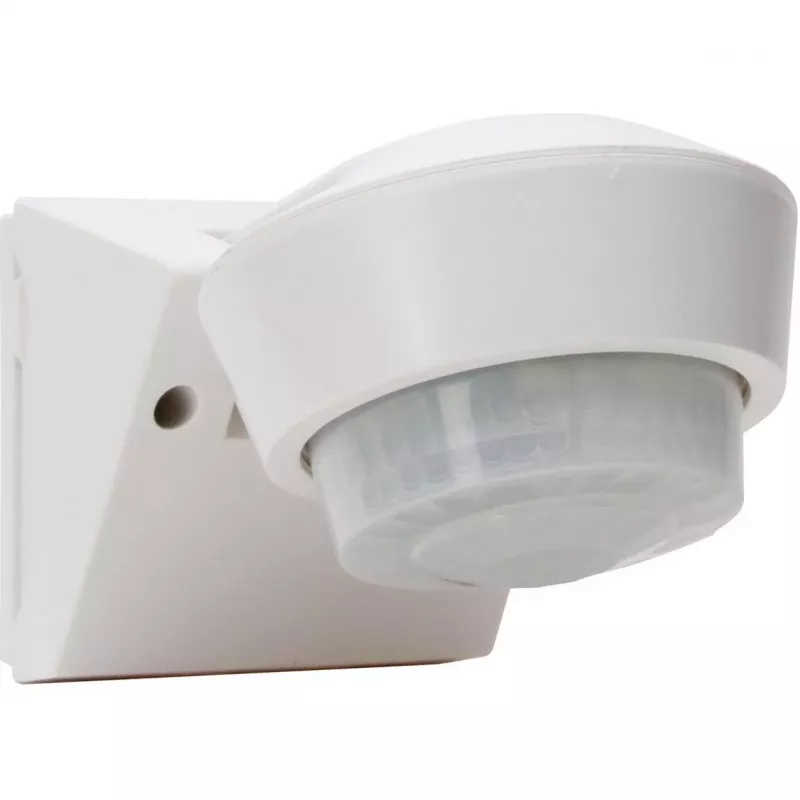

Heinrich Kopp BWM 824602019 ws buiten-bewegingsschakelaar 240° IP55 wit

The Heinrich Kopp BWM 824602019 ws is a robust outdoor motion switch designed for reliable automatic lighting control. With a wide 240° detection angle and IP55 weatherproof rating, it is ideal for gardens, driveways, and building entrances. The passive infrared (PIR) sensor ensures energy-efficient operation by switching lights on only when movement is detected.

Advantages

Energy-saving automatic lighting control; durable UV-stabilized polycarbonate housing; easy wall mounting; adjustable time and twilight settings for customized operation.

Suitable for

• Outdoor areas such as gardens, terraces, and pathways
• Driveways and garage entrances
• Building entrances and courtyards

Key specifications

• Detection angle: 240°
• Detection range: max. 12 m (at 2.5 m mounting height)
• Recommended mounting height: 1.8 - 2.5 m
• IP protection class: IP55
• Colour: White
• Mounting type: Wall mounting
• Switching capacity (incandescent): 2000 W
• Switching capacity (halogen): 1000 W
• Switching capacity (LED): 300 W
• Time setting range: approx. 10 seconds to 15 minutes
• Twilight setting range: approx. 3 to 2000 Lux
• Operating voltage: 230 V AC, 50 Hz
• Sensor technology: Passive Infrared (PIR)
• Housing material: UV-stabilized polycarbonate
• Operating temperature: -20°C to +40°C
• Standby power consumption: < 1 W
• Switching output: Relay

Recommendations

For optimal performance, mount the sensor at a height of 1.8 to 2.5 meters and avoid direct exposure to heat sources or reflective surfaces. Regularly clean the sensor lens to maintain detection range.
