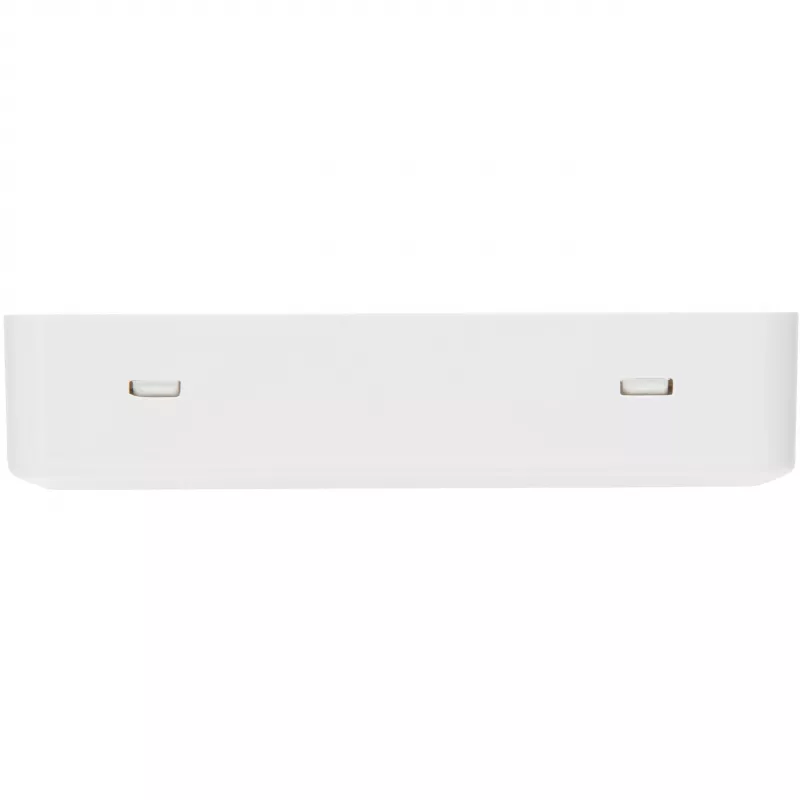

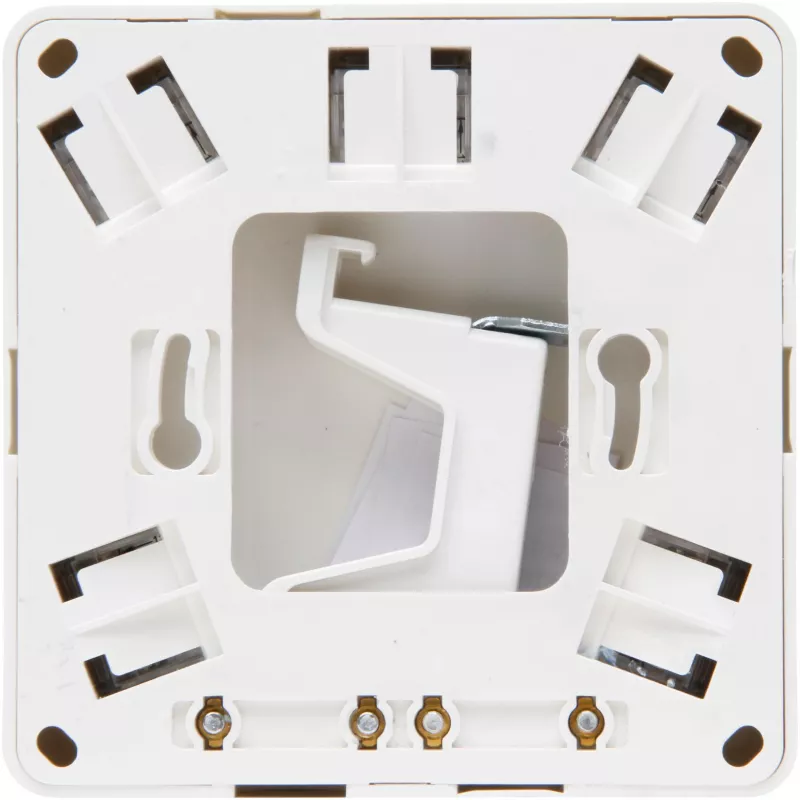

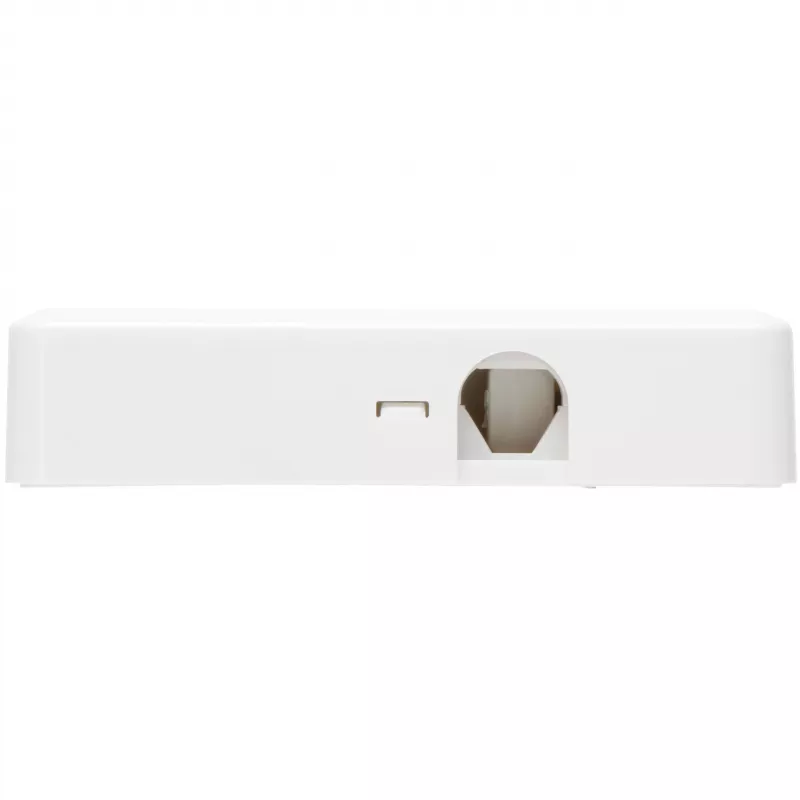

HEINRICH KOPP fornuisaansluitdoos 995929005 opbouw/inbouw zuiver wit

Connecting an electric stove or oven to the mains supply requires a safe, reliable junction point. The HEINRICH KOPP Stove Connection Box 995929005 provides a dedicated connection point for high-power kitchen appliances, ensuring a secure and compliant installation.

Who is it for

Electricians and skilled DIYers installing or replacing electric stoves, ovens, or cooktops in residential or commercial kitchens. This box is suitable for both surface-mounted (AP) and flush-mounted (UP) installations, offering flexibility for different wiring setups.

Main features

• 5-pole connection for three-phase (L1, L2, L3, N, PE) supply
• Rated voltage 400 V AC, current up to 32 A
• Accepts conductor cross-sections from 2.5 mm² to 6 mm²
• Screw terminals for secure, maintenance-free connections
• Snap-on cover for quick access and protection
• Halogen-free thermoplastic housing in pure white (RAL 9010)
• Multiple pre-punched knock-outs for cable entry
• Suitable for surface or flush mounting

Specifications

• Product type: Stove connection box
• Mounting type: Surface-mounted (AP) / Flush-mounted (UP)
• Colour: Pure white (RAL 9010)
• Number of poles: 5
• Rated voltage: 400 V AC
• Rated current: 32 A
• Conductor cross-section: 2.5 mm² to 6 mm²
• Terminal type: Screw terminals
• Material: Thermoplastic, halogen-free
• Protection class: IP20
• Temperature range: -5°C to +40°C
• Glow-wire test: 850°C

Tips

Always isolate the power supply before installation. Ensure the cable entry knock-outs are opened cleanly to maintain the IP20 rating. Use a torque screwdriver to tighten terminals to the manufacturer's recommended torque for reliable connections.
