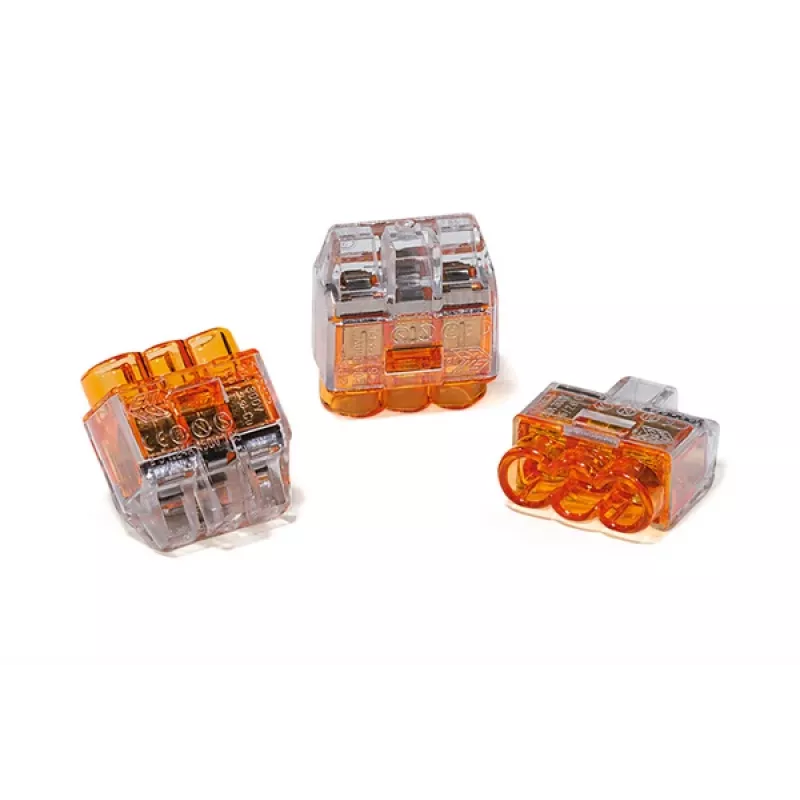

HellermannTyton HCPM-3 steekklem 3-polig transparant 1-2.5 mm² flexibel 0.5-2.5 mm² massief

The HellermannTyton HCPM-3 is a high-quality push-in wire connector designed for fast and reliable electrical connections. With 3 poles, it accommodates flexible conductors from 1 to 2.5 mm² and solid conductors from 0.5 to 2.5 mm², making it ideal for junction boxes, lighting, and control circuits. The transparent polycarbonate housing allows visual inspection of the connection, while the push-in technology ensures tool-free installation. Rated for 450 V and 24 A, it complies with EN 60998 and offers a wide operating temperature range from -30 °C to +105 °C.

Advantages

Tool-free push-in connection saves time and effort. Reusable design reduces waste. Transparent housing enables quick visual check. Compact size fits in tight spaces. High temperature resistance ensures reliability in demanding environments.

Suitable for

• Electrical installations in residential and commercial buildings
• Junction boxes and distribution boards
• Lighting and switchgear connections
• Control cabinets and industrial automation

Key specifications

• Product Type: Wire Connector
• Connector Series: HCPM
• Number of Poles: 3
• Connection Method: Push-in
• Conductor Cross-Section (Flexible): 1 - 2.5 mm²
• Conductor Cross-Section (Solid): 0.5 - 2.5 mm²
• Rated Voltage: 450 V
• Rated Current: 24 A
• Colour: Transparent
• Housing Material: Polycarbonate (PC)
• Operating Temperature: -30 °C to +105 °C
• IP Protection Rating: IP20
• Standards Compliance: EN 60998
• Wire Stripping Length: 9 mm
• Reusability: Reusable
• Flammability Rating: UL94 V-2
• Packaging Quantity: 1 piece

Recommendations

For best results, use with appropriate wire strippers set to 9 mm stripping length. Ensure conductors are fully inserted until they click into place. To release, press the orange push-button and pull the wire out. Suitable for solid and stranded (flexible) wires with ferrules.
