HellermannTyton HelaCon Plus Mini HCPM-2 push-in verbinder, 2-polig, 0,5-2,5mm², transparant/geel, 20-pack 148-90054

The HelaCon Plus Mini HCPM-2 stands out with its compact push-in design, allowing fast and tool-free connection of solid conductors without compromising reliability. Its transparent housing provides immediate visual confirmation that wires are fully inserted, while the yellow lever enables easy release for rework.

Highlights

• 2-pole push-in connector for solid and stranded conductors
• Accepts solid conductors 0.5–2.5 mm² (AWG 20–14) and stranded tinned conductors 1.0–2.5 mm² (AWG 18–14)
• Rated for 450 V and 24 A, suitable for lighting and junction box wiring
• Reusable for solid conductors via integrated release lever
• Compact polycarbonate housing, UL94 V-0 flammability rated

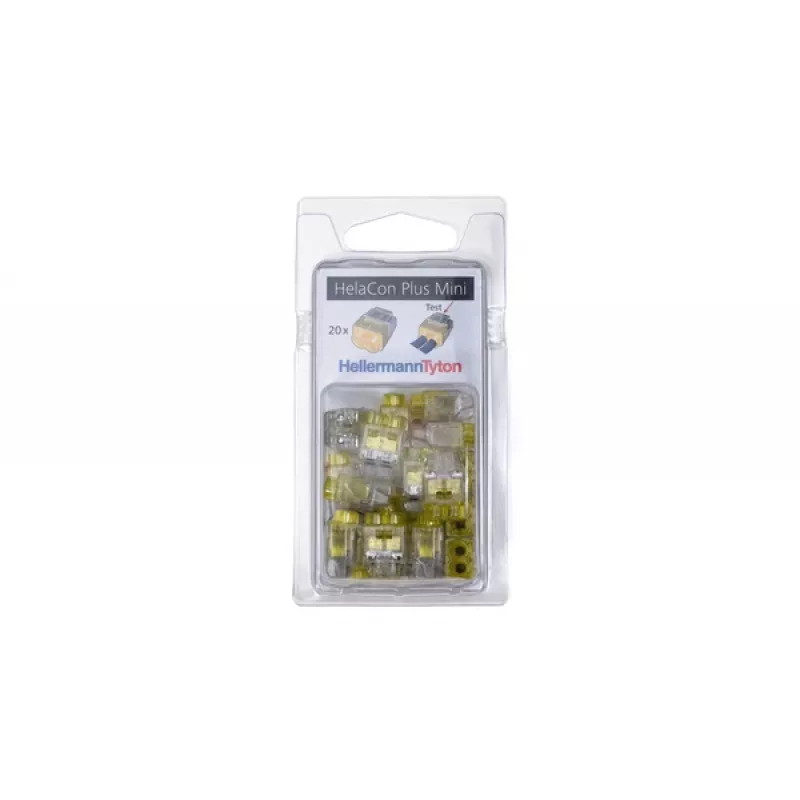

• Supplied in a blister pack of 20 pieces

In daily use

Strip the conductor to 11 mm, insert it fully into the entry, and the stainless steel spring clamp grips it securely. The clear housing lets you check the insertion depth at a glance, reducing installation errors. For maintenance, press the yellow lever with a screwdriver to release the wire. The connector operates from -30 °C to +85 °C, with a maximum continuous service temperature of +105 °C.

Full specifications

• Connector type: Push-in wire connector
• Number of poles: 2
• Conductor cross-section solid: 0.5–2.5 mm² (AWG 20–14)
• Conductor cross-section stranded tinned: 1.0–2.5 mm² (AWG 18–14)
• Rated voltage: 450 V
• Rated current: 24 A
• Housing material: Polycarbonate (PC)
• Contact material: Copper, tinned
• Colour: Clear / Yellow
• Operating temperature: -30 °C to +85 °C
• Max. continuous service temperature: +105 °C
• Flammability rating: UL94 V-0
• Stripping length: 11 mm
• Packaging: Blister pack, 20 pieces
• Reusability: Reusable for solid conductors

Final note

Engineered for dependable, maintenance-friendly connections in confined spaces, the HCPM-2 is a practical choice for electricians who value speed and clarity.
