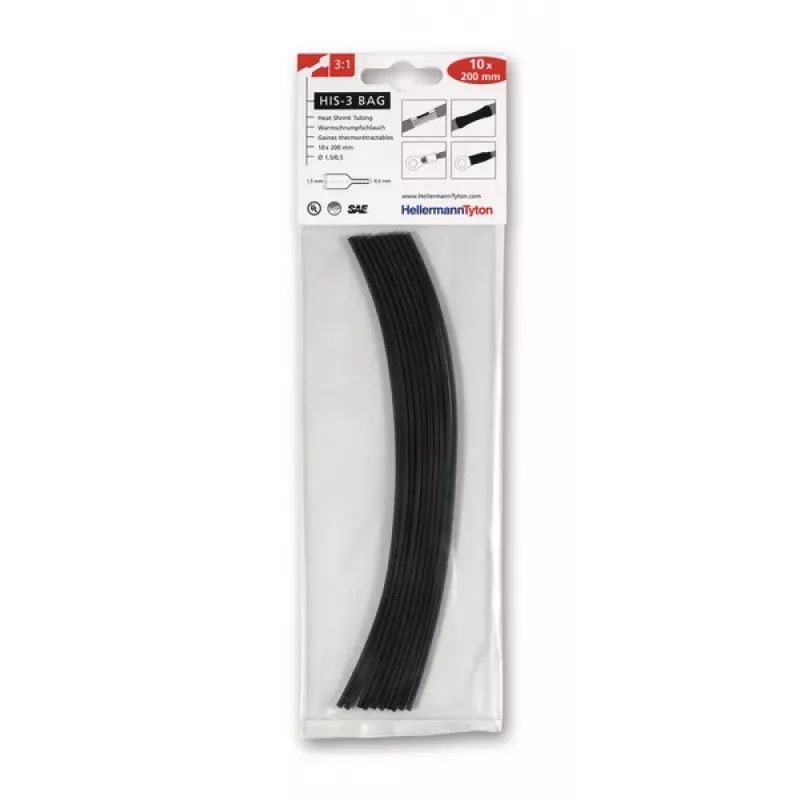

HellermannTyton HIS-3-BAG-1.5/0.5 warmtekrimpkous 3:1, zwart, 1,5mm tot 0,5mm, 20cm, 10 stuks 308-30151

3:1 shrink ratio polyolefin heat shrink tubing with a recovered wall thickness of 0.45mm, ideal for insulation and strain relief in tight spaces.

Overview

The HellermannTyton HIS-3-BAG-1.5/0.5 is a black polyolefin heat shrink tubing with a 3:1 shrink ratio. It shrinks from an inner diameter of 1.5mm to 0.5mm when heated, providing a secure, form-fitting cover over wires, connectors, and splices. Each piece is 20cm long, and the pack contains 10 pieces.

What stands out

• 3:1 shrink ratio for a tight fit over irregular shapes
• Operating temperature range from -55°C to +125°C
• Dielectric strength greater than 20 kV/mm for electrical insulation
• Self-extinguishing and meets UL 224 VW-1 flammability rating

Technical details

• Material: Polyolefin
• Colour: Black
• Inner diameter before shrinking: 1.5mm
• Inner diameter after shrinking: 0.5mm
• Length per piece: 20cm
• Quantity per pack: 10 pieces
• Minimum shrink temperature: +90°C
• Recovered wall thickness: 0.45mm
• Longitudinal shrinkage: max ±5%

Our verdict

A reliable heat shrink tubing for precise insulation and protection in electronics and cable assemblies, with a high shrink ratio and wide temperature tolerance.
