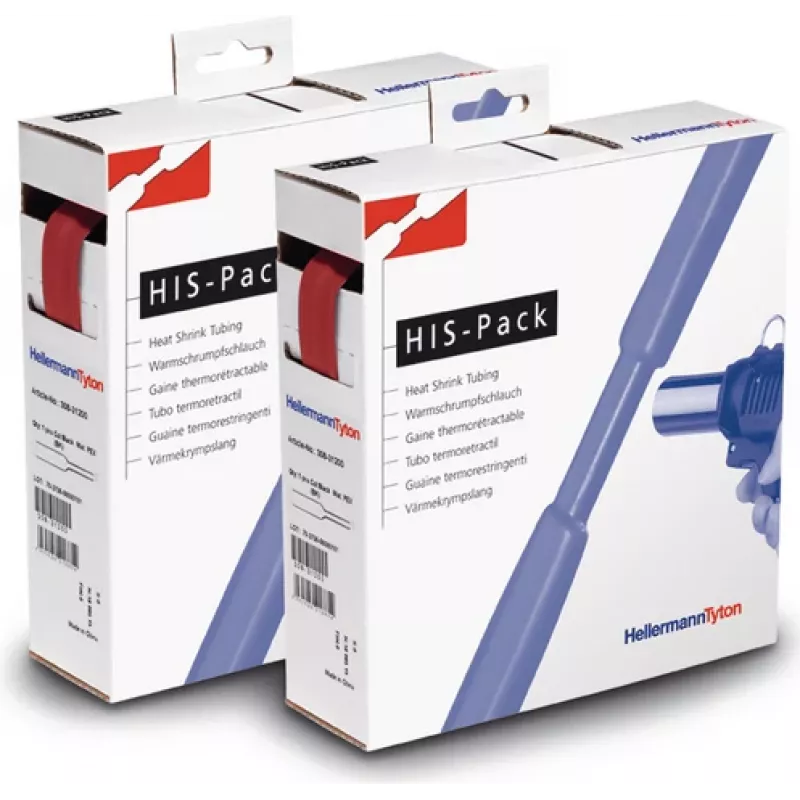

HellermannTyton HIS-PACK-19,1/9,5-RD warmtekrimpkous, 2:1, rood, 19,1 mm expanded, 9,5 mm teruggekrompen, 5 m lengte, dispenserbox

Electrical insulation and cable bundling demand reliable protection against abrasion, moisture, and strain. This red heat shrink tubing from HellermannTyton provides a 2:1 shrink ratio, recovering from an expanded diameter of 19.1 mm to 9.5 mm, ensuring a tight, secure fit over connectors, splices, and wire harnesses. Supplied in a convenient dispenser box with a 5 m length, it offers an efficient solution for workshop and field use.

Who is it for

Electricians, panel builders, and maintenance technicians who need durable, easy-to-apply insulation for electrical connections, cable bundling, and strain relief. The dispenser box keeps the tubing clean and tangle-free, ideal for frequent use.

Main features

• Cross-linked polyolefin material for excellent electrical insulation and mechanical protection.
• 2:1 shrink ratio: 19.1 mm expanded, recovers to 9.5 mm for a snug fit.
• Red colour for easy identification and colour-coding of circuits.
• Thin wall design for flexibility and minimal bulk after shrinking.
• Operating temperature range: -55°C to +125°C, suitable for harsh environments.
• Self-extinguishing (UL224 VW-1) for added safety.
• Good resistance to UV, chemicals, and abrasion.
• Supplied in a dispenser box for convenient storage and dispensing.

Specifications

• Material: Cross-linked polyolefin
• Shrink ratio: 2:1
• Expanded diameter: 19.1 mm
• Recovered diameter: 9.5 mm
• Length: 5 m
• Colour: Red
• Operating temperature range: -55°C to +125°C
• Minimum shrink temperature: +90°C
• Dielectric strength: 20 kV/mm
• Flammability rating: UL224 VW-1 (self-extinguishing)
• Longitudinal shrinkage: max. ±5%
• Tensile strength: 15 MPa
• Water absorption: max. 0.5%
• Wall type: thin wall
• UV resistance: good
• Chemical resistance: good
• Packaging type: dispenser box

Tips

For best results, use a heat gun set to at least 90°C and apply heat evenly around the tubing until it conforms tightly to the substrate. Avoid overheating to prevent discolouration or damage. Store in a cool, dry place away from direct sunlight to maintain material properties.
