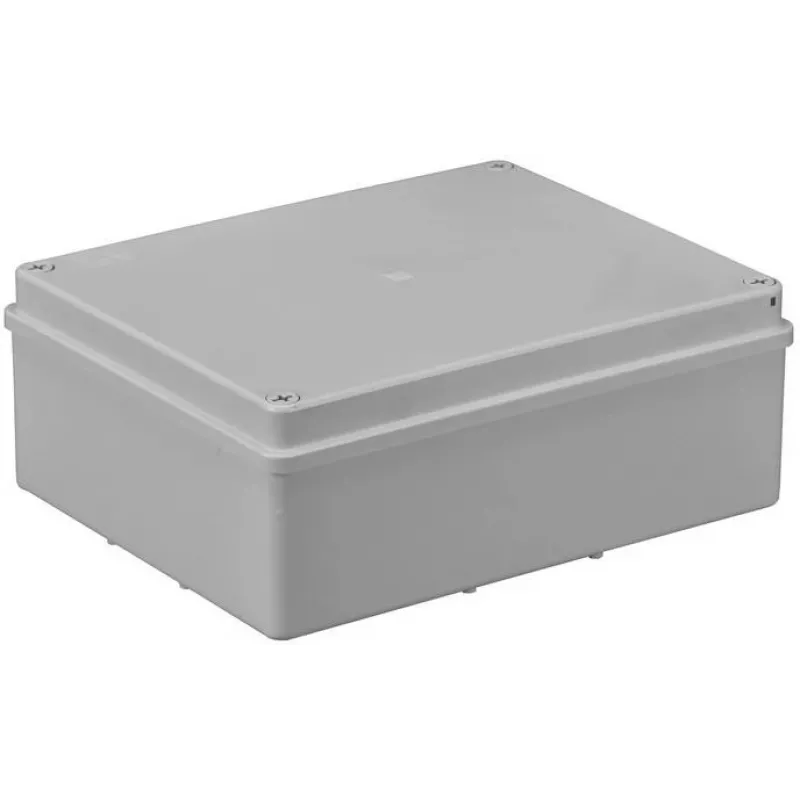

Hermetische aftakdoos 240x190x90mm zonder wartels IP65 PAWBOL S-BOX 516

The PAWBOL S-BOX 516 is a robust hermetic junction box designed for reliable electrical and data connections in demanding environments. With an IP65 rating, it offers complete protection against dust ingress and low-pressure water jets, making it suitable for both indoor and sheltered outdoor installations. The box features a light grey (RAL 7035) ABS enclosure with a solid, opaque screw-on lid secured by four plastic screws. Its smooth walls allow for flexible cable entry options, and internal bosses accommodate mounting plates or DIN rails. This model is halogen-free, UV-resistant for limited outdoor use, and complies with CE and RoHS standards.

Advantages

High ingress protection ensures long-lasting performance in harsh conditions. The durable ABS material provides excellent impact resistance (IK07) and operates reliably across a wide temperature range (-25°C to +60°C). The screw-on lid with four screws guarantees a secure seal, while the smooth wall design offers maximum flexibility for custom cable gland installation. Halogen-free construction enhances safety in case of fire.

Suitable for

• Electrical junction boxes for industrial and commercial wiring
• Data network enclosures for fibre or copper terminations
• Outdoor telecom and security system connections
• Automation and control system housing

Key specifications

• Brand: PAWBOL
• Model: S-BOX 516
• EAN: 5907484330614
• Product Type: Hermetic Junction Box / Electrical Enclosure
• Ingress Protection: IP65
• External Dimensions (L x W x H): 240 x 190 x 90 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Lid Type: Solid, Opaque
• Lid Fastening: Screw-on (Plastic Screws)
• Number of Lid Screws: 4
• Cable Entry: Smooth walls (no pre-drilled holes or glands)
• Impact Resistance: IK07
• Operating Temperature Range: -25°C to +60°C
• Mounting Type: Surface Mountable
• Internal Mounting Options: Bosses for mounting plate/DIN rail
• Halogen-Free: Yes
• UV Resistance: Limited (Suitable for indoor or sheltered outdoor use)
• Flammability Rating: UL94-HB
• Standards Compliance: CE, RoHS

Recommendations

For optimal cable entry, use appropriate cable glands (not included) to maintain IP65 protection. Suitable for surface mounting on walls or panels. Ensure the lid screws are tightened evenly to preserve the seal. This enclosure is ideal for applications requiring a compact, durable, and weather-resistant housing.
