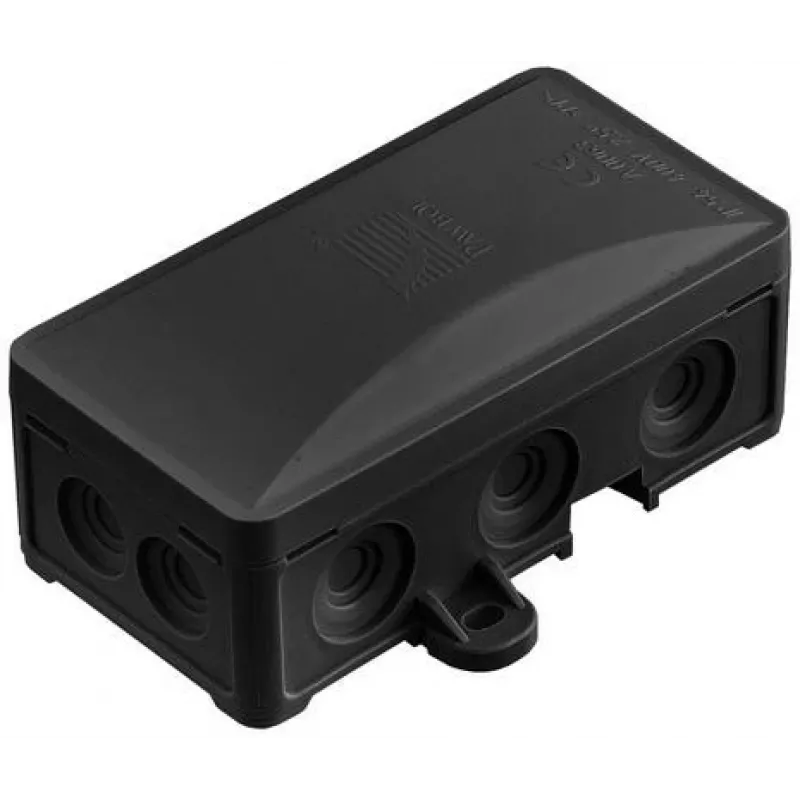

PAWBOL A.0063C opbouw aftakdoos 72x95x40mm IP54 zwart

This surface-mounted junction box from PAWBOL offers a robust IP54-rated enclosure for electrical connections in demanding environments. Its compact 72x95x40mm size and eight membrane cable entries make it ideal for organizing wiring in both residential and commercial installations.

Advantages

The box is constructed from halogen-free, UV-resistant thermoplastic, ensuring long-term durability even when exposed to sunlight. The snap-on lid provides quick access for maintenance, while the IP54 rating protects against dust and water splashes from any direction. With a glow wire test rating of 650°C, it meets strict fire safety standards.

Suitable for

• Outdoor and indoor electrical installations
• Connecting and branching cables in junction boxes
• Use in areas with moderate dust or moisture exposure
• Applications requiring a compact, surface-mounted enclosure

Key specifications

• External dimensions: 72 mm (W) x 95 mm (L) x 40 mm (H)
• IP54 ingress protection
• Material: thermoplastic (polypropylene), halogen-free
• Color: black
• Number of cable entries: 8 (membrane glands)
• Lid type: snap-on
• Rated insulation voltage: 400 V
• Operating temperature range: -25°C to +60°C
• Glow wire test: 650°C
• UV resistant

Recommendations

For best results, ensure cable glands are properly sealed to maintain the IP54 rating. Use appropriate cable sizes and follow local electrical codes during installation. This box is an excellent choice for electricians seeking a reliable, long-lasting junction box for surface mounting.
