Hikvision DS-1272ZJ-120 muurbeugel voor dome-camera's, zwart

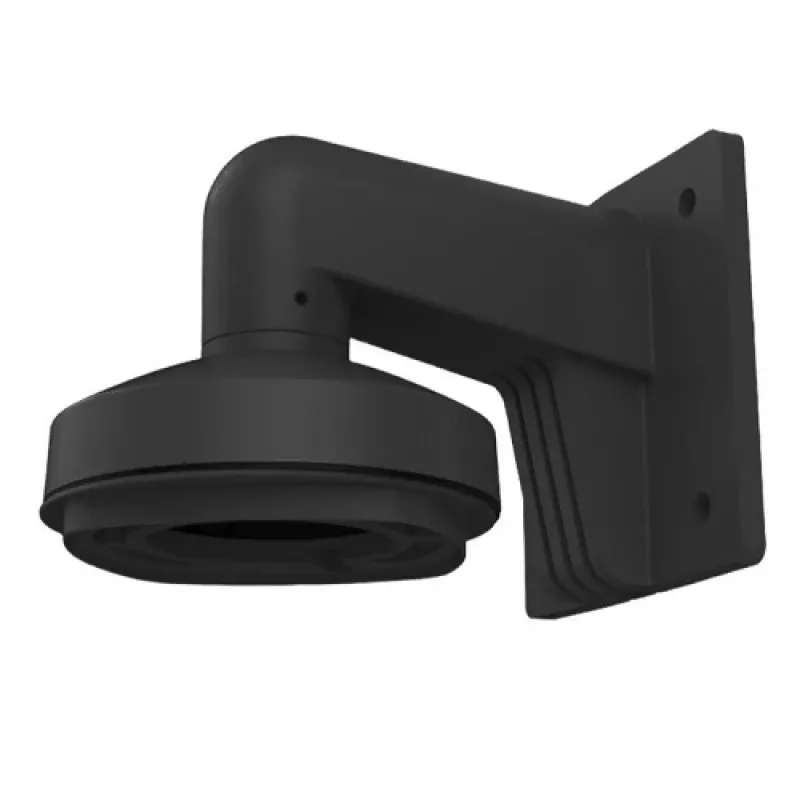

The Hikvision DS-1272ZJ-120 is a robust wall mount bracket designed for Hikvision dome cameras with a 120mm base diameter. Crafted from high-quality aluminum alloy, this bracket ensures durability and reliable performance in both indoor and outdoor environments. Its sleek black finish complements any surveillance setup while providing secure camera installation.

Advantages

This wall mount bracket offers excellent corrosion and weather resistance, making it suitable for challenging outdoor conditions. The internal cable management system keeps wiring organized and protected, ensuring a clean and professional installation. With a maximum load capacity of 4.5 kg, it supports a wide range of dome cameras securely.

Suitable for

• Hikvision dome cameras with 120mm base diameter
• Indoor and outdoor surveillance installations
• Surface mount applications on walls or ceilings

Key specifications

• Mount Type: Wall Mount
• Material: Aluminum Alloy
• Color: Black
• Application Environment: Indoor/Outdoor
• Cable Management: Yes, Internal Routing
• Compatibility: Hikvision Dome Cameras (120mm base diameter)
• Max Load Capacity: 4.5 kg (10 lbs)
• Base Diameter: 120 mm
• Bracket Height: 120 mm
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (Non-condensing)
• Installation: Surface Mount
• Design: Junction Box / Wall Mount
• Corrosion Resistance: Yes
• Weather Resistance: IP66 Equivalent

Recommendations

For optimal performance, ensure the mounting surface is flat and sturdy. Use appropriate screws and anchors for the wall type. This bracket is ideal for professional security system installations where reliability and aesthetics are important.
