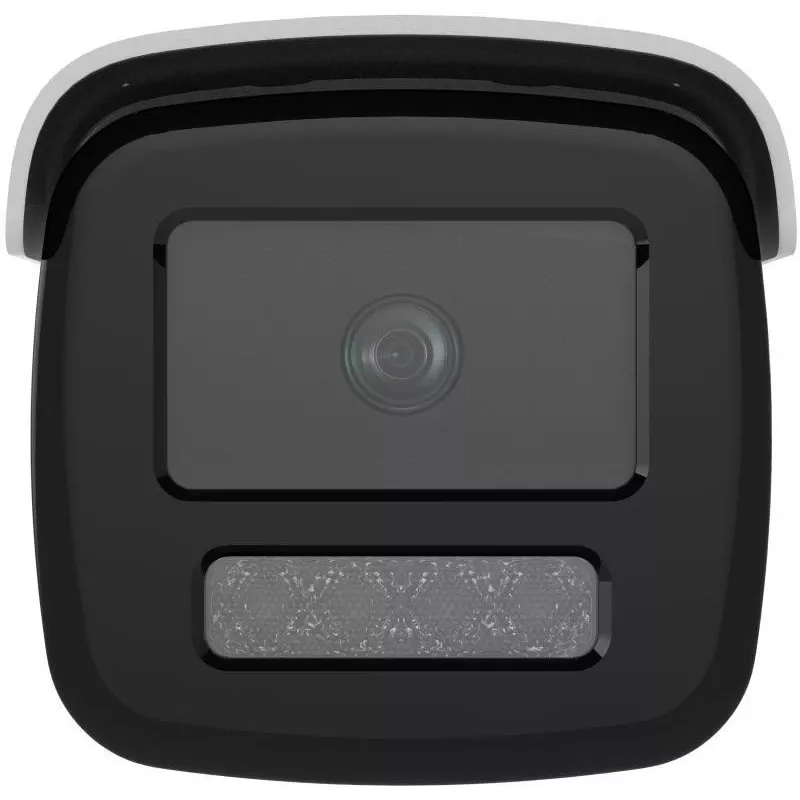

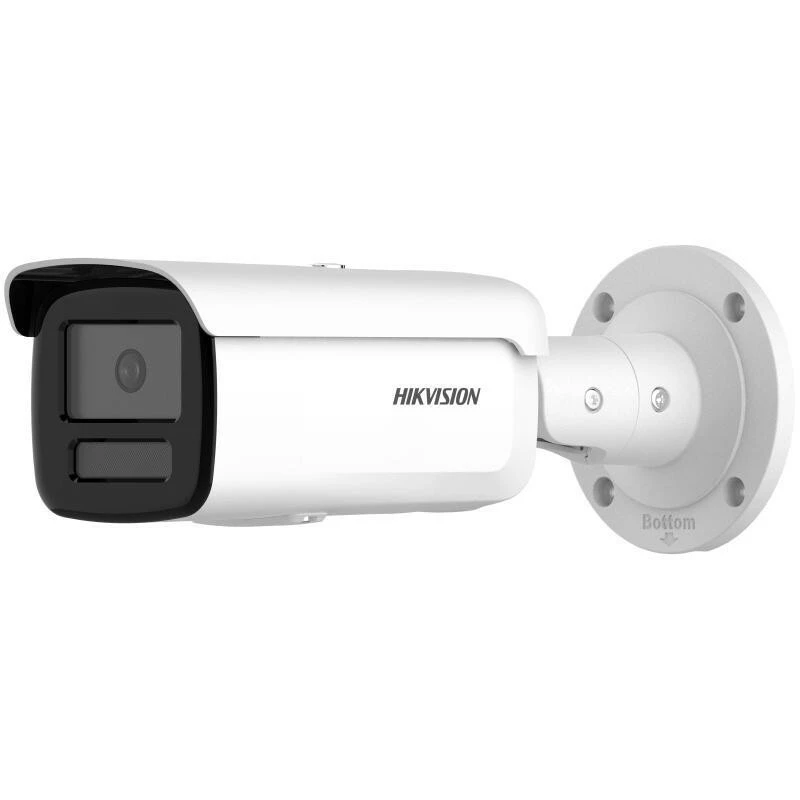

Hikvision DS-2CD2T46G2H-4I(2,8mm)(EF)/PL AcuSense 4 MP IP camera

The Hikvision DS-2CD2T46G2H-4I(2.8mm)(EF)/PL is a high-performance 4 MP IP camera featuring AcuSense technology for accurate human and vehicle target classification. With a 2.8 mm fixed lens and 103° horizontal field of view, it delivers clear and wide-area surveillance. The camera supports H.265+ compression, 120 dB WDR, and up to 80 m IR night vision, making it ideal for outdoor security applications.

Advantages

AcuSense smart detection reduces false alarms by distinguishing humans and vehicles from other motion. The 4 MP resolution provides detailed images, while the IP67 rating ensures reliable operation in harsh weather conditions. Power over Ethernet (PoE) simplifies installation.

Suitable for

• Perimeter security for commercial and residential properties
• Parking lots, warehouses, and retail stores
• Outdoor surveillance requiring high image quality and smart analytics

Key specifications

• 4 Megapixel (2688 × 1520) resolution
• 1/3" Progressive Scan CMOS sensor
• 2.8 mm fixed lens, 103° horizontal FOV
• AcuSense: Human and vehicle target classification
• 120 dB Wide Dynamic Range (WDR)
• H.265+/H.265/H.264+/H.264 video compression
• IR night vision up to 80 m
• Built-in MicroSD/SDHC/SDXC slot, up to 512 GB
• 1x RJ45 10M/100M Ethernet port
• Power: 12 VDC or PoE (802.3af)
• Max. power consumption: 9.5 W (PoE), 8.5 W (12 VDC)
• IP67 ingress protection
• Operating temperature: -30 °C to 60 °C
• Metal housing

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Pair with Hikvision NVR for seamless integration and advanced analytics.
