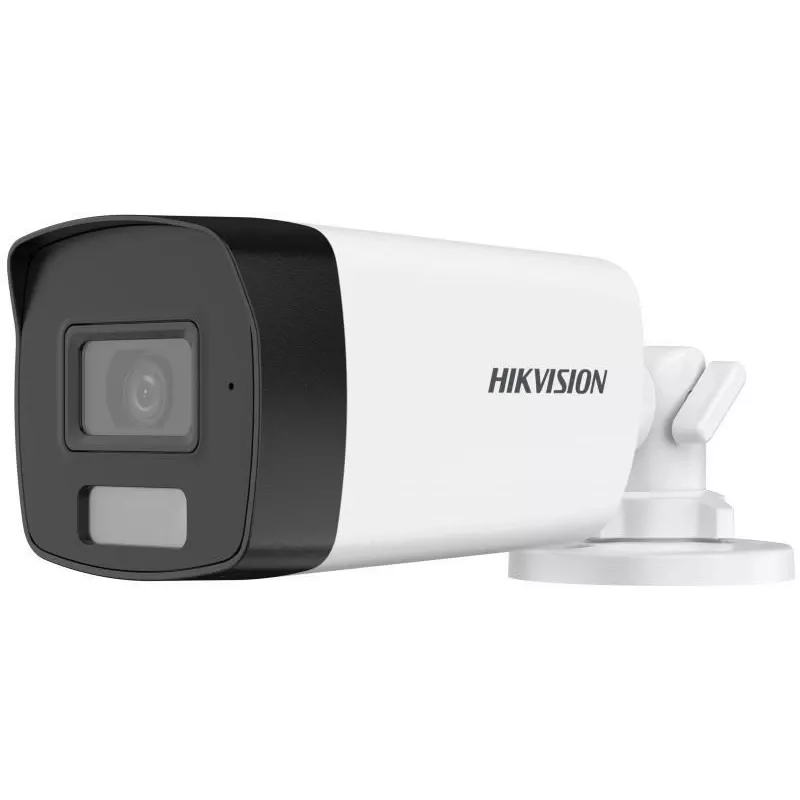

Hikvision DS-2CE17K0T-LFS 2,8 mm 5MP 4-in-1 bulletcamera

The Hikvision DS-2CE17K0T-LFS is a 4-in-1 bullet camera offering 3K resolution (2960 × 1665) and a fixed 2.8 mm lens. It features IR and white light illumination up to 40 m, a built-in microphone, and IP67 protection.

Key features

• 3K CMOS sensor with 2960 × 1665 maximum resolution
• Fixed 2.8 mm lens (also available in 3.6 mm and 6 mm)
• IR range up to 40 m and white light range up to 40 m
• 4-in-1 switchable output: TVI/AHD/CVI/CVBS
• Built-in microphone with audio over coaxial cable
• Smart hybrid light
• IP67 water and dust resistant

Specifications

• Image sensor: 3K CMOS
• Minimum illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day/Night mode: ICR
• Angle adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
• Signal system: PAL/NTSC
• Lens type: Fixed focal 2.8 mm, 3.6 mm and 6 mm
• Focal length and FOV: 2.8 mm: H: 104.9°, V: 67.3°, D: 129.8°; 3.6 mm: H: 81.3°, V: 50.7°, D: 102.4°; 6 mm: H: 51.8°, V: 32.4°, D: 63.1°
• Lens mount: M12
• Microphone: range up to 5 m, quantity 1
• Illuminator type: Smart, IR, white light
• Illuminator range: IR: up to 40 m; White light: up to 40 m
• Image settings: Brightness, sharpness, Smart IR
• Frame rate: TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps; AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps; CVI: 4 MP@25 fps/30 fps; CVBS: PAL/NTSC
• Day/Night mode: Auto/Color
• WDR: Digital WDR
• Image enhancements: DWDR, BLC, HLC, Global
• White balance: Auto/Manual
• AGC: Yes
• Video output: Switchable TVI/AHD/CVI/CVBS
• Housing material: Front cover: Metal; Main body: Plastic
• Dimensions: 216.6 mm × 78.9 mm × 75.4 mm (8.53" × 3.10" × 2.97")
• Weight: Approx. 340 g (0.75 lb.)
• Operating conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity ≤ 90% (non-condensing)
• Communication: HIKVISION-C
• Language: English
• Power: 12 VDC ± 25%
• Power consumption: Max. 4.5 W
• Protection: IP67
