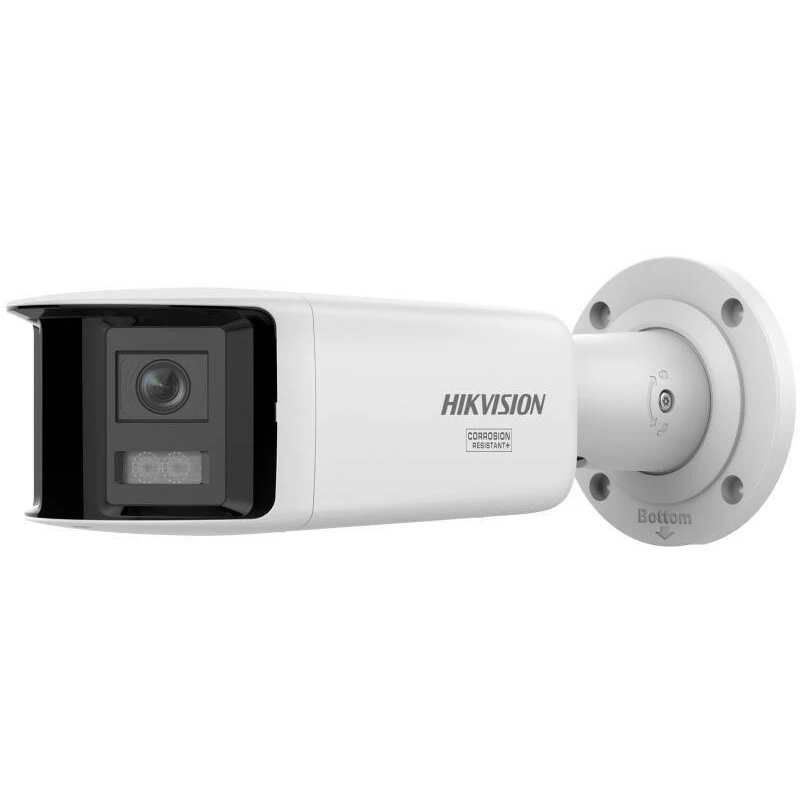

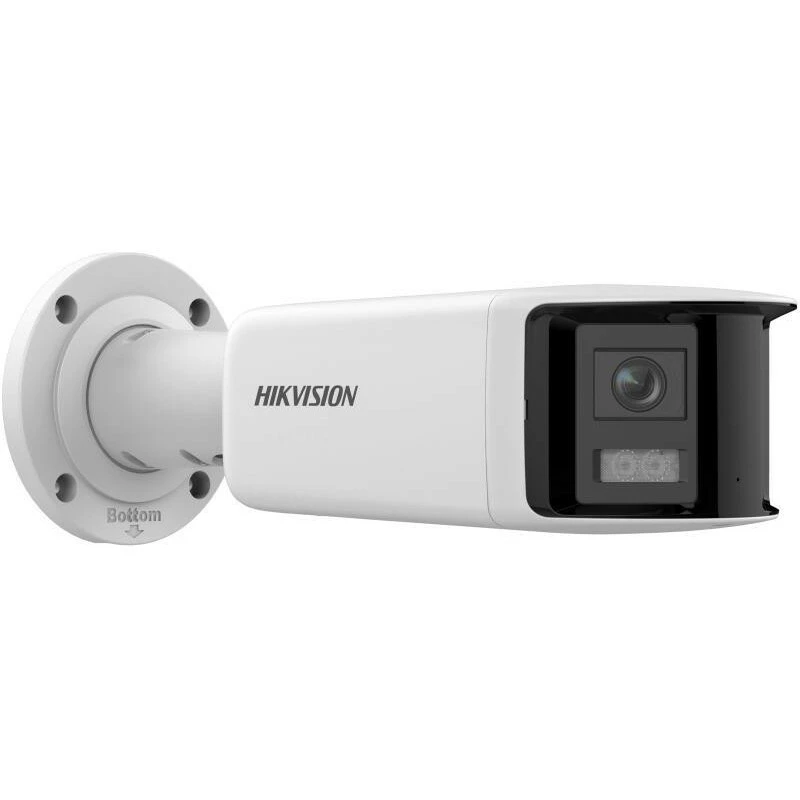

Hikvision DS-2CD2T87G3P-LIS2UY/SL 180° panorama 8MP AcuSense bullet IP-camera

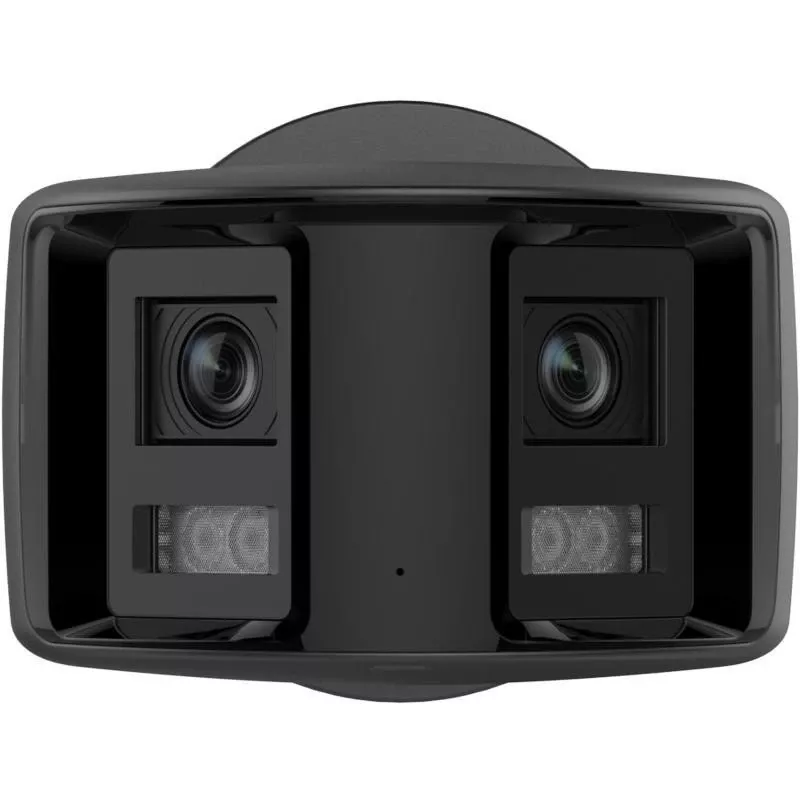

Monitoring wide outdoor areas with a single camera often means compromising on detail or coverage. The Hikvision DS-2CD2T87G3P-LIS2UY/SL solves this by combining dual 2.8mm lenses to capture a seamless 180° panoramic view at 8MP resolution. This bullet camera delivers full-colour imaging around the clock thanks to ColorVu technology and built-in white light, while AcuSense intelligence filters out false alarms by focusing on humans and vehicles.

Who is it for

This camera is ideal for businesses and homeowners who need to secure expansive perimeters, parking lots, warehouses, or building entrances. Its panoramic coverage reduces the number of cameras required, while smart detection ensures security teams receive only relevant alerts. The rugged IP67-rated housing makes it suitable for outdoor installation in all weather conditions.

Main features

• 180° panoramic view with dual 2.8mm lenses and 5120×1440 resolution
• Full-time colour with ColorVu technology and 40m white light range
• AcuSense human and vehicle classification for line crossing and intrusion detection
• 130dB WDR for clear images in challenging lighting
• IP67 weatherproof and -30°C to 60°C operating temperature
• MicroSD card slot up to 256GB for local storage
• Audio and alarm I/O for integration with external devices
• Power over Ethernet (802.3af) or 12VDC

Specifications

• Sensor: 1/1.8" Progressive Scan CMOS
• Max resolution: 5120 × 1440 (8MP)
• Frame rate: 20fps at max resolution
• Minimum illumination: 0.0005 Lux (colour)
• Video compression: H.265+/H.265/H.264+/H.264
• Lens: Dual 2.8mm fixed focal, F1.0
• Field of view: 180° horizontal, 50° vertical
• Network: 1× RJ45 10/100M Ethernet
• Audio I/O: 1 input, 1 output
• Alarm I/O: 1 input, 1 output
• Power: 12VDC or PoE (802.3af), max 11.5W
• Ingress protection: IP67
• Operating temperature: -30°C to 60°C

Tips

Mount the camera at a height of 3–5 metres for optimal panoramic coverage. Use a PoE switch to simplify installation and avoid separate power cabling. For continuous recording, pair with an NVR that supports H.265+ to save storage space. Regularly clean the lens cover to maintain image clarity, especially in dusty environments.
